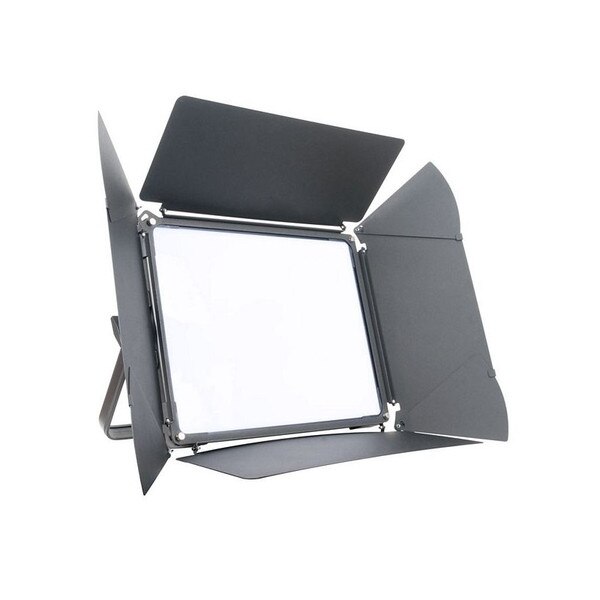

Elation TVL Panel DW

Features:

• Dynamic white 115 beam TVL panel softlight
• Linear white color temperature range (3,200K - 5,800K)
• Smooth 16-bit dimming curve mode effects
• Dimmer and color temperature rotary control dials
• 8-leaf adjustable / removable barndoors included
• Adjustable LED refresh rate and gamma brightness
• Flicker-free operation for TV and film

Specifications:

• Source:

  • (480) cool white and (480) warm white LEDs
  • Average LED Life*: 20,000 hr

• Photometric Data:

  • >95CRI | 13,000 Total Lumens
  • 1,117 LUX 104 FC @6.6' (2m) Full ON 4,200K >95CRI
  • 1,105 LUX 103 FC @6.6' (2m) CW 5800K >95CRI
  • 1,076 LUX 100 FC @6.6' (2m) WW 3200K >97CRI

• Color:

  • Cool white / warm white

• Effect:

  • 3,200K - 5,800K linear variable white color temperature control
  • Electronic strobe and variable dimming curve modes
• Control / Connections:
  • 6 DMX channel modes (7 total channels)
  • 4 button control panel
  • 2 rotary control dials (dimmer and color temperature)
  • Adjustable refresh rate (900-25,000 Hz)
  • Adjustable gamma brightness (2.0-2.8)
  • 180 degrees reversible LCD menu display
  • 5-pin DMX In/Out
  • RJ45 EtherCON (Art-NET) In
  • PowerCON TURE1 Power In

• Physical:

  • Dimensions: 26.3" x 12.7" x 27.2" (668mm x 321.4mm x 691.2mm)
  • Weight: 28.0 lbs (12.7kg) (with barndoors attached)

• Electrical / Thermal:

  • Maximum Power Consumption: 194W
  • 5 degrees F to 113 degrees F

• Approvals / Rating:

  • CE
  • cETLus
  • IP20

*May vary depending on several factors including but not limited to: environmental conditions, power / voltage, usage patterns (On-Off cycling), control, and dimming.
