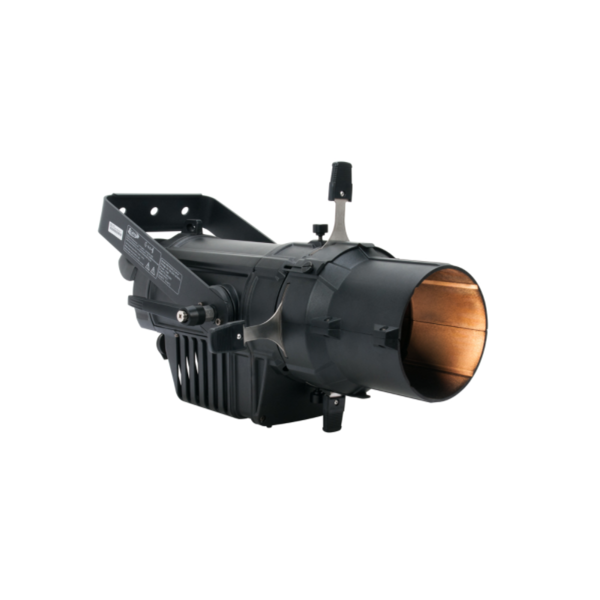

Elation WW Profile HP IP (No Lens)
Details
The IP65 rated WW Profile HP IP ellipsoidal features a High Power 130W Warm White >91CRI 3,000K LED engine producing 10,000+ total lumens,19,26,and 50 interchangeable lens options (sold separately), (4) blade manual framing shutters, supports B size metal gobos (gobo holder not included) and an optional IP65 rated DMX controlled dual gobo rotator (sold separately), manual focus, DMX controlled electronic strobe, 16bit dimming and selectable dimming curve modes, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, IP rated 5pin DMX and powerCON TRUE1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
Features:
- IP65 Rated High Power Ellipsoidal
- 130W Warm White 3,000K LED Engine
- >91CRI and 10,000+ Total Lumens Output
- 19,26,36,50 Lens Options (sold separately)
- Supports B Size Metal Gobos (gobo holder not included)
- IP65 DMX Controlled Dual Gobo Rotator (sold separately)
- (4) Blade Manual Framing Shutters
- DMX Controlled Electronic Strobe and 16bit Dimming Selectable Selectable Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Adjustable Refresh Frequency and Gamma Brightness
- Quiet Fan Cooling
Specifications:
SOURCE
- High Power 130W Warm White LED Engine
- 50,000 Hour Average LED Life*
- LED Life may vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- >91CRI | 10,000+ Total Lumens
EFFECTS
- Electronic Strobe and 16bit Dimming
- Selectable Dimming Curve Modes
GOBOS
- Supports Size Metal Gobos (gobo holder not included)
- IP65 Rated DMX Controlled Dual Gobo Rotator (sold separately)
CONTROL/CONNECTIONS
- 3 DMX Channel Modes (3 / 6 / 8)
- Adjustable Refresh Rates
- Adjustable Gamma Brightness
- 4 Button Control Panel / LED Menu Display
- IP Rated 5pin DMX In/Out / powerCON TRUE1 In/Out
SIZE/WEIGHT
- Dimensions: 29.6 x13.9"x18.9" (753x353x480 mm)
- Weight: 24 lbs. (11kg)
ELECTRICAL/THERMAL
- Quiet Fan Cooling
- AC 100-240V - 50/60Hz
- 170W Max Power Consumption
APPROVALS/RATINGS
- CE | cETLus | IP65
