  • Electro-Voice Cardioid Pattern Hanging Microphone With HPF - White

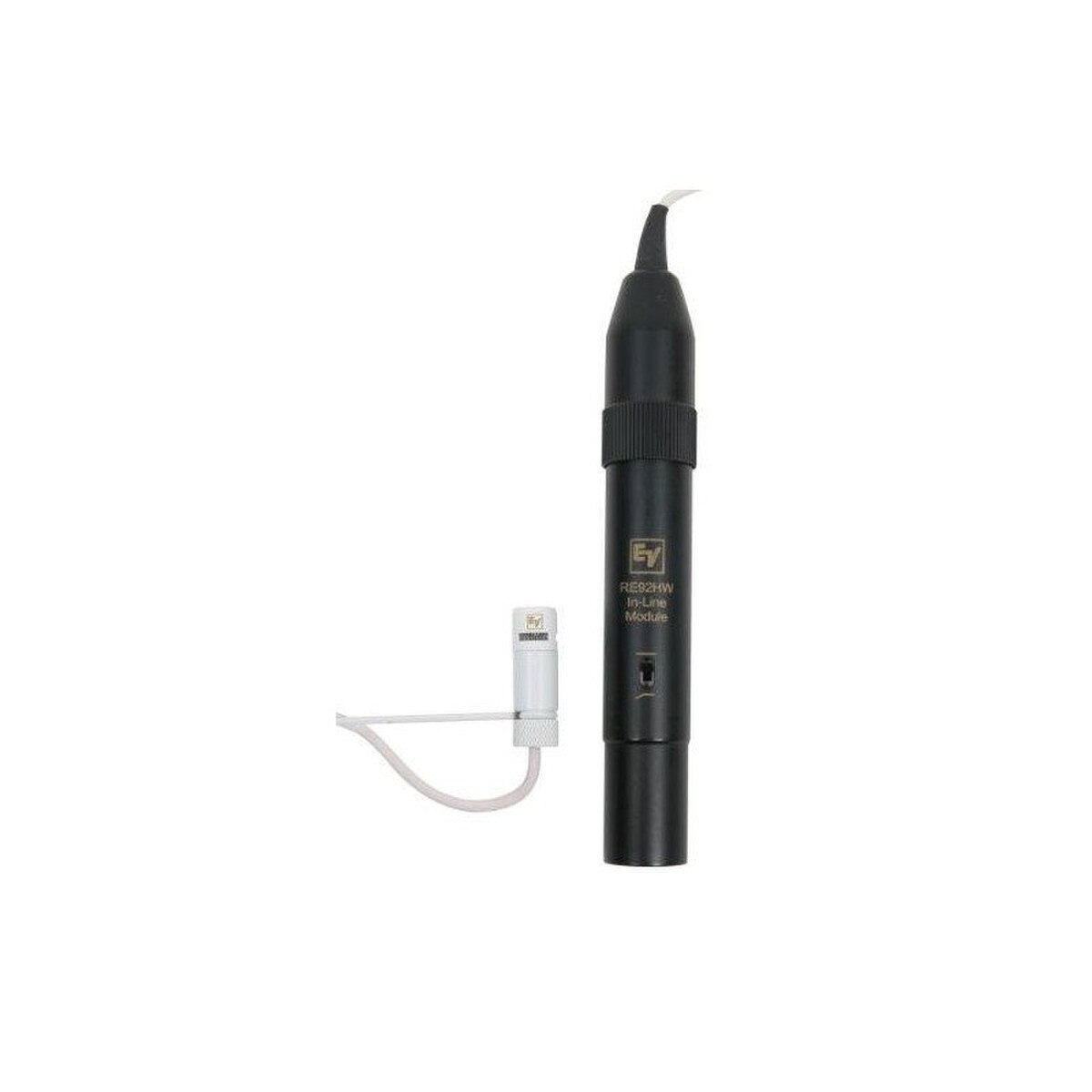

Electro-Voice Cardioid Pattern Hanging Microphone With HPF - White

(0)No Reviews yet
$418.00
SKU: Electro-Voice RE92HW

Details

Designed specifically for applications where the condenser microphone needs to be suspended from above the sound source. The RE92H is ideal for theater, house of worship, or any application where a small high-quality mic needs to be "heard but not seen." Also available in black (RE92H).

Features:

  • Hanging installation microphone
  • Wide smooth frequency response
  • Cardioid polar pattern
  • In-line electronics module
  • 12 dB/octave switchable high pass filter
  • Transformerless differential output to drive long cables

Specifications:

  • Case Material: Metal
  • Connector Type: 3-pin XLR
  • Current Consumption: 6 mA
  • Diameter (Max): 32 mm (1.26")
  • Element: Condenser (back-electret)
  • Finish: Non-reflective black or white
  • Frequency Response: 40 - 20,000 Hz
  • Impedance, Low-Z balanced: 250 Ω
  • Maximum SPL (1% THD): 135 dB
  • Mic Type: Hanging
  • Open Circuit Voltage: 5.6 mV/Pascal
  • Polar Pattern: Cardioid
  • Power Requirement: 24 - 52 V Phantom
  • Specials: external pre-amp
  • Wired/Wireless: Wired
  • Height: 10.5 mm (0.41")
  • Weight Net: 8.47 oz (240 g)

Electro-Voice_Microphone_Catalog_91167.pdf
Data_Sheet_91196_File_1.pdf
