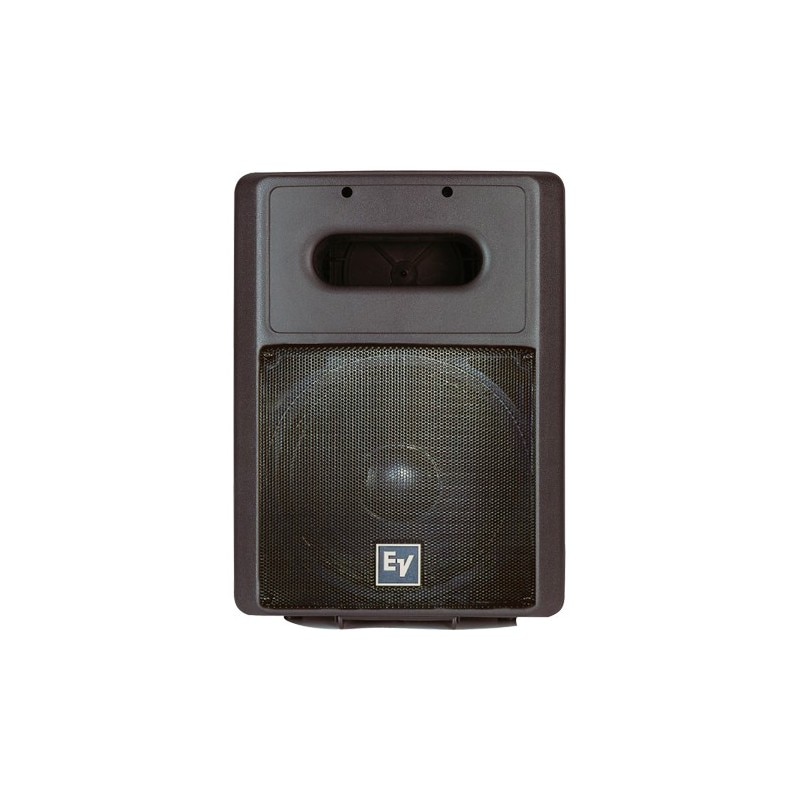

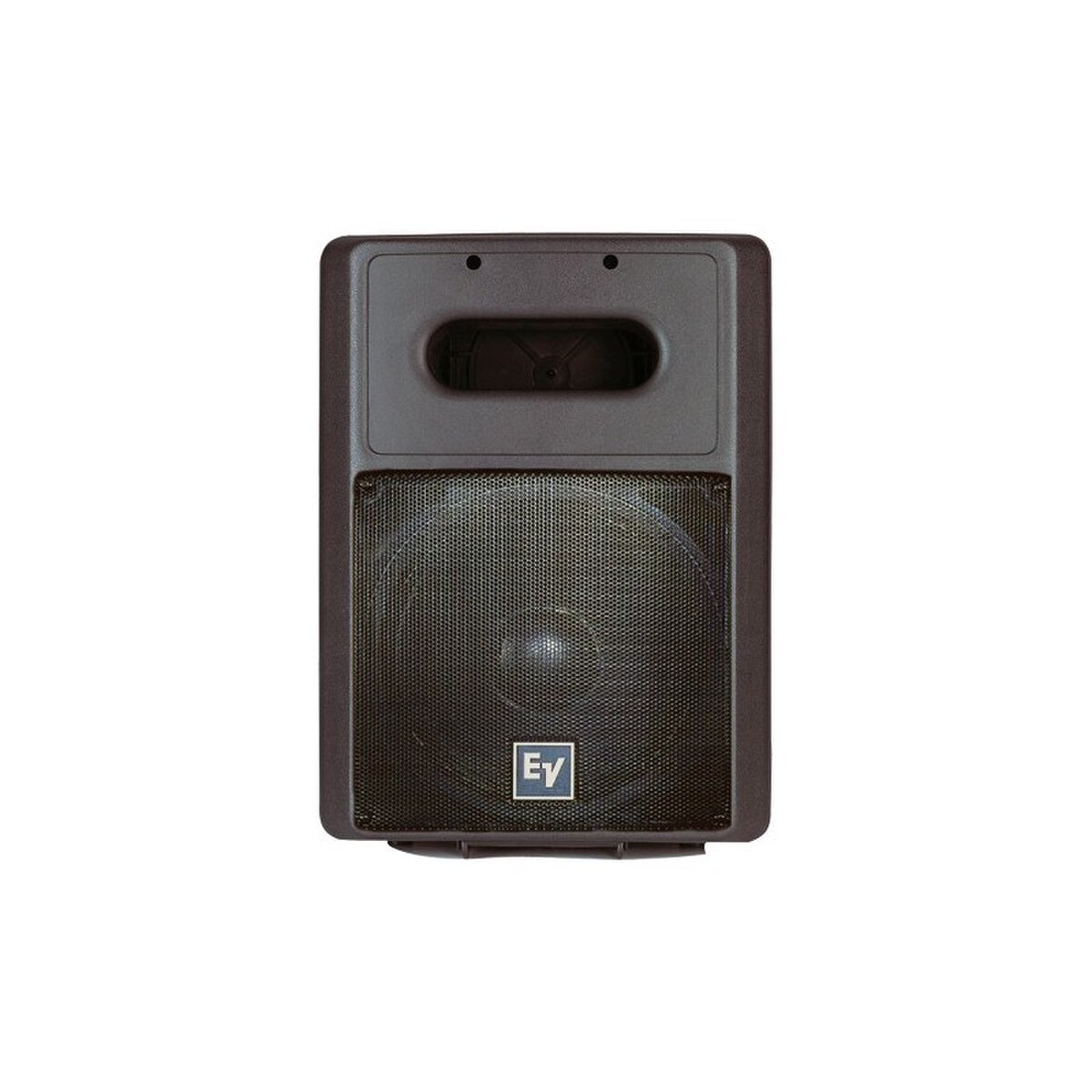

Electro-Voice Compact Subwoofer - 12in. - 400W
Details
SB122 is quite possibly the smallest, most powerful subwoofer on the planet. Packing 400-watt continuous power handling (1600-watt peak) into a 33 lb (15 kg) package, the SB122 incredible performance for its size.
Features:
- Sb122 performance with enhanced weather-resistance
- Low-pass filter for parallel connection without added amp
- Large vent for enhanced LF output
- Cast-frame EVS12SB long-excursion woofer
- Power handling: 400 W continuous, 1600 W peak
- Parallel Neutrik Speakon high current input connectors
- Strong, composite trapezoidal enclosure
- Pole mount on top for pairing with Zx1
- Integral handle
- Available in black
Specifications:
- Axial Sensitivity (SPL, 1 W @ 1 m): 99 dB Half Space
- Chassis Size: 304.8 mm (12")
- Color: Black
- Coverage (Nominal -6 dB): Essentially Omni
- Input Connections: 2 four-pin Speakon
- Nominal Impedance: 8 Ω
- Speaker Type: Subs
- Frequency Response (-10 dB): 43 - 200 Hz
- Internal Crossover: Yes
- Recommended High-Pass Frequency: 40 Hz 12 dB/octave
- Sensitivity 1 W/1 m: 99 dB
- Max. SPL/1m (calc): 131 dB Half Space
- System Power Handling (Continuous/Program/Peak): 400//1600 Watts
- LF Transducer: 12" EVS12SB
- Crossover Frequency: 160 Hz
- Minimum Impedance: 6 Ω
- Flying: Optional
- Height: 586 mm (23.07")
- Width: 429 mm (16.89")
- Depth: 312 mm (12.28")
- Weight Net: 14.6 kg (32.19 lbs)
Data_Sheet_91381_File_1.pdf
