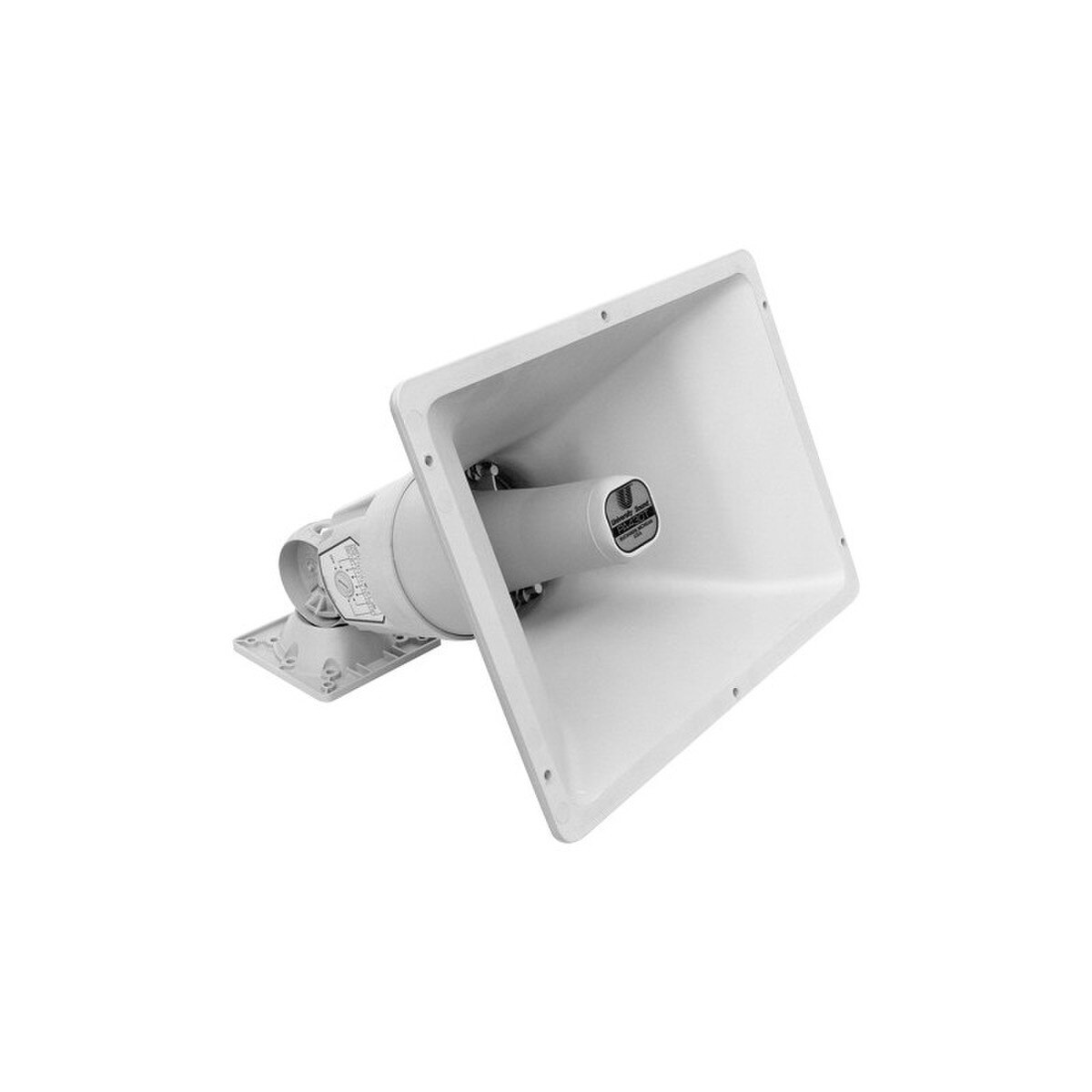

Electro-Voice Constant-Directivity Paging Projector - 30W - With Transformer

The weather-resistant PA430 series features a 60 degree x 40 degree dispersion pattern, and an integral swivel bracket. The PA430 is available in either a eight-ohm version (PA430) or a 30-watt, 70/100-volt version (PA430T).

The transformer model (PA430T) includes connections for 25V, 70.7V, and 100V distributed systems and a screwdriver-operated power tap select switch.

Specifications:

• Frequency Response: 400-6,500 Hz ±5 dB
• Power Handling, 8 Hours, 6 dB Crest Factor: 30 watts (500-5,000 Hz pink noise)
• Impedance:
• Nominal: 8 ohms
• Minimum, Above 500 Hz: 6.5 ohms (650 Hz)
• Sound Pressure Level at 1 Meter, 1 Watt Input Averaged, Pink
• Noise Band-Limited from 500 to 5,000 Hz: 107 dB
• Beamwidth: -6 dB @ 1.0 kHz to 10 kHz
• Horizontal Beamwidth: 60° (+20°, -20°)
• Vertical Beamwidth: 40° (+20°, -10°)
• Directivity Factor R√é¬âˆ� (Q): 15.2 @ 2 kHz
• Usable Low-Frequency Limit: 350 Hz
• Construction: High impact acrylic-styrene-acrylonitrile (ASA) with ultraviolet light inhibiting mesa tan finish. Positive-lock super tough nylon swivel base and rear housing.
• Voice-Coil Diameter: 3.81 cm (1.5")
• Magnet Weight: 0.28 kg (0.63 lb)
• Magnet Material: Strontium ferrite
• Flux Density: 1.30 Tesla
• Height: 22.6 cm (8.9")
• Width: 30.7 cm (12.1")
• Depth: 35.8 cm (14.1")
• Net Weight: 1.7 kg (3.8 lb)
• Shipping Weight: 2.1 kg (4.6 lb)
