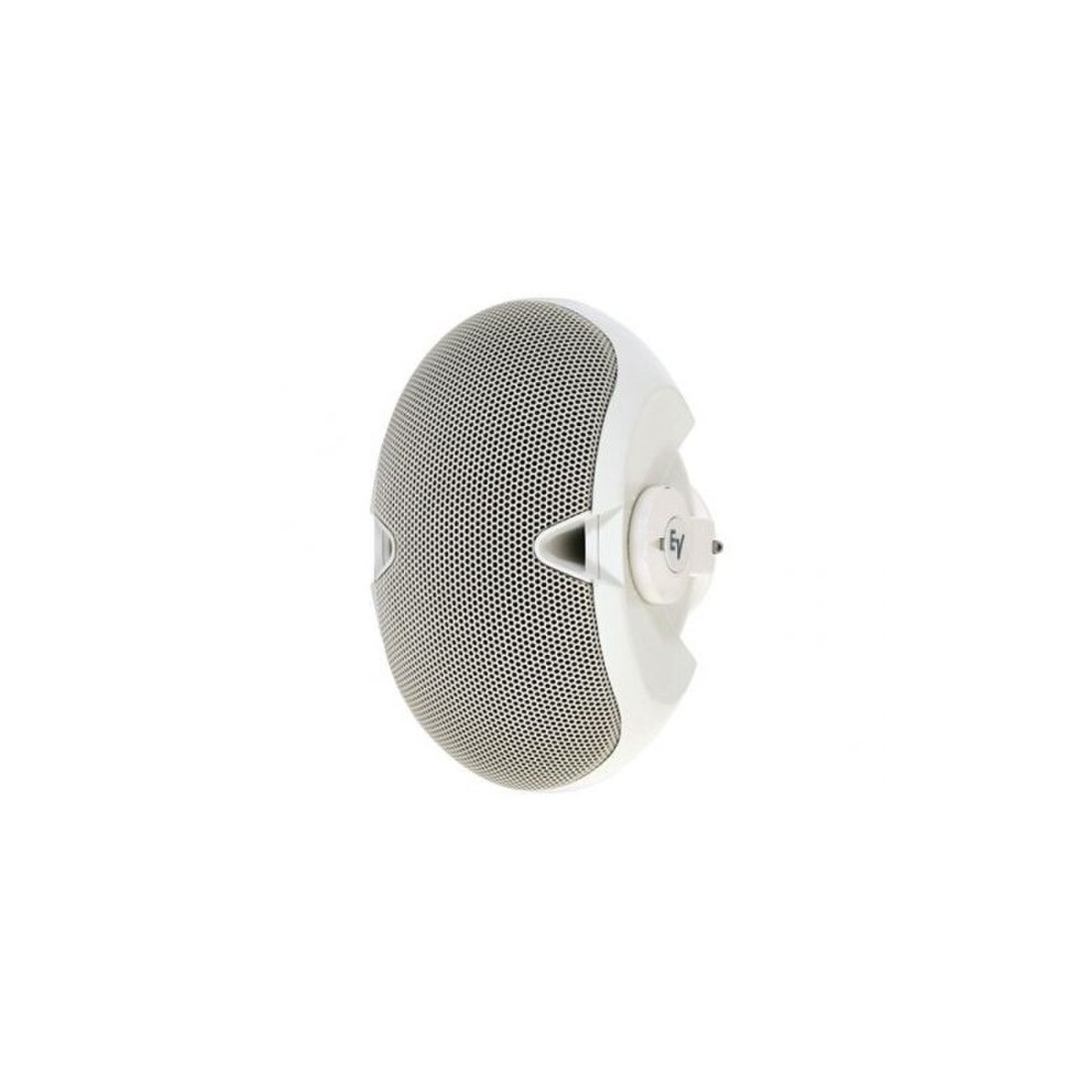

Electro-Voice Dual 6in. Two-Way Surface-Mount Loudspeaker - With Transformer - White Cabinet

The EVID 6.2 is an extended-range loudspeaker ideal for indoor and outdoor applications requiring high-quality sound. Its extended range and smooth bass provide ample SPL levels in larger environments such as shopping malls, sports bars, health clubs, and so on.

Features:

• Compact full range
• Ideal for shopping malls, sports bars, and health clubs
• Vented LF enclosure
• 1" titanium diaphragm HF driver with neodymium magnetic structure
• Coherent Coverage Waveguide
• Full-bandwidth overload protection (LF and HF)
• Elliptical weather-resistant ABS enclosure
• Paintable black or white finish
• Magnetically shielded for video applications
• Strong-Arm Mount for easy, flexible aiming
• "T" version for 70 or 100 V distributed systems

Specifications:

• Chassis Size: 152.4 mm (6")
• Color: Black, White
• Input Connections: Spring Terminal
• Speaker Type: Full-range, Mid-High, Two-Way
• Transformer Taps (Transformer Version Only): 70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass
• Frequency Response (-10 dB): 62 - 20000 Hz
• Internal Crossover: Yes
• Sensitivity 1 W/1 m: 94 dB
• Max. SPL/1m (calc): 122 dB
• Coverage (Nominal -6 dB) H: 100 degrees
• Coverage (Nominal -6 dB) V: 80 degrees
• System Power Handling (Continuous/Program/Peak): 150 / 600 Watts
• LF Transducer: Two 6"
• LF Power Handling: Two 6" Watts
• HF Power Handling: 1" Watts
• HF Transducer: 1"
• Nominal Impedance (Passive): 8 Ω
• Minimum Impedance: 6 Ω
• Outdoor: Yes
• Height: 419 mm (16.5")
• Width: 228 mm (8.98")
• Depth: 298 mm (11.73")
