Electro-Voice Dynamic Microphone for HT-300
Details

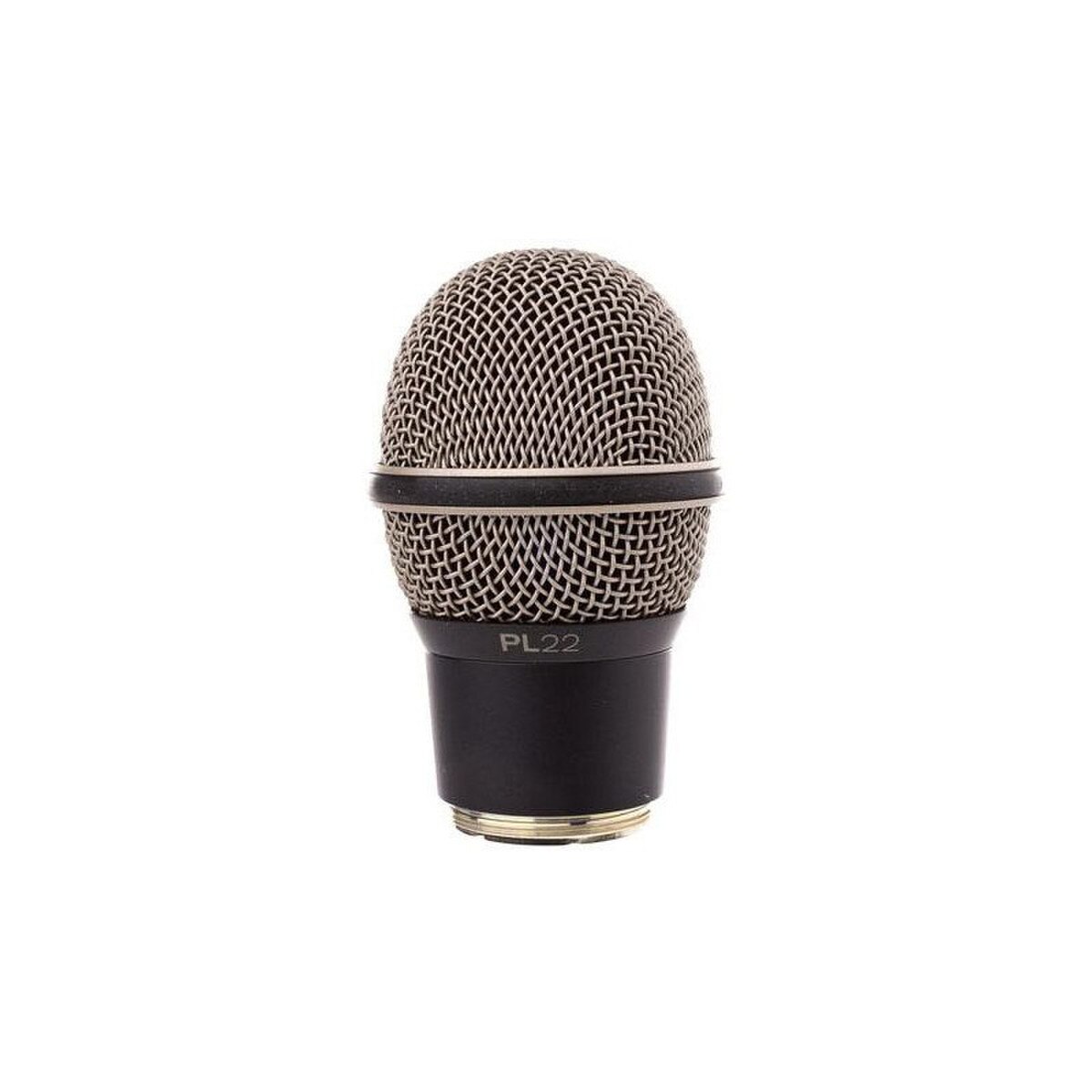

The RCC-PL22 is the stock removable microphone head of the HT-300 handheld transmitter, found in the R300-HD wireless system. The RCC-PL22 contains the PL22 microphone capsule, as well as the threaded mounting ring assembly for adapting it to the handheld transmitter body.
A great solution for singing or voice presentation, the PL22 head effectively enhances voice intelligibility, and its cardioid polar pattern helps reduce sound system feedback potential when used properly.
Specifications:
Data_Sheet_91304_File_1.pdf
A great solution for singing or voice presentation, the PL22 head effectively enhances voice intelligibility, and its cardioid polar pattern helps reduce sound system feedback potential when used properly.
Specifications:
- Generating Element: Dynamic
- Magnet Type: Neodymium
- Frequency Response: 80 -12,000 Hz
- Polar Pattern: Cardioid
- Impedance: 600 ohms
- Sensitivity, Open Circuit Voltage, 1 kHz: 3.2 mV/pascal
- Length: 84.5 mm (3.33")
- Width (widest): 53.2 mm (2.1")
- Width (narrowest): 34.7 mm (1.37")
- Finish: Semi-Gloss Black
- Net Weight: 122 g
- Shipping Weight: 140 g
