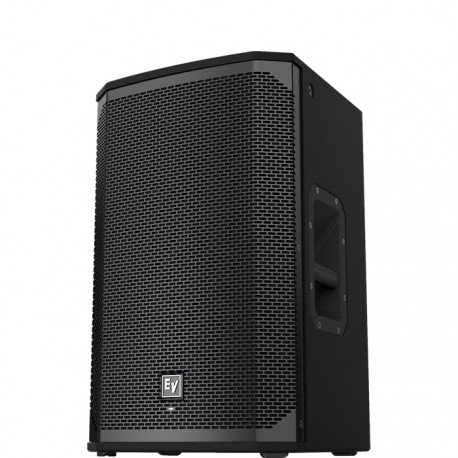

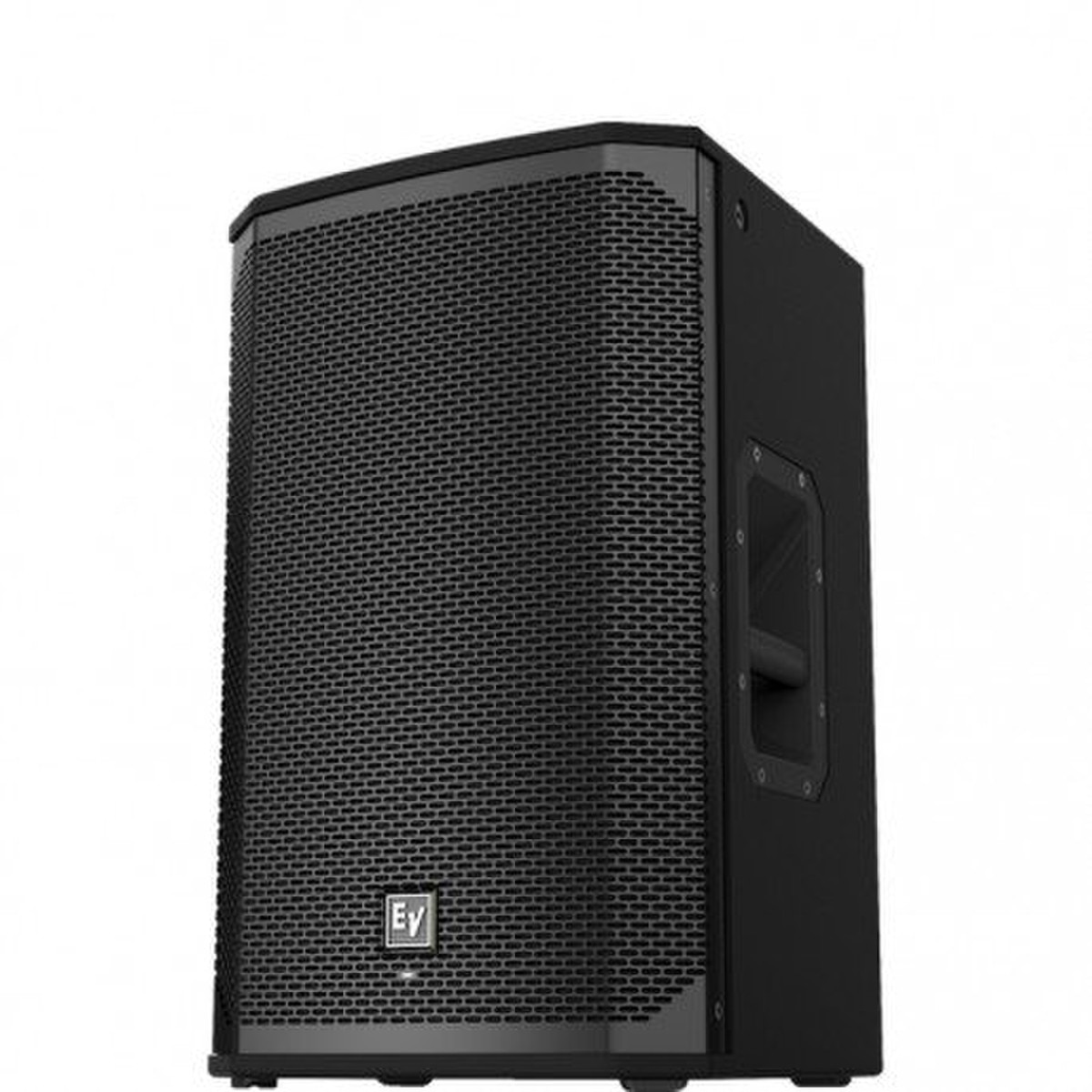

Electro-Voice EKX-12 Passive 12" 2-Way Speaker

The EKX series combines EV sound quality and reliability with the latest technology, in a compact package that is suitable for a wide range of scenarios and performers, including musicians, DJs, installations and other sound applications. The EKX-12 features a 12" LF driver and a 1" titanium compression driver.

EV-engineered components and EV' patented Signal Synchronized Transducers (SST) waveguide design combine to provide precise coverage and superior sound quality at high SPLs. EV's award-winning industrial design ” with robust wood enclosures and durable EVCoat finish ” ensures that EKX speakers look as great as they sound. EKX-12 delivers up to 131 dB SPL utilizing high-sensitivity transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1M 1-inch titanium compression driver).

EKX passive models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures with internal bracing, durable EVCoat finish, eight (8) M10 threaded mounting points, aluminum pole-mounts, and all-metal handles.

Features:

• Speaker configuration
  • Active/passive: Passive
  • Type: 2-Way full range
  • LF driver: 12"
  • MF driver: Not applicable
  • HF driver: 1"
• Power capacity (passive)
  • 8 Ohms program/peak: Not applicable
  • 4 Ohms program/peak: Not applicable
  • Included power amp: No
• Audio
  • Frequency response: 55Hz - 20kHz
  • Coverage pattern: 90 x 60
  • Max SPL: 131 dB
• Enclosure
  • Construction: 15mm plywood
  • Width: 14.75"
  • Height: 23.9"
  • Depth: 14.0"
  • Weight: 38.4 lb.
• Inputs
  • XLR/TRS Combo: Not applicable
  • XLR: Not applicable
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1
• Output/thru
  • XLR: Not applicable
  • TRS: Not applicable
  • RCA: Not applicable
  • SPEAKON: 1
