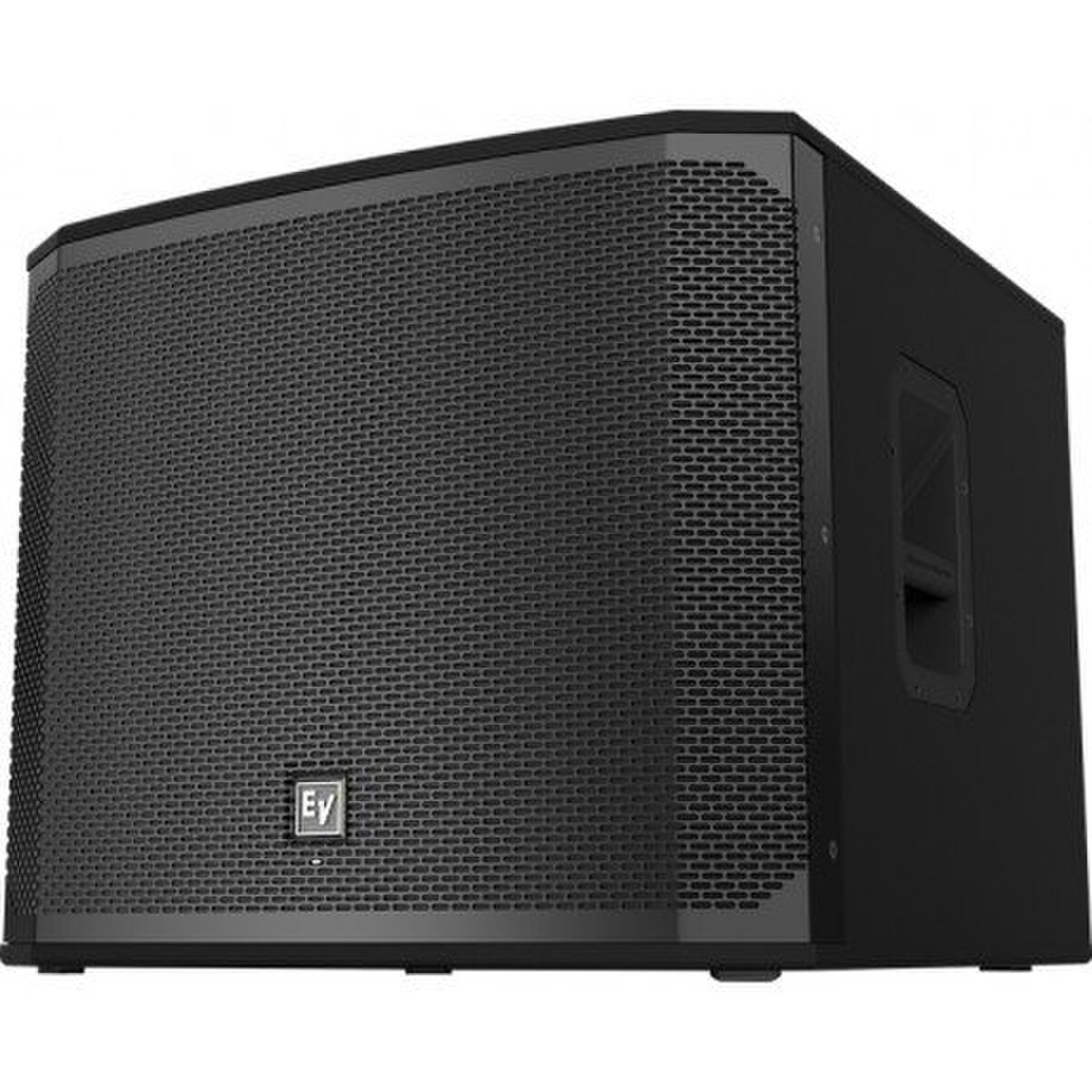

Electro-Voice EKX-18SP Powered 18" Subwoofer

The EKX Series is the newest member of the Electro-Voice portable loudspeaker family. It combines legendary EV sound quality and reliability with the latest technology, all in a compact package that is suitable for a wide range of sound reinforcement scenarios, including musicians, DJs, installations and other sound applications. The EKX-18SP features an 18" LF driver in a tuned and ported enclosure along with a 1300W Class D amplifier.

EV-engineered components provide precise coverage and superior sound quality at high SPLs. EV's award-winning industrial design - with robust wood enclosures and durable EVCoat finish - ensures that EKX speakers look as great as they sound. EKX-18SP delivers up to 134dB SPL utilizing high-sensitivity transducers designed and engineered by EV (18-inch EVS-18C).

EKX active subwoofers are ideal for portable and installed applications, with lightweight and compact 15mm wood enclosures with internal bracing, durable EVCoat finish, aluminum pole-mounts, and all-metal handles.

Features:

• Active subwoofer with 18 in. LF driver
• 1300 Watt Class D amplifier
• Frequency response of 35Hz - 180Hz
• 134 dB max SPL
• 15mm plywood construction

Specifications:

• Speaker configuration
  • Active/passive: Active
  • Type: Subwoofer
  • LF driver: 18 in.
  • MF driver: Not applicable
  • HF driver: Not applicable
• Power amp (active)
  • Amplifier type: D
  • Wattage: 1300
  • Mixer/preamp: Not applicable
• Audio
  • Frequency response: 35Hz - 180Hz
  • Coverage pattern: Not applicable
  • Max SPL: 134 dB
• Enclosure
  • Construction: 15mm plywood
  • Width: 20.0 in.
  • Height: 24.0 in.
  • Depth: 24.0 in.
  • Weight: 90.8 lbs.
• Inputs
  • XLR/TRS combo: 2
  • XLR: Not applicable
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: Not applicable
• Output/thru
  • XLR: 2
  • TRS: Not applicable
  • RCA: Not applicable
  • SPEAKON: Not applicable
