Electro-Voice Enhanced Pattern-Control Two-Way Coaxial Ceiling Loudspeaker - 8in.

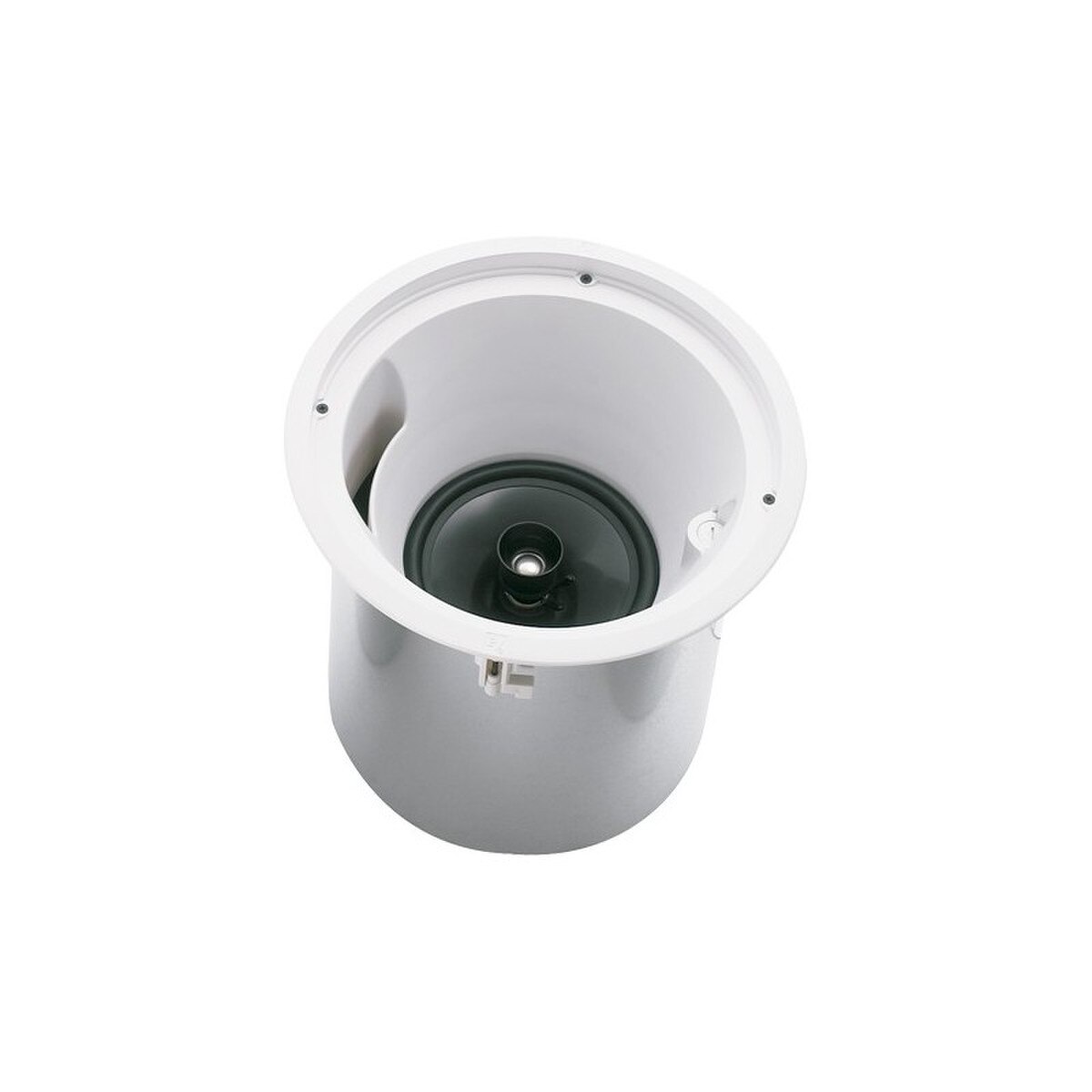

The Electro-Voice® EVID C8.2HC is an 8" coaxial transducer featuring an innovative waveguide (patent pending) that provides directivity control to 1 kHz. It provides much better music fidelity and speech intelligibility in spaces with high ceiling heights than typical flush units are capable of. Its 75° coverage pattern provides the same coverage area when used in a 21' ceiling as a typical flush mount mounted unit in an 8' ceiling. This loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel / waveguide assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker with waveguide coupled titanium coated dome tweeter and internal line-matching transformer. The C8.2HC utilizes a transformer that offers a selection of 7.5 (70-V only), 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass.

Features:

• 8" coaxial two-way with dual Integrated Waveguides
• Defined Coverage for High Ceiling Applications
• Waveguide coupled Ti Tweeter
• Full bandwidth overload protection
• Front baffle wattage tap adjustment
• Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
• Includes tile bridge and mounting ring for easy installation
• Integrated ported enclosure for extended bass response
• UL and CE listed

Specifications:

• Freq. Response (-10 dB): 50 Hz - 20 kHz
• Coverage (Conical): 75° nominal above 1 kHz
• Power Handling: 75 W Cont. / 300 W Peak
• Sensitivity (SPL 1W/1m): 93 dB
• Max Calculated SPL: 112 dB Cont. / 118 dB Peak
• Impedance: 8 Ohms nominal (transformer bypass)
• Network: Network and transducers protected, 12 dB/oct 2.6 kHz
• LF Transducer: 8" (200 mm) Polypropylene cone in waveguide
• HF Transducer: 1 in (25 mm) Ti Mylar laminate
• Transformer Taps: 70V: 7.5, 15, 30 or 60W, 100V: 15, 30 or 60W
• Bypass: 8 Ohms
• Connectors: Phoenix type removable, with screw terminals and "loop-thru", accepts 12ga wire
• Enclosure Material: Baffle - UL 94V-O rated ABS, Backcan - Zinc plated steel
• Grille: Perforated powder coated steel with safety tether
• Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
• Dimensions (H x Dia.): 11.9" x 12.6" (303mm x 320mm)
• Cutout Size: 12.625" (322 mm)
• Net Weight (each): 13.2 lbs (6.0 kg)
• Shipping Weight (pair): 30.0 lbs (13.5 kg)
• Safety Agency Ratings: UL 1480. Safe for use in air handling spaces per UL 2043.
