  • Electro-Voice Front-Loaded One-Way 2in. Driver Bass Speaker - 400W - EVCoat - 15in. - Black

Electro-Voice Front-Loaded One-Way 2in. Driver Bass Speaker - 400W - EVCoat - 15in. - Black

(0)No Reviews yet
$2,225.00
SKU: Electro-Voice EVF-1151S-BLK

Details

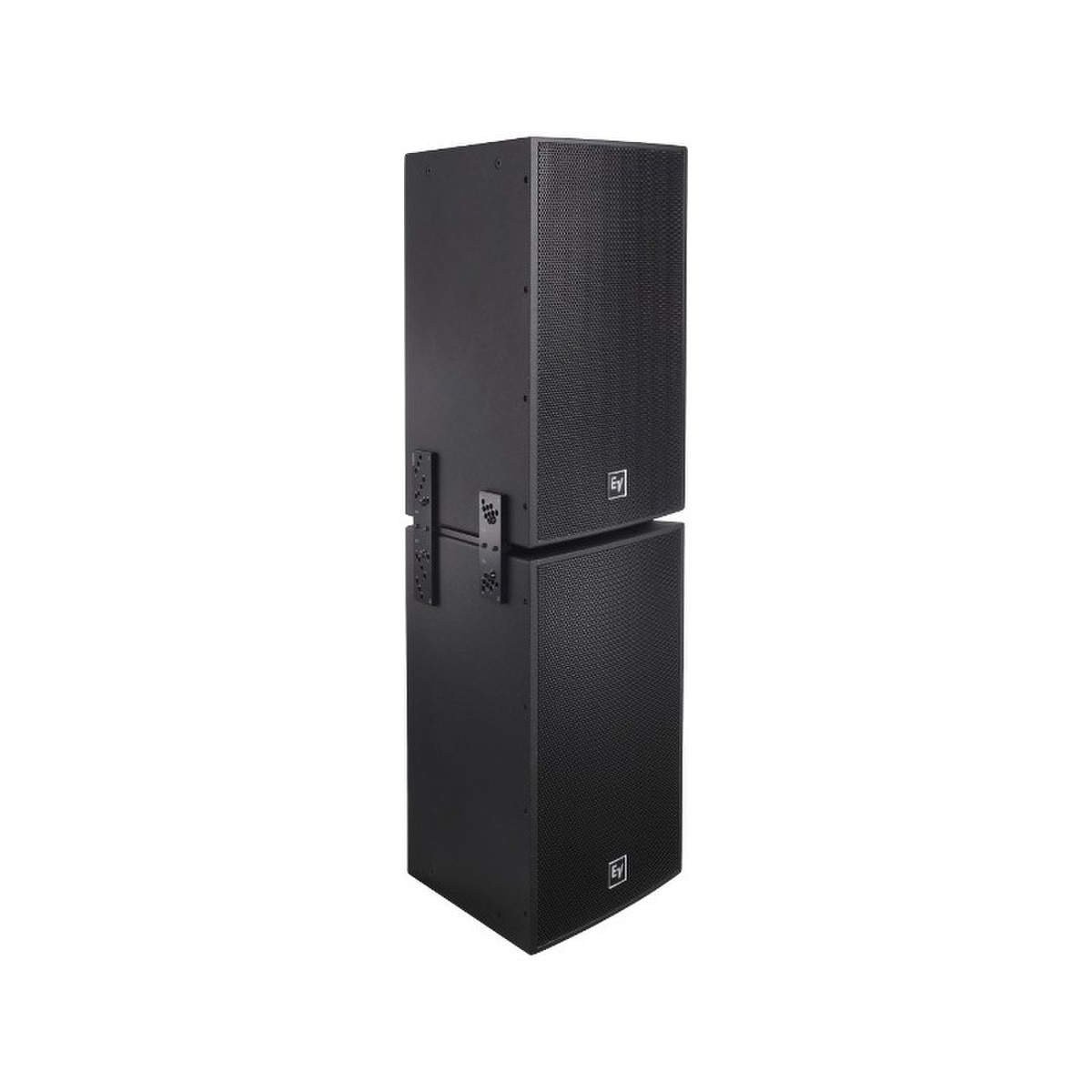

EVF-1151S single 15" woofer more bass system is design to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models, allows for perfect clustering in vertical and Horizontal groupings.

Features:

  • Enhanced bass for installations
  • Low-distortion EVS15SB woofer
  • 99 dB sensitivity, 131 dB maximum SPL
  • Power: 400 W continuous, 1600 W peak
  • Trapezoidal 13-ply birch enclosure
  • EVCoat, PI, or fiberglass (FG) finish
  • M10 threaded suspension points (22)

Specifications:

  • Coverage (Nominal -6 dB): Omnidirectional in normal operating range
  • Environmental Specs: Standard versions: IEC 60529 IP44. PI and FG versions: IEC 60529 IP55
  • Input Connections: Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
  • Internal Passive Low-Pass Filter: 100 Hz 12 dB per octave
  • Frequency Response (-3 dB): 67 - 95 Hz
  • Frequency Response (-10 dB): 46 - 124 Hz
  • Recommended High-Pass Frequency: 35 Hz
  • Sensitivity 1 W/1 m: 103 dB
  • Max. SPL/1m (calc): 135 dB
  • System Power Handling (Continuous/Program/Peak): 400, 800, 1600 Watts
  • LF Transducer: EVS15SB, 15 in (381mm) Driver
  • Nominal Impedance (Passive): Passive: 4, Biamp: 8 Ω
  • Minimum Impedance: Passive: 3.4, Biamp: 6.4 Ω
  • Enclosure Material: 13-ply weather-resistant birch
  • Grill: Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind. PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind
  • Suspension: (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
  • Height: 768.6 mm (30.26")
  • Width: 470 mm (18.5")
  • Depth: 467 mm (18.39")
  • Weight Net: 28.4 kg (62.61 lbs)

Data_Sheet_93980_File_1.pdf
