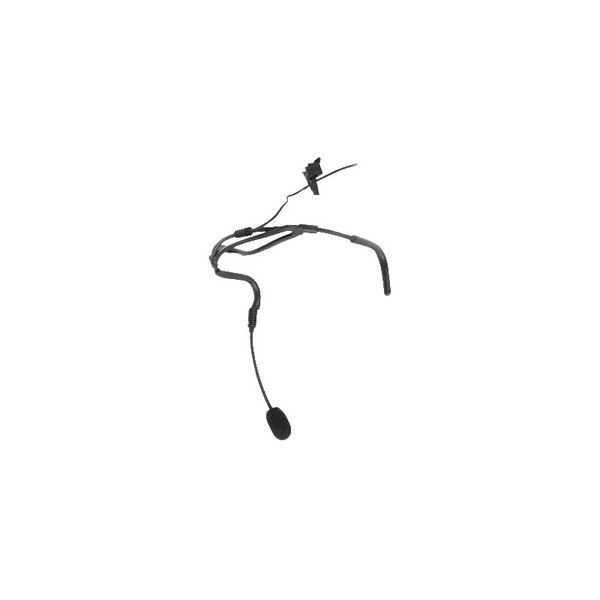

Electro-Voice HM7 Headworn Condenser Cardioid Microphone

The HM7 headworn microphone is the ideal microphone for singers and entertainers that really need to move during a performance. The HM7 has a supercardioid microphone that offers concert-grade vocal performance and stage-noise rejection. The rugged headband makes for a comfortable fit and the flexible boom ensures precise microphone placement.

Features:

• Supercardioid pickup pattern ensures good gain before feedback
• Behind-the-head headband is comfortable and stays in place
• Frequency response and proximity effect equivalent to premium handheld vocal mics
• TA4F connector is compatible with all EV bodypack transmitters
• Use with TXA for wired XLR applications

Specifications:

• Frequency Response: 100 Hz - 15 kHz
• Polar Pattern: Supercardioid
• Generating Element: Back electret condenser
• Sensitivity: 7 mV per Pascal
• Maximum Input (3% THD): 120 dB SPL (3 wire)
• Weight: 70 g
• Accessories: Windscreen included, Connectors available per bodypack specs
• Output Connector: Switchcraft TAF
  • Pin 1: Ground
  • Pin 2: Audio
  • Pin 3: Bias
  • Pin 4: No Connection
