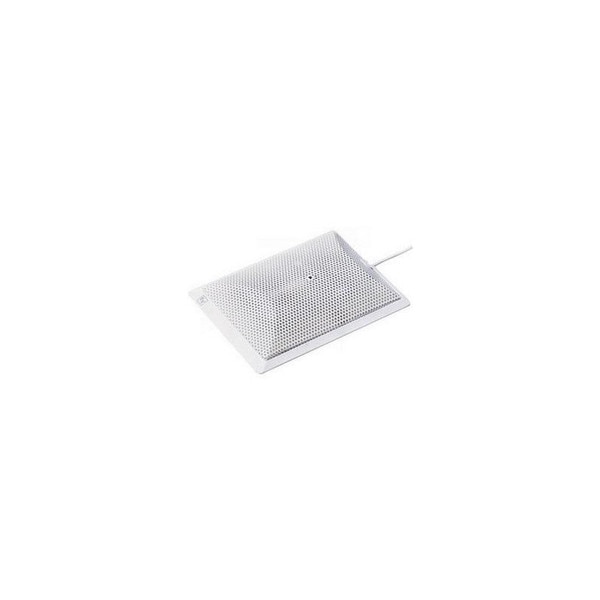

Electro-Voice Half-Cardioid Pattern Boundary Layer Microphone - White
Details
A boundary microphone with "half-cardioid" pick-up pattern and built-in equalization, the RE90B is ideal for video and teleconferencing systems, boardrooms, classrooms, or houses-of-worship. Delivers every word fully and naturally. Also available in black (RE90B).
Features:
- Boundary layer
- Half-cardioid polar pattern
- Ultra-thin profile (16 mm) housing
- Rubber non-slip bottom pad and strong steel screen
- Integrated pop filter
Specifications:
- Case Material: Die cast zinc
- Connector Type: 3-pin XLR
- Element: Condenser (back-electret)
- Finish: Non-reflective black or white
- Frequency Response: 80 - 15,000 Hz
- Impedance, Low-Z balanced: 200 Ω
- Mic Type: Boundary
- Open Circuit Voltage: 25 mV/Pascal
- Polar Pattern: Cardioid
- Power Requirement: 9 - 52 VDC
- Wired/Wireless: Wired
- Height: 16 mm (0.63")
- Width: 94 mm (3.7")
- Depth: 123 mm (4.84")
- Weight Net: 12.63 oz (358 g)
