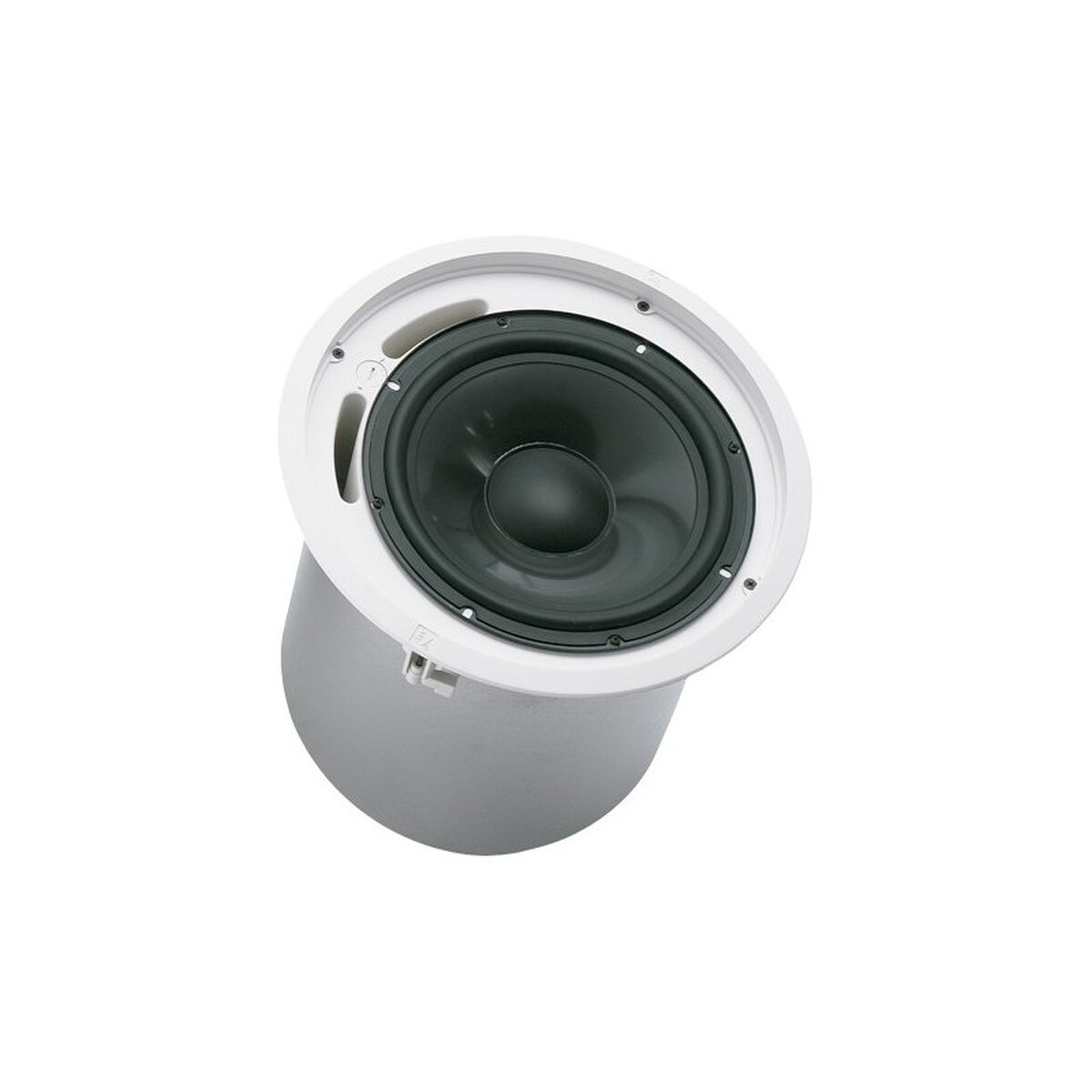

Electro-Voice High-Power Ceiling Subwoofer - 10in.

The Electro-Voice® EVID C10.1 loudspeaker system is a complete low frequency ceiling subwoofer package. The EVID C10.1 is designed to augment the low frequency response of any EVID ceiling speaker. The package consists of a bezel assembly, grille, rear enclosure, 10-inch loudspeaker and internal line-matching transformer. The EVID C10.1 loudspeaker utilizes a 2nd order crossover network to provide the correct bandpass frequency response for use with any EVID Ceiling loud speaker. The C10.1 utilizes a transformer that offers a selection of 7.5 (70-V only), 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass.

Features:

• Supplemental LF for ceiling systems
• High-excursion woofer in ported enclosure for extended lows
• Low pass network with overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Internally damped heavy-gauge steel enclosure
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories

Specifications:

• Chassis Size: 254 mm (10")
• Color: White (paintable surface)
• Coverage (Nominal -6 dB): 180
• Diameter (Max): 320 mm (12.6")
• Input Formats: 8 Ω, 70 V, 100 V
• Mounting Systems: Integrated 3-point toggle anchors
• Speaker Type: Dual ported cabinet, internally damped
• Transformer: Yes
• Transformer Taps (Transformer Version Only): (7.5 - 70 V only), 15, 30, 60
• Frequency Response (-10 dB): 45 - 180 Hz
• Sensitivity 1 W/1 m: 94 dB
• Max. SPL/1m (calc): 122 dB
• System Power Handling (Continuous/Program/Peak): 150 Watts
• LF Transducer: 10-inch polypropylene cone
• Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
• Flying: No
• Outdoor: No
• Grill: Powder-coated steel
• Height: 303 mm (11.93")
• Weight Net: 7 kg (15.43 lbs)
