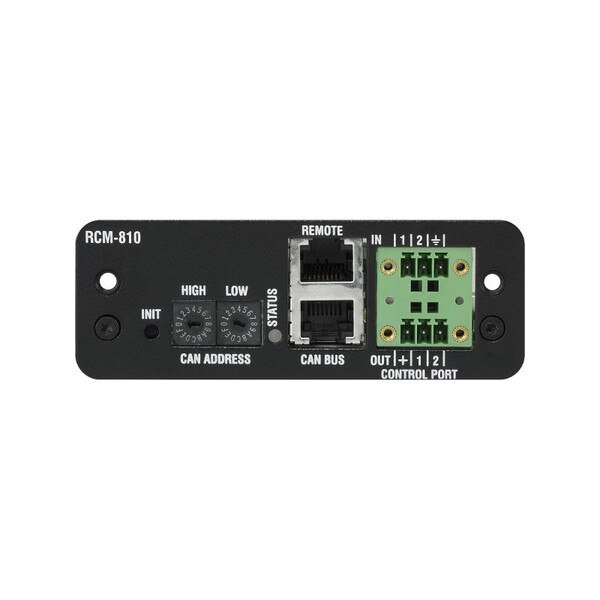

Electro-Voice IRIS-Net Remote Control Module For CPS Series Amplifiers

The RCM-810 Remote Control Module is an optional module for supervision and remote control of power amplifiers. RCM-810 modules allow the amplifiers to be integrated into a remote control network with up to 100 devices. Up to 250 amplifiers can be used in an IRIS-Net project when multiple networks are used. Apart from the network port, the RCM-810 also offers freely programmable control inputs and control outputs.

Features:

• Enable powerful control and supervision capabilities
• Integrate up to 100 devices in each remote control network, 250 with multiple networks
• Support for 2-, 4-, and 8-channel CPS models
• Freely programmable control inputs and outputs
• Load-monitoring for each channel
• Variable Load Drive for independent channel impedance on 4- and 8-channel amps (2-10 Ω in 0.1 Ω steps)

Specifications:

• Audio Network: No
• CAN Bus Interface: 10 - 500 kbaud, 2x RJ-45 (IRIS-Net Control)
• FIR-Drive: No
• GPIO Control Ports: 2 x 3-pole Euro block 2 Control Inputs 2 Control Outputs 2 Reference Outputs (+5 V, 200 mA / GND)
• Internal Processing: None
• Network Control (IRIS-Net): Yes
• Network Interface: CAN Bus
• Variable Load Drive (VLD): Yes
