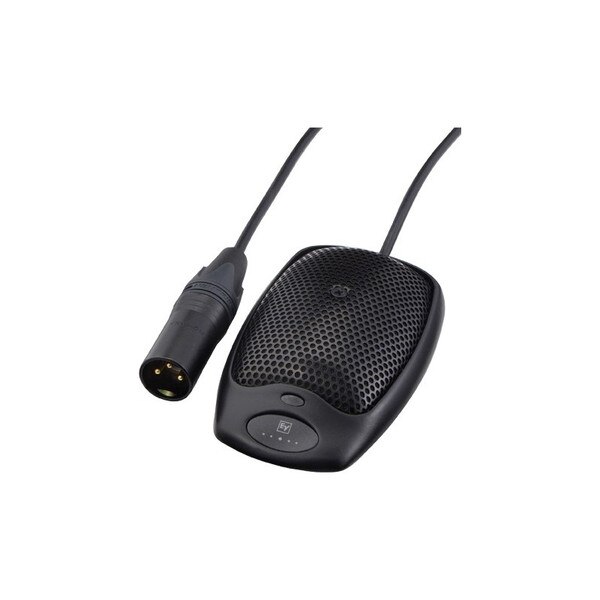

Electro-Voice Multi-Pattern Boundary Layer Microphone

The PC Boundary is a very low-profile area microphone that can be used on any surface and with virtually any mic mixer. Featuring multiple on-board polar patterns, three directional and one omni, the PC Boundary is ideal for any installation where premium-grade area coverage is required.

Features:

• Easy switching between omni, cardioid, supercardioid, or figure "8" polar patterns
• Versatility for different acoustic environments
• Consistent microphone voicing across all four patterns
• Easy-to-use mute switch, programmable for either latching on/off or momentary operation

Specifications:

• Case Material: Steel
• Connector Type: 3-pin XLR
• Element: Dual condenser (back-electret)
• Finish: Non-reflective camera black
• Frequency Response: 50 - 20,000 Hz
• Impedance, Low-Z balanced: 200 Ω
• Mic Type: Boundary
• Open Circuit Voltage: 31.5 mV/Pascal
• Polar Pattern: Omni, Cardioid, S-cardioid & Figure 8
• Power Requirement: 12 - 52 VDC

Electro-Voice_Microphone_Catalog_91167.pdf
Data_Sheet_91192_File_1.pdf
