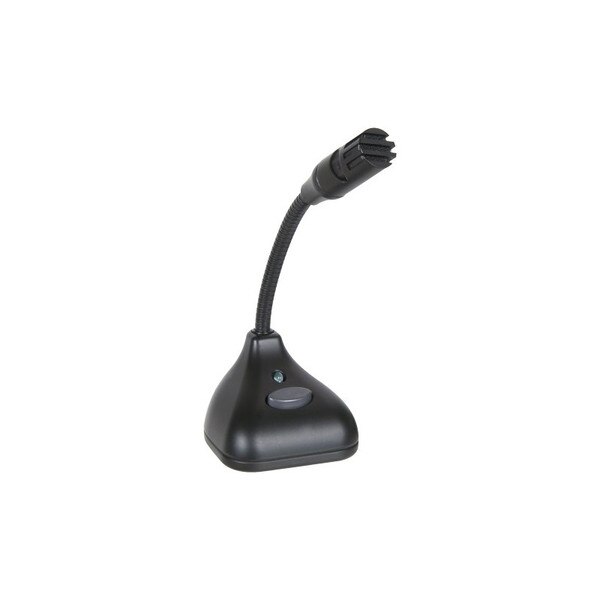

Electro-Voice PolarChoice Plus Miniature Multi-Pattern Podium Microphone - 12in.

The PolarChoice PC-Plus is the first miniature gooseneck microphone to combine the features and functionality of a desktop mic, with the small unobtrusive size of an XLR mounted gooseneck microphone. The unique profile of the PC-Plus housing places the push button switch and status LED in a more natural position and also creates a lower profile housing. The lower half of the PC-Plus (with XLR connector) can be removed and the PC-Plus can be flush mounted. The push-button can be configured for either toggle (push on/off), or as PTT or PTM.

You can also configure the microphones’ state when power is first applied in toggle mode. So if you have an installation with multiple PC Plus microphones, you can configure them so that only one mic is live, when the system is first turned on.

The PC-Plus is also an EV PolarChoice multi-pattern microphone, and is highly-shielded from RFI/GSM thanks to EV's exclusive RF Shield technology. The multi-pattern versatility of the PolarChoice microphone makes it true "problem solver". With 3 directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation.

Features:

• RF Shield provides superior RFI/GSM shielding
• Dual Capsule Design with four polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid
• Configurable push-button switch with status LED
• Controls are on the bottom, hidden from view
• XLR mounted or flush mounted
• Switchable high pass filter
• Consistent on-axis response
• Available in 5, 12, or 18 inch versions
• Non-reflecting black finish

Specifications:

• Generation Element: Dual condenser, back-electret
• Frequency Response: 50Hz to 20,000Hz
• Polar Patterns: Omnidirectional, Cardioid, Supercardioid, Hypercardioid
• Switches and Controls: Top mounted momentary push-button, Push on/off, or PTT/PTM selector, Power up on/off selector, High pass enable, 4-position polar pattern selector
• Sensitivity: Open Circuit Voltage, 1kHz: 5.6mV/Pascal
• Clipping Level (1% THD):>127dB SPL
• Equivalent Noise: <26dB SPL "A" weighted (0 dB=20 microPascals)
• Dynamic Range: >101dB
• Output Impedance, 1 kHz: 200 Ohms
• Power Requirements: Phantom, 12–52VDC
• Current Consumption: <5mA with P48 supply
• Polarity: Pin 2 positive, referenced to Pin 3, with positive pressure on the diaphragm
• Dimensions:
  • Gooseneck Length: 305mm (12")
  • Maximum Head Diameter: 14.6mm (0.58")
  • Gooseneck Diameter: Lower section, 7.9mm (0.31"), Upper section, 6.4mm (0.25")
• Accessories Furnished: Windscreen, Two-piece shock mount, Flush mount parts kit
• Optional Accessories: FMK flange-mount kit, WS-PC1 large windscreen, CPSM shock-mount kit
• Color: Non-reflecting black
• Shipping Weight: 201 grams (7.1oz)
