Electro-Voice Powered Subwoofer - 1800W - 18in.
Details

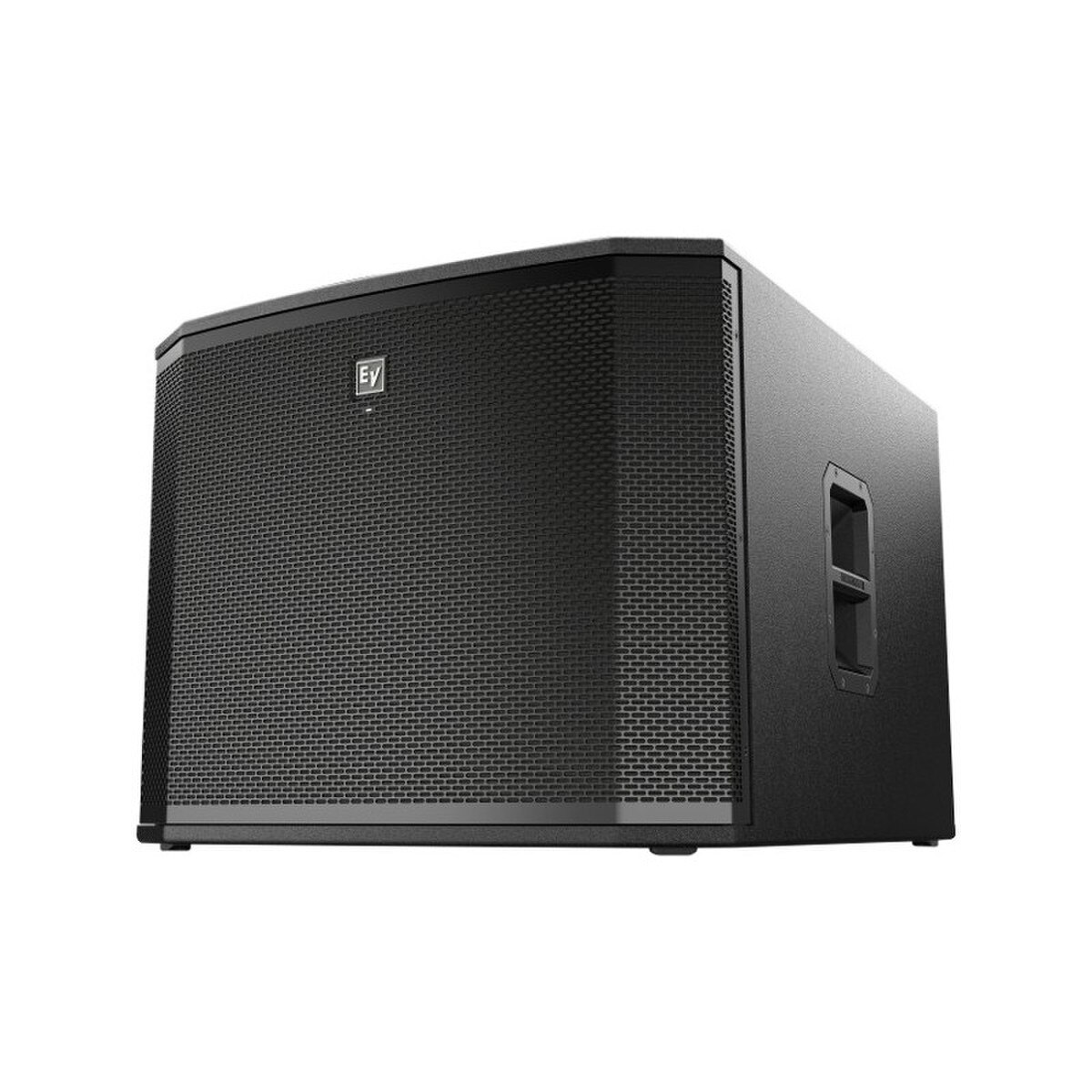

ETX-18SP from Electro-Voice is a powered subwoofer; it can be used in a variety of portable and permanent applications. The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, true cardioid presets, protection limiters, EQ mode, and a lock out mode that prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate limit.
EV’s FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection. True cardioid DSP preset delivers true cardioid response across all frequencies.
The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat. Subwoofers include professional-grade castors, and combination pole mount receptacle for threaded and unthreaded loudspeaker poles.
ETX Powered Loudspeakers combine EV-engineered intelligent DSP, high-powered amplifiers and high-efficiency transducers to deliver that legendary EV sound and performance.
Features:
- 18-inch DVX woofer for extended low-frequency response
- 1800 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
- Special DSP preset for true cardioid performance across the full operating bandwidth
- Combo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range models
- Removable casters
Specifications:
- Frequency Range: 28 Hz – 180 Hz
- Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
- Maximum SPL: 35 dB peak dB
- Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
- Power Rating: 1800 W
- Frequency Response: 33 Hz – 150 Hz
- LF Transducer: DVX3180A 457 mm (18 in)
- Connector Type: (2) XLR/TRS Combo Jack and (2) XLR link Output
- Height: 550 mm (21.65")
- Width: 675 mm (26.57")
- Depth: 910 mm (35.83")
- Weight Net: 51.8 kg (114.2 lbs)
- Shipping Weight: 58.9 kg (129.85 lbs)
