Electro-Voice Premium Cardioid Instrument Microphone - With Shock Mounting Clip
Details

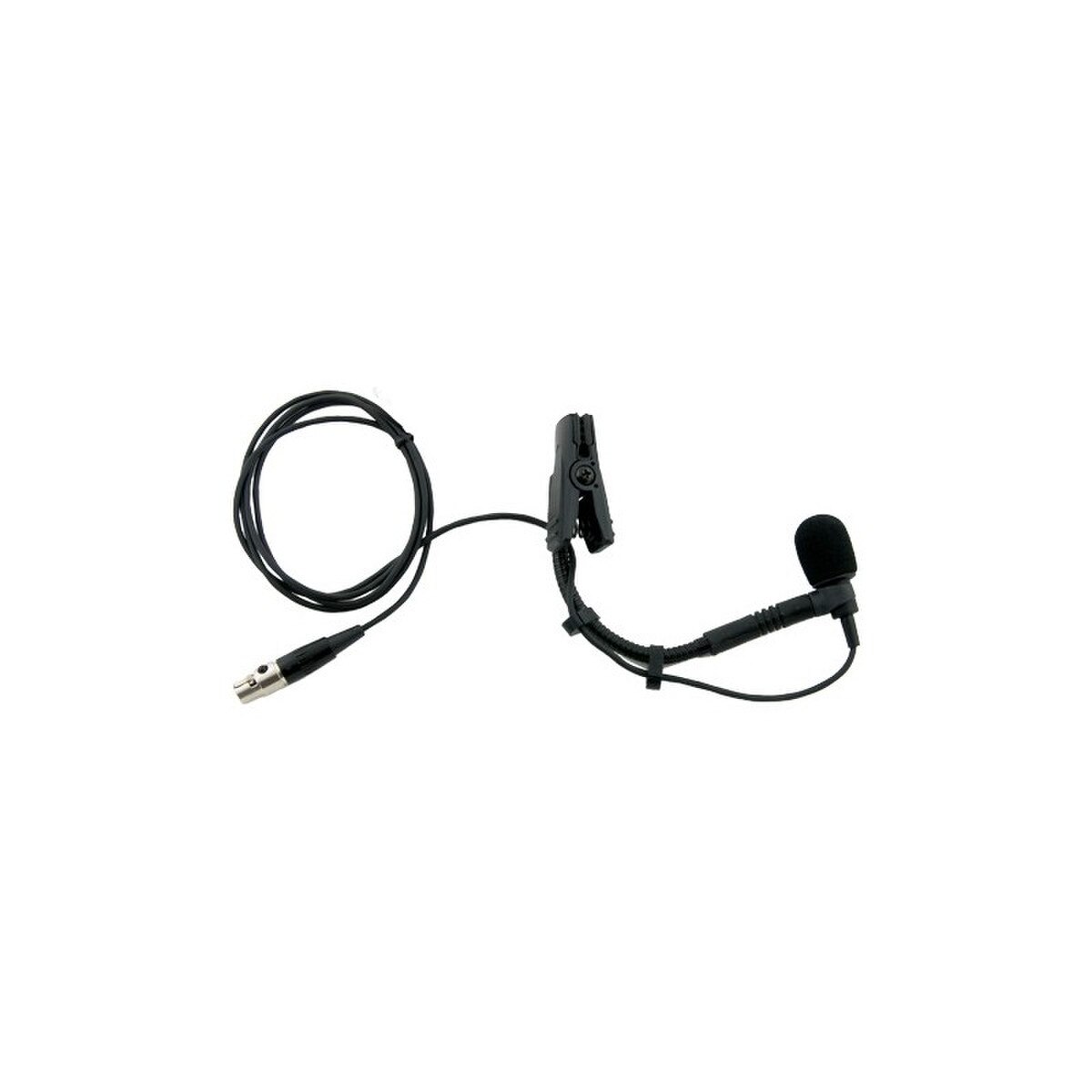

Featuring a specially designed instrument-mount for clipping to musical instruments, the cardioid condenser RE920 is a premium-grade solution for drums, brass, woodwinds, and stringed instruments. Terminated in a TA4F connector for use with EV and Telex bodypack transmitters, it can also be hard-wired with an optional TXA XLR preamp.
Features:
Electro-Voice_Microphone_Catalog_91167.pdf
Data_Sheet_91170_File_1.pdf
Wireless_Mcrophone_Comparison_Chart_91167_File_2.pdf
Features:
- Unidirectional horn/drum mic
- Back-electret condenser element
- Cardioid polar pattern
- TA4F connector for wireless bodypacks
- A wired solution when coupled with a TXA
- High SPL handling
- Custom clip for secure mount to a variety of instruments
- Case Material: Metal
- Connector Type: TA4F
- Diameter (Max): 24 mm (0.94")
- Element: Condenser (back-electret)
- Finish: Non-reflecting Black
- Frequency Response: 80 - 18,000 Hz
- Impedance, Low-Z balanced: 1000 Ω
- Maximum SPL (1% THD): 148 dB
- Mic Type: Instrument
- Open Circuit Voltage: 1.3 mV/Pascal
- Polar Pattern: Cardioid
- Power Requirement: 5 VDC (via optional bodypack)
- Wired/Wireless: Wireless
- Height: 158 mm (6.22")
- Weight Net: 54 kg (119.05 lbs)
