Electro-Voice Single Two-Way Full-Range Loudspeaker System - Passive - 90 x 50 - 500W - 12in.

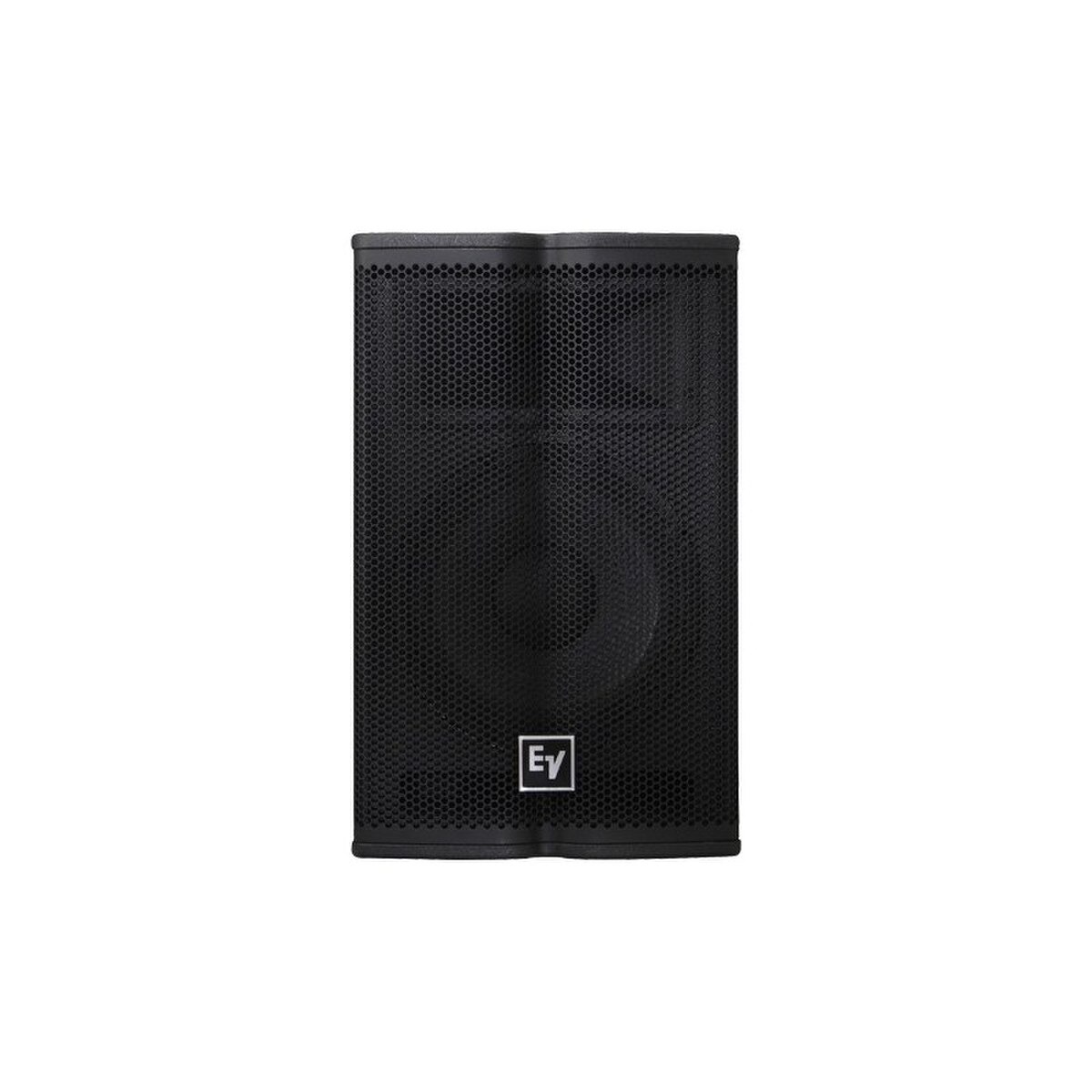

The Electro-Voice TX1122 is a high power, 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package.

The TX1122 utilizes the DH3, a high output 1.25" titanium compression driver, coupled to a Constant Directivity 90 degrees x 50 degrees horn. This combination results in a smooth response to 20 kHz and excellent pattern control in short to medium throw applications.

The SMX2120 12" woofer has an FEA optimized magnet structure for very low distortion and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, extended HF, and a protection circuit for long term reliability.

The TX1122 has a variety of features that make it equally suited for portable or fixed installation applications. The trapezoidal enclosure is constructed out of a combination of plywood and MDF, and coated with EVCoatTM for maximum strength while still remaining lightweight. The unique grille design is very strong, dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX1122 in a variety of positions, a pole mount allows for placement on a subwoofer or a tripod. Six 3/8” threaded points allow a single TX1122 to be suspended in a various positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden while allowing the TX1122 to be used with the TX1181 subwoofer for extended sub bass on a single amplifier channel, with no additional processing needed.

Features:

• High-quality sound at high levels
• Excellent pattern control for short-to-medium throw
• Low-distortion SMX2120 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Constant-directivity 90º H x 50º V horn
• Advanced 4th-order crossover with HF protection
• 97 dB sensitivity, 130 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Lightweight trapezoidal plywood/MDF enclosure
• Pole mount for use with subwoofer or stand
• Six 3/8-inch threaded suspension points
• Black EVCoat finish

Specifications:

• Color: Black
• Input Connections: Parallel Neutrik NL4
• Speaker Type: Full-range
• Frequency Response (-3 dB): 70 - 20000 Hz
• Frequency Response (-10 dB): 45 - 20000 Hz
• Internal Crossover: Yes
• Recommended High-Pass Frequency: 45 Hz
• Sensitivity 1 W/1 m: 97 dB 1w/1m
• Max. SPL/1m (calc): 132 dB
• Coverage (Nominal -6 dB) H: 90 degrees
• Coverage (Nominal -6 dB) V: 50 degrees
• Rotatable Horn: No
• System Power Handling (Continuous/Program/Peak): 500//2000 Watts
• LF Transducer: 12-inch SMX2121
• HF Transducer: 1.25-inch DH3/2010A
• Crossover Frequency: 1600 Hz
• Nominal Impedance (Passive): 8 Ω
• Minimum Impedance: 6.4 Ω
• Enclosure Material: Plywood and MDF with EVCOAT
• Flying: Yes
• Suspension: (6) 3/8-inch threaded inserts
• Height: 440 mm (17.32")
• Width: 364 mm (14.33")
• Depth: 573 mm (22.56")
• Weight Net: 19.8 kg (43.65 lbs)
