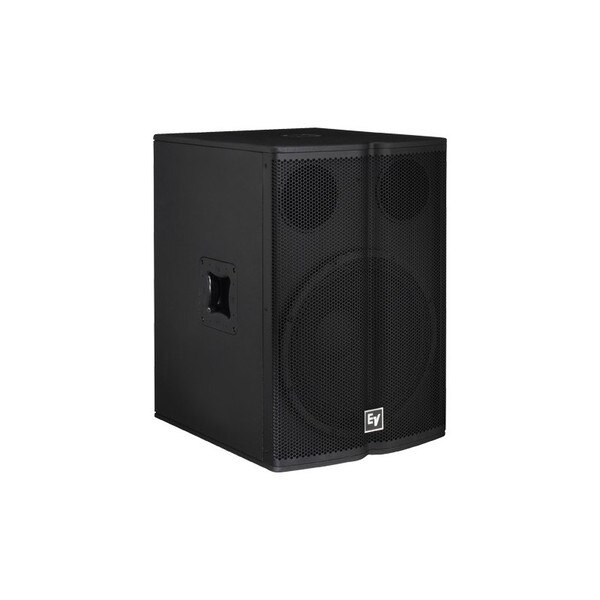

Electro-Voice Subwoofer - 18in. - 500W

The Electro-Voice TX1181 is a high power subwoofer that can be used to extend the low frequency performance of the TX1122 and TX1152 loudspeaker systems.

Features:

• High-power LF supplement to TX1122 and TX1152
• High-excursion EVS-18S woofer
• 6 dB/octave low-pass filter for parallel connection without added amp
• 100 dB sensitivity, 132 dB max SPL
• Power handling: 500 W continuous, 2000 W peak
• Top-side socket for speaker pole
• Mount points (6) for optional wheel kit
• Braced plywood / MDF enclosure
• Black EVCoat finish

Specifications:

• Color: Black
• Input Connections: Parallel Neutrik NL4
• Speaker Type: Subwoofer
• Frequency Response (-3 dB): 50 - 160 Hz
• Frequency Response (-10 dB): 45 - 700 Hz
• Internal Crossover: Low-pass filter
• Recommended High-Pass Frequency: 30 Hz
• Sensitivity 1 W/1 m: 100 dB
• Max. SPL/1m (calc): 132 dB
• System Power Handling (Continuous/Program/Peak): 500 / 2000 Watts
• LF Transducer: 18" EVS18S
• Nominal Impedance (Passive): 8 Ω
• Minimum Impedance: 7.5 Ω
• Enclosure Material: Plywood and MDF with EVCOAT
• Flying: No
• Height: 769 mm (30.28")
• Width: 439 mm (17.28")
• Depth: 591 mm (23.27")
• Weight Net: 33.8 kg (74.52 lbs)
