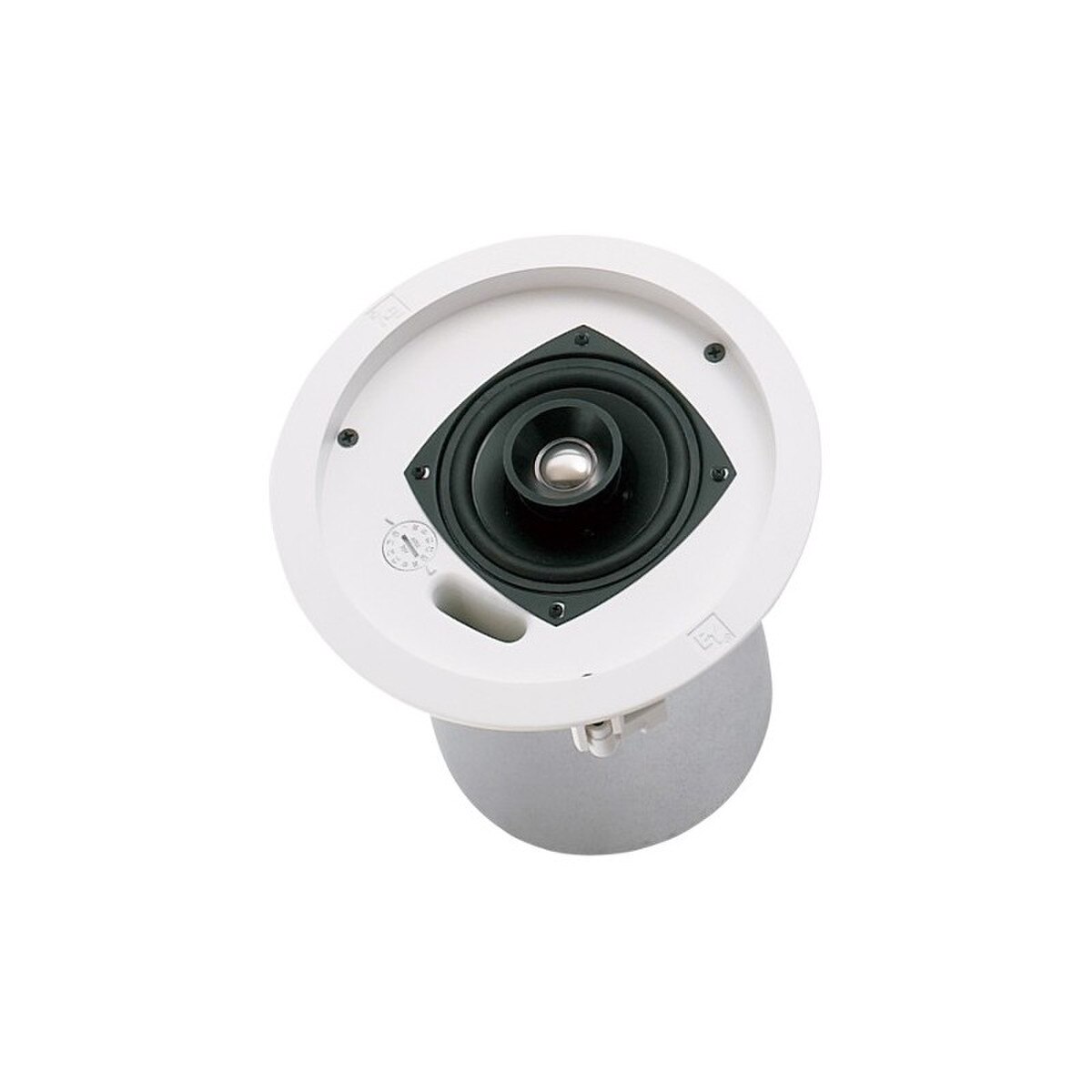

Electro-Voice Two-Way Coaxial Ceiling Loudspeaker - 4in.

The Electro-Voice EVID C4.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 4-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C4.2 loudspeaker utilizes a 2nd order crossover network at 3.3kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C.42 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8Ω bypass.

Features:

• Designed for air-handling spaces
• Ported enclosure for extended bass response
• Waveguide-coupled 0.75-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories

Specifications:

• Chassis Size: 101.6 mm (4")
• Color: White (paintable surface)
• Coverage (Nominal -6 dB): 130 conical
• Diameter (Max): 181 mm (7.13")
• Input Formats: 8 Ω, 70 V, 100 V
• Mounting Systems: Integrated 3-point toggle anchors
• Speaker Type: Ported cabinet, internally damped, two-way passive crossover included
• Transformer: Yes
• Transformer Taps (Transformer Version Only): (1.88 - 70 V only), 3.75, 7.5, 15, 30
• Frequency Response (-10 dB): 65 - 20000 Hz
• Sensitivity 1 W/1 m: 86 dB
• System Power Handling (Continuous/Program/Peak): 80 Watts Overload Protected
• LF Transducer: 4" polypropylene cone
• HF Transducer: 0.75" (19 mm) Ti Mylar Laminate Dome
• Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
• Outdoor: No
• Grill: Powder-coated steel
• Height: 176 mm (6.93")
• Weight Net: 2.7 kg (5.95 lbs)
