Electro-Voice Two-Way Coaxial Ceiling Loudspeaker - 8in. - Black

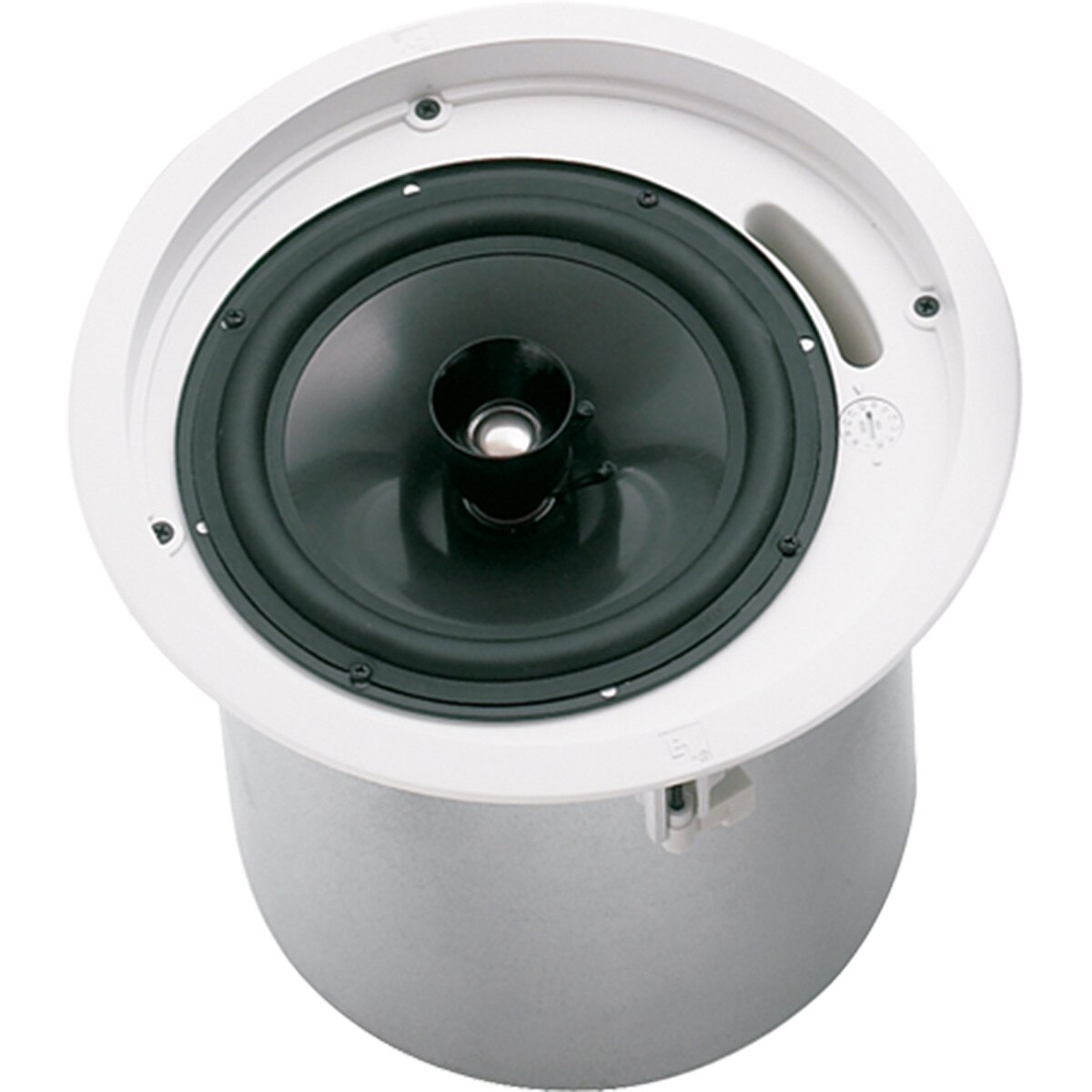

The Electro-Voice® EVID C8.2 loudspeaker system is a complete two-way ceiling loudspeaker package. The package consists of a bezel assembly, grille, rear enclosure, 8" coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass.

Features:

• Low-profile for rich sound in tight spaces
• Ported enclosure for extended bass response
• Waveguide-coupled 1-inch titanium-coated tweeter
• Full-bandwidth overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Safe, easy installation with included tile bridge and mounting ring
• Black semi-gloss perforated grille
• Complete package, requires no additional accessories

Specifications:

• Chassis Size: 203.2 mm (8")
• Color: Black
• Coverage (Nominal -6 dB): 110 conical
• Diameter (Max): 270 mm (10.63")
• Input Formats: 8 Ω, 70 V, 100 V
• LP Height: 255 mm (10.04")
• Mounting Systems: Integrated 3-point toggle anchors
• Speaker Type: Ported cabinet, internally damped, two-way (passive crossover included)
• Transformer: Yes
• Transformer Taps (Transformer Version Only): (1.88 - 70 V only), 3.75, 7.5, 15, 30
• Frequency Response (-10 dB): 50 - 20000 Hz
• Sensitivity 1 W/1 m: 91 dB
• System Power Handling (Continuous/Program/Peak): 100 Watts Overload Protected
• LF Transducer: 8" polypropylene cone
• HF Transducer: 1" (25 mm) Ti Mylar Laminate Dome
• Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
• Outdoor: No
• Grill: Powder-coated steel
• Height: 178 mm (7.01")
• Weight Net: 5 kg (11.02 lbs)
