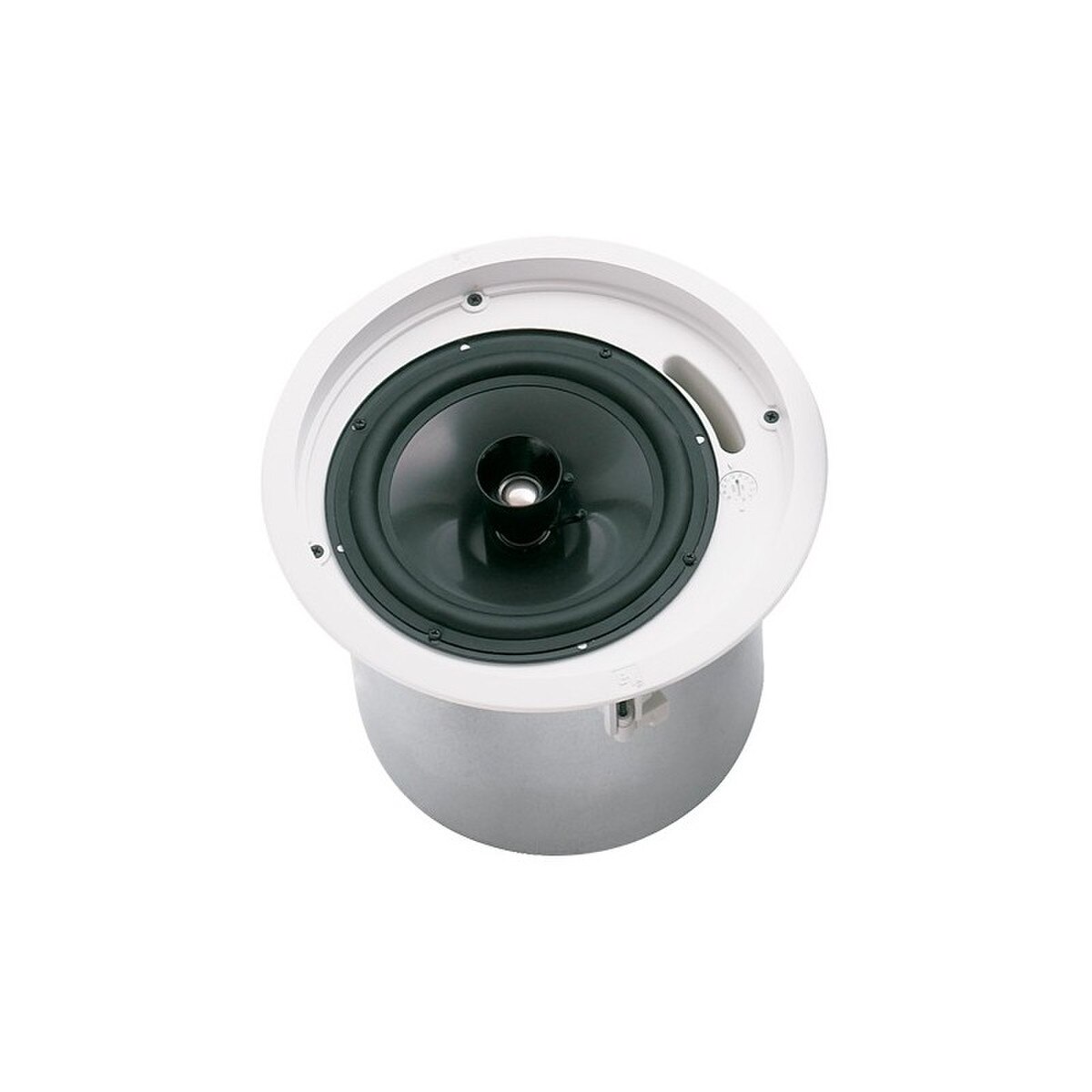

Electro-Voice Two-Way Coaxial Ceiling Loudspeaker - 8in. - Low-Profile
Details
The Electro-Voice® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass.
Features:
- Low Profile 8" coaxial two-way
- Waveguide coupled Ti Tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
- Includes tile bridge and mounting ring for easy installation
- Integrated ported enclosure for extended bass response
- Ideal for ceiling spaces with tight clearance
- UL and CE listed
Specifications:
- Freq. Response (-10 dB): 50 Hz - 20 kHz
- Coverage (Conical): 110°
- Power Handling: 75 W Cont. / 300 W Peak
- Sensitivity (SPL 1W/1m): 91 dB
- Max Calculated SPL: 110 dB Cont. / 116 dB Peak
- Impedance: 8 Ohms nominal (transformer bypass)
- Network: Network and transducers protected, 12 dB/oct 2.6 kHz
- LF Transducer: 8" (200 mm) Polypropylene cone
- HF Transducer: 1" (25 mm) Ti Mylar laminate
- Transformer Taps: 70V: 1.88, 3.75, 7.5, 15 or 30W, 100V: 3.75, 7.5, 15 or 30W
- Bypass: 8 Ohms
- Connectors: Phoenix type removable, with screw terminals and "loop-thru", accepts 12ga wire
- Enclosure Material: Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel
- Grille: Perforated powder coated steel with safety tether
- Support Hardware: Tile bridge, backing plate support, cutout template, paint shield
- Dimensions (H x Dia.): 7.0" x 10.6" (178mm x 270mm)
- Cutout Size: 10.75" (272mm)
- Net Weight (each): 11.0 lbs (5.0 kg)
- Shipping Weight (pair): 24.0 lbs (11.0 kg)
- Safety Agency Ratings: UL 1480. Safe for use in air handling spaces per UL 2043.
