Electro-Voice Two-Way Full-Range Coaxial Speaker - 12in.
Details

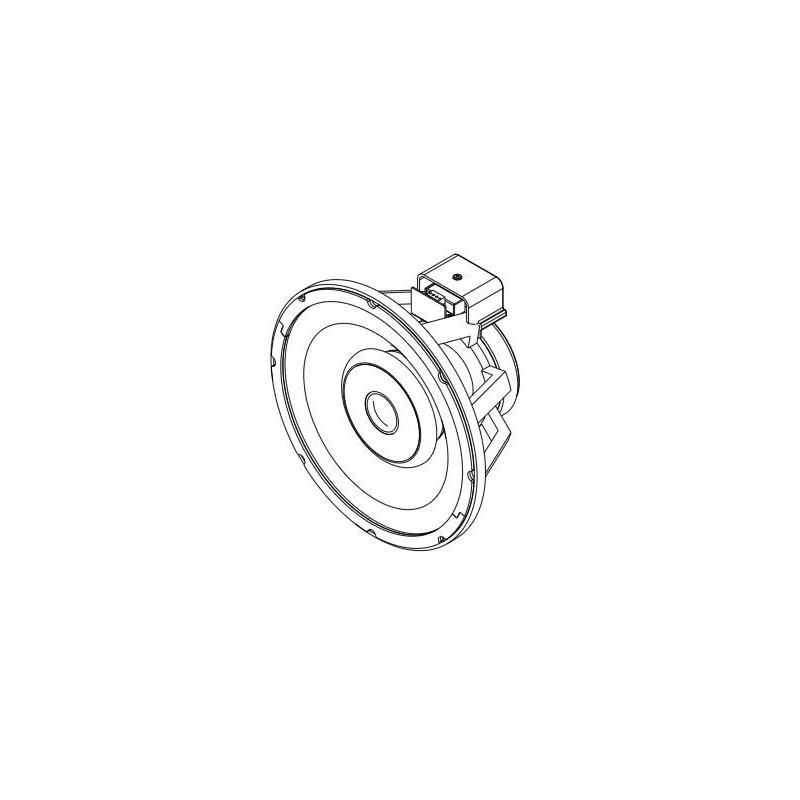

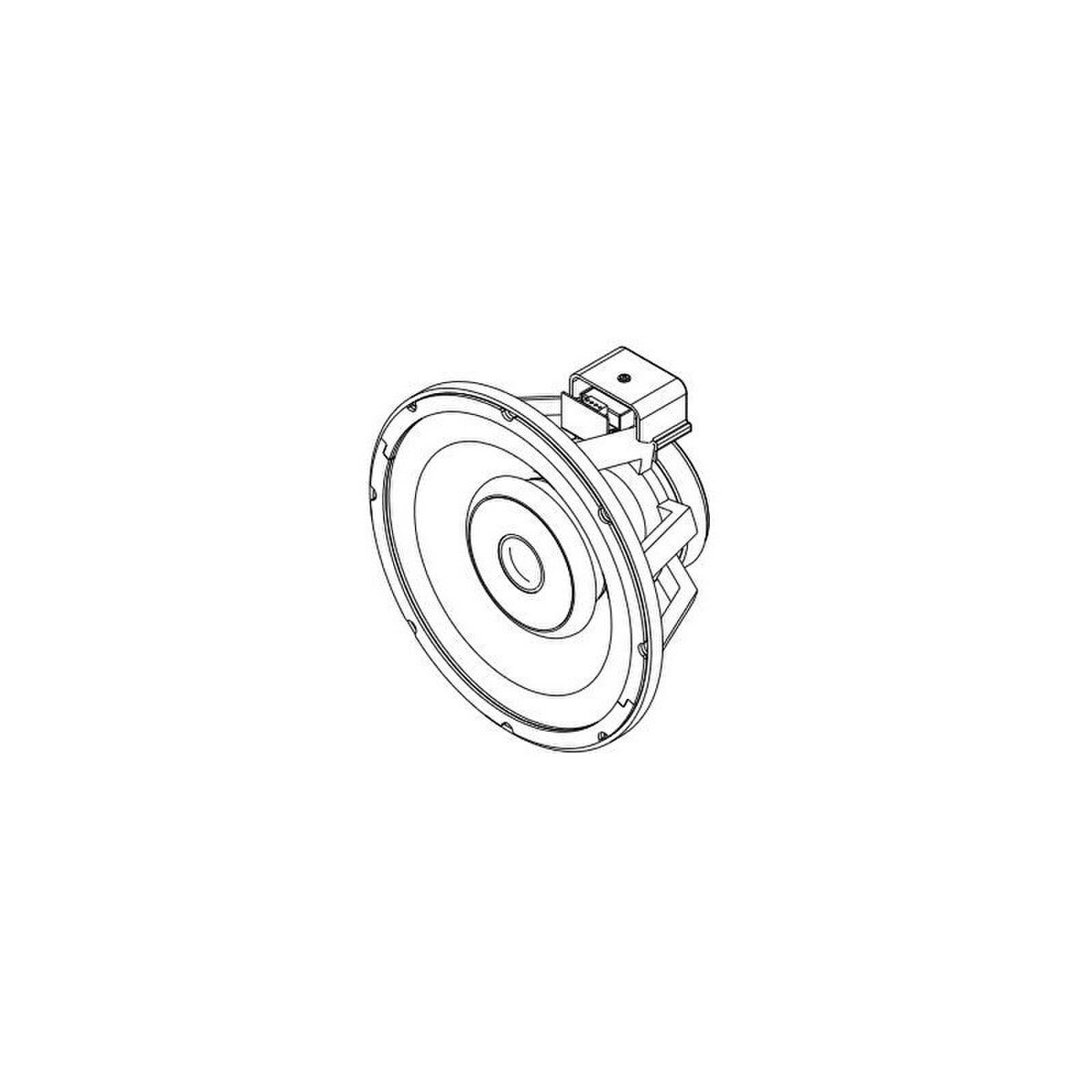

The 920-8B loudspeaker system is a two-way loudspeaker with a 12" (30.5 cm), low-frequency cone and coaxially mounted, high-temperature voice-coil assembly with a wide-dispersion dome radiator tweeter.
Features:
Data_Sheet_91354_File_1.pdf
Features:
- High 100 dB Sensitivity
- Wide, Smooth 90 Hz - 18 kHz Frequency Response
- High Power Handling, 200W
- Durable Cast Frame
- High Output Dome Tweeter
- 4 Pin Quick Disconnect Phoenix Connector
- Rear Transformer Mounting Holes
- Front or Rear Baffle Installation Capability
- Frequency Response (-3 dB): 90 Hz to 18 kHz
- Frequency Range (-10 dB): 50 Hz to 20 kHz
- Rec. Highpass Frequency: 60 Hz
- Axial Sensitivity: 100 dB
- Max Calculated SPL: 128 dB
- Power Handling: 200W Cotn., 800W Peak
- Crossover Frequency: 2 kHz
- Input Terminals: 4-pin Phoenix-Type Connector
- Impedance: 8.0 Ohms Nominal
- Dimensions: 311mm Dia. x 127mm Depth (12.25" Dia. x 5.0" Depth)
- Net Weight: 6.2 kg (13.5 lbs.)
- Shipping Weight: 7.4 kg (16.2 lbs.)
