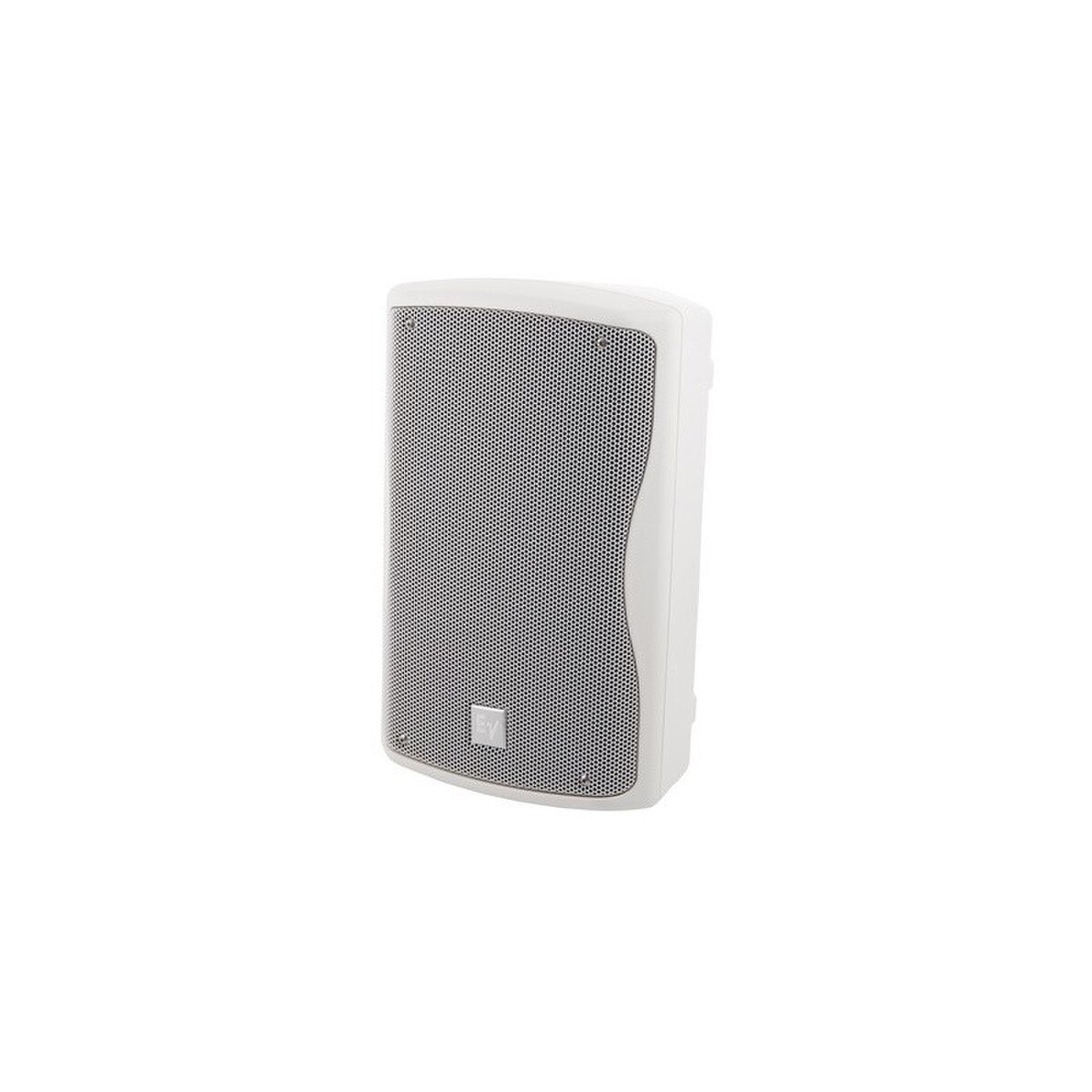

Electro-Voice Two-Way Full-Range Composite Loudspeaker 8in 200W - WHT

The Electro-Voice® ZX1 is the new standard of no compromise audio performance and versatility for compact sound reinforcement.

The ZX1's long excursion, high output 8" woofer with a weatherized treated cone delivers smooth low frequency performance with exceptional reliability. A sophisticated crossover network integrates it with the DH2005, a 1.25" voice coil titanium diaphragm true compression driver for maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long term operation without audible effect.

The horn features 90° x 50° coverage with the important added benefit of rotation, allowing the ZX1 to be oriented either horizontally or vertically for the ultimate in coverage flexibility.

Features:

• Extremely Smooth, Wide Frequency Response
• Attractive, Clean Design with Full Grille
• EV8L 8" High-Output LF Transducer
• DH2005 1" Exit True Compression Driver
• 90° x 50° Coverage Pattern
• Rotatable Horn Design
• Integral Monitor Angle on Enclosure
• 200W Cont., 800W Peak Power Handling
• High Sensitivity, 123 dB Maximum SPL
• Built-In Pole Mount
• Integral Handle Pocket for Easy Carrying

Specifications:

• Freq. Response (-3 dB): 60 Hz - 20 kHz
• Freq. Range (-10 dB): 48 Hz - 20 kHz
• Rec. Hipass Frequency: 40 Hz
• Axial Sensitivity1: 94 dB (1W/1m)
• Max Calculated SPL: 123 dB
• Horizontal Coverage: 90° or 50°
• Vertical Coverage: 50° or 90°
• Rated System Power: 200W Cont.2, 400W Prog., 800W Peak
• LF Transducer: EV8L, 8" (203mm) Driver
• HF Transducer: DH2005, 1" (25.4mm) Exit
• Compression Driver
• Crossover Frequency: 1.7 kHz
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6 Ohms
• Connectors: Neutrik Speakon NL4
• Enclosure Material: High Impact Polymer
• Grille: Polyester Powder Coated, 18GA
• Galvanized Steel
• Dimensions (H x W x D): 457mm x 282mm x 264mm (17.98" x 11.12" x 10.38")
• Net Weight: 8.4 kg (18.5 lbs)
• Shipping Weight: 10.2 kg (22.5 lbs)
