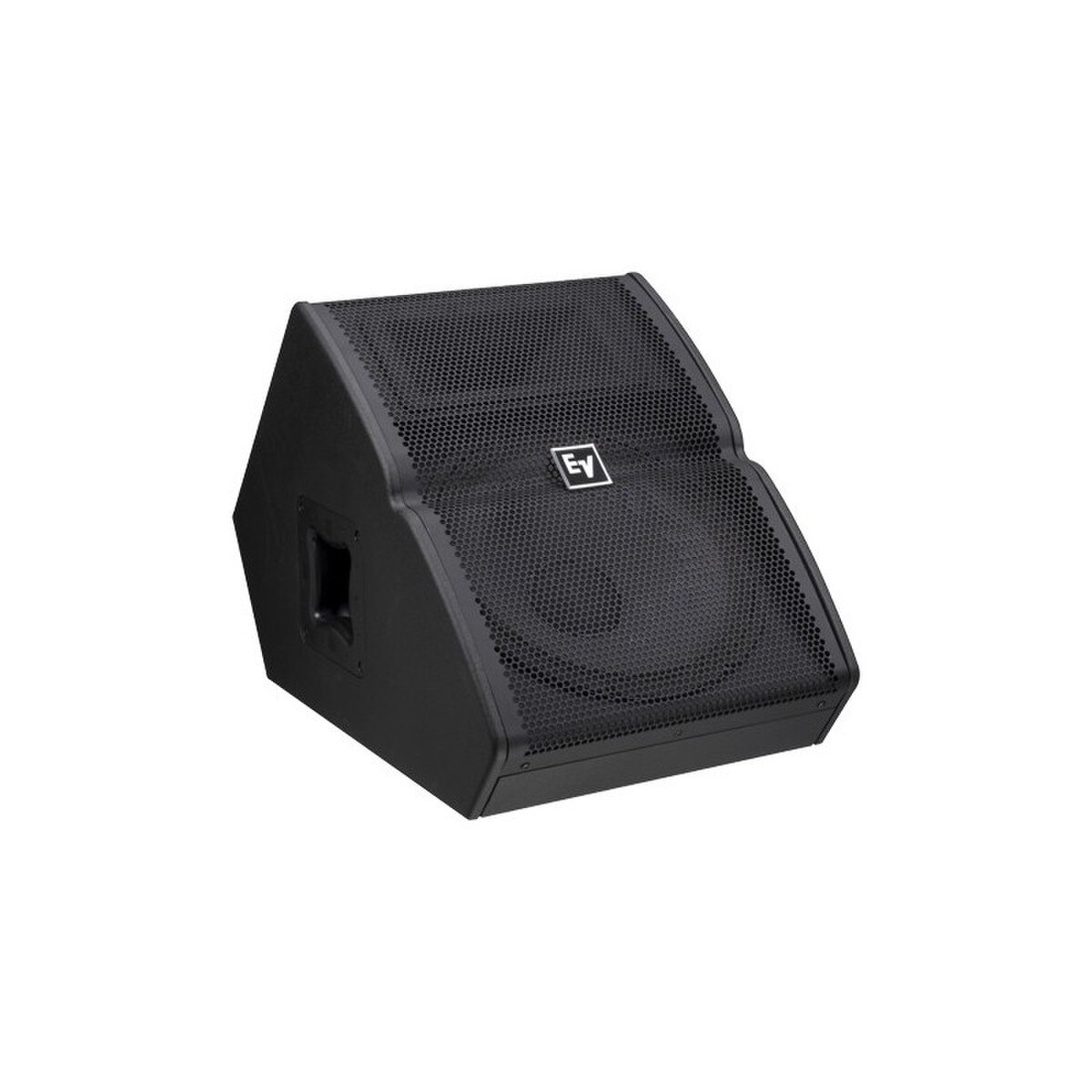

Electro-Voice Two-Way Full-Range Floor Monitor - 15in - 500W - Passive

Electro-Voice's Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.

Features:

• Two-way, high-output design
• Vented LF enclosure
• Neutrik Speakon paralleled pass-through connectors
• Two integrated handles
• Ideal for small-to-medium stages
• Signal Synchronized Transducers for woofer/tweeter alignment
• Ultra low-distortion SMX2151 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Constant-directivity 90º H x 50º V horn
• Integrated 24 dB/octave crossover with HF protection
• 100 dB sensitivity, 133 dB maximum SPL
• Power handling: 500 W continuous, 2000 W peak
• Black EVCoat finish

Specifications:

• Color: Black
• Input Connections: Parallel Neutrik NL4
• Speaker Type: Full-range
• Frequency Response (-3 dB): 65 - 20000 Hz
• Frequency Response (-10 dB): 45 - 20000 Hz
• Internal Crossover: Yes
• Recommended High-Pass Frequency: 45 Hz
• Sensitivity 1 W/1 m: 100 dB
• Max. SPL/1m (calc): 133 dB
• Coverage (Nominal -6 dB) H: 90 degrees
• Coverage (Nominal -6 dB) V: 50 degrees
• Rotatable Horn: No
• System Power Handling (Continuous/Program/Peak): 500 Watts
• LF Transducer: SMX2151
• HF Transducer: DH3
• Crossover Frequency: 1750 Hz
• Nominal Impedance (Passive): 8Ω
• Minimum Impedance: 6.2Ω
• Enclosure Material: Plywood and MDF with EVCOAT
• Flying: No
• Height: 475 mm (18.7")
• Width: 439 mm (17.28")
• Depth: 655 mm (25.79")
• Weight Net: 23.5 kg (51.81 lbs)
