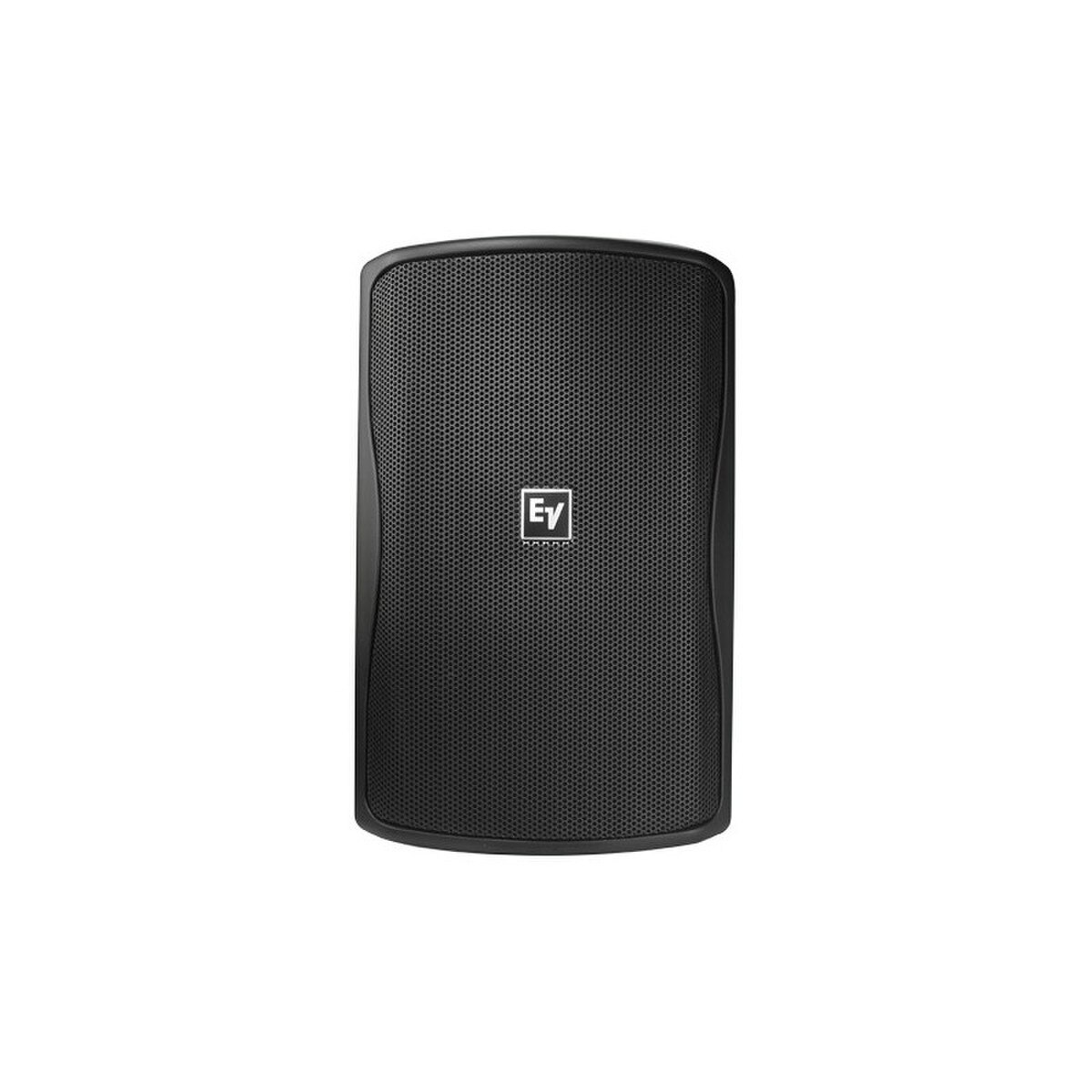

Electro-Voice Two-Way Full-Range Indoor / Outdoor Loudspeaker - 100 x 100 - 200W - 8in.
Details
Features:
Data_Sheet_91457_File_1.pdf
- Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included
- Patented ASC (Automatic Saturation Compensation) on Transformer Versions
- EV8L 8 inch Weatherized Cone High-Output LF Transducer
- DH2005 1 inch Exit True Compression Driver
- Frequency Response (-3 dB): 60 Hz - 20 kHz
- Frequency Range (-10 dB): 48 Hz – 20 kHz
- Rec. Hi-pass Frequency: 40 Hz
- Axial Sensitivity: 92 dB (1W/1m)
- Max Calculated SPL: 121 dB
- Coverage (H x V): 100 x 100
- Rated System Power: 200 W Cont.2, 400 W Prog., 800 W Peak
- LF Transducer: EV8L, 203 mm (8 in) Driver
- HF Transducer: DH2005, 25 mm (1 in) Exit Compression Driver
- Crossover Frequency: 1.7 kHz
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6 Ω
- "T" Version Wattage Taps: 70V – 6, 12.5, 25, 50, 100, 8 Ω by p0V – 12.5, 25, 50, 100, 8 Ω bypass
- Connectors: 4-Pin Phoenix Connector
- Enclosure Material: ABS resin
- Suspension: Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
- Grille: Polyester Powder Coated, 18GA Galvanized Steel
- Dimensions (H x W x D): 451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in)
- Net Weight: 8.4 kg (18.5 lb) without Transformer 10.4 kg (23.0 lb) with Transformer
- Shipping Weight: 10.2 kg (22.5 lb) without Transformer 12.3 kg (27.0 lb) with Transformer
Data_Sheet_91457_File_1.pdf
