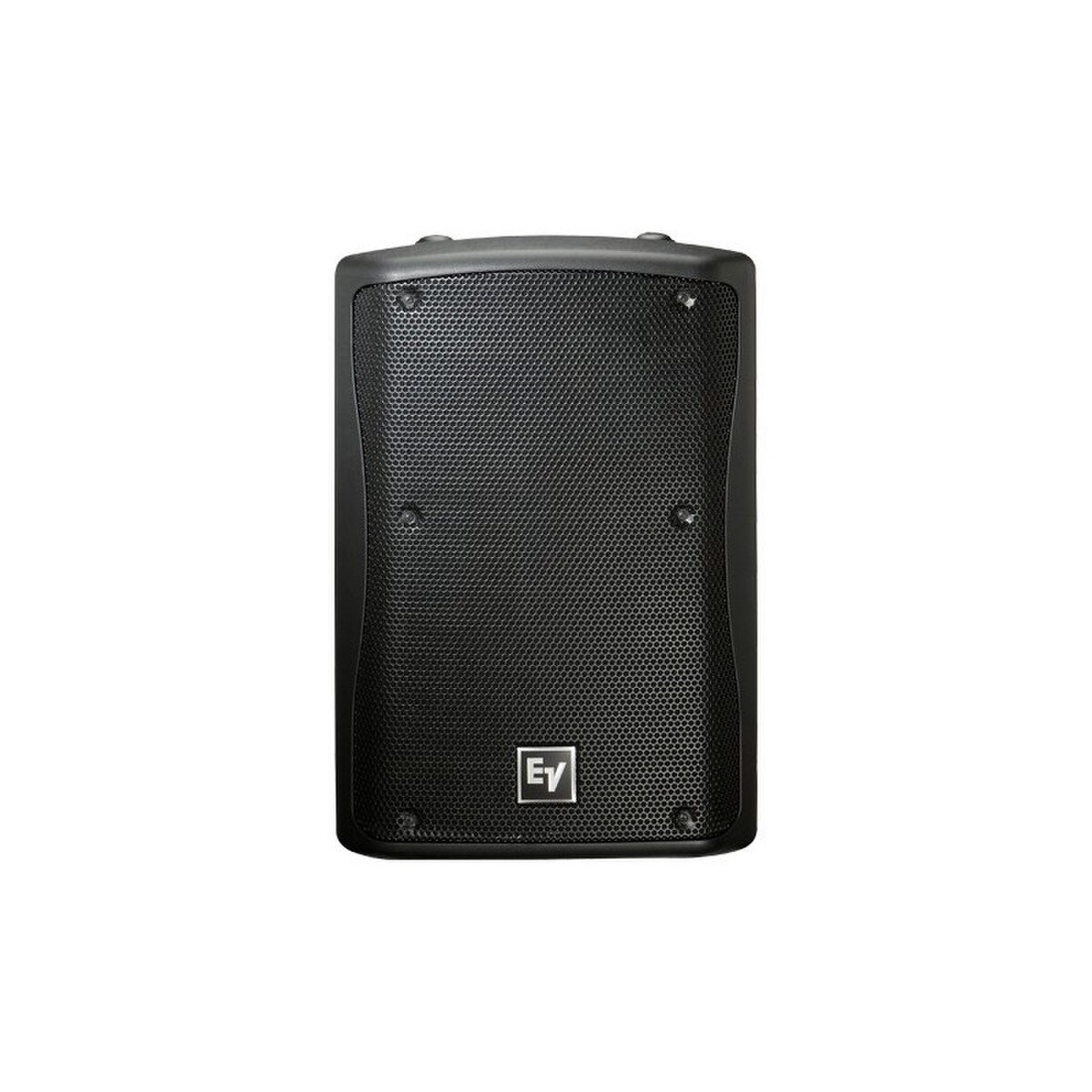

Electro-Voice Two-Way Full-Range Loudspeaker - 12in - 600W 60x60 - BLK

(0)No Reviews yet
$1,525.00
SKU: Electro-Voice ZX3-60B

Details

The Electro-Voice Zx3 is the new standard of no compromise audio performance and versatility in a simple to use, compact package.

Features:

  • DVX3121 12" LF Transducer with Forced Air Cooling
  • ND2 2" Voice Coil, 1” Exit Neodymium Compression Driver
  • 60 degrees x 60 degrees Coverage Pattern
  • 600W Continuous (2400W Peak) Power Handling
  • High Sensitivity, 131 dB Maximum SPL
  • Adjustable Monitor Angle (45 degrees or 55 degrees )
  • 2 Anchor Plates for Single Stud Fittings and 7 Integral Suspension Points
  • Available in Black or White
  • Passive/Biamp Selectable
  • Full Line of Accessories

Specifications:

  • Freq. Response (-3 dB): 58 Hz - 15 kHz
  • Freq. Range (-10 dB): 48 Hz - 20 kHz
  • Rec. Hipass Frequency: 50 Hz
  • Axial Sensitivity: 97 dB (1W/1m)
  • Max. Calculated SPL: 131 dB
  • Horizontal Coverage: 60 degrees
  • Vertical Coverage: 60 degrees
  • Power Handling (Passive): 600W Continuous, 2400W Peak
  • LF Power Handling (Biamp): 500W Continuous, 2000W Peak
  • HF Power Handling (Biamp): 40W Continuous, 160W Peak
  • LF Transducer: DVX3121, 12" (305mm) Driver
  • HF Transducer: ND2, 1" (25.4mm) exit Neodymium Compression Driver
  • Crossover Frequency: 2 kHz
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 6.2 Ohms
  • Connectors: (2) Neutrik Speakon NL4's
  • Enclosure Material: Polypropylene Structural Foam
  • Suspension: Enclosure has locations for 4 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure
  • Grille: Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
  • Dimensions (H x W x D): 613mm x 397mm x 362mm (24.14" x 15.64" x 14.26")
  • Net Weight: 19.8 kg (43.7 lbs)
  • Shipping Weight: 22.1 kg (48.6 lbs)

Data_Sheet_91401_File_1.pdf
