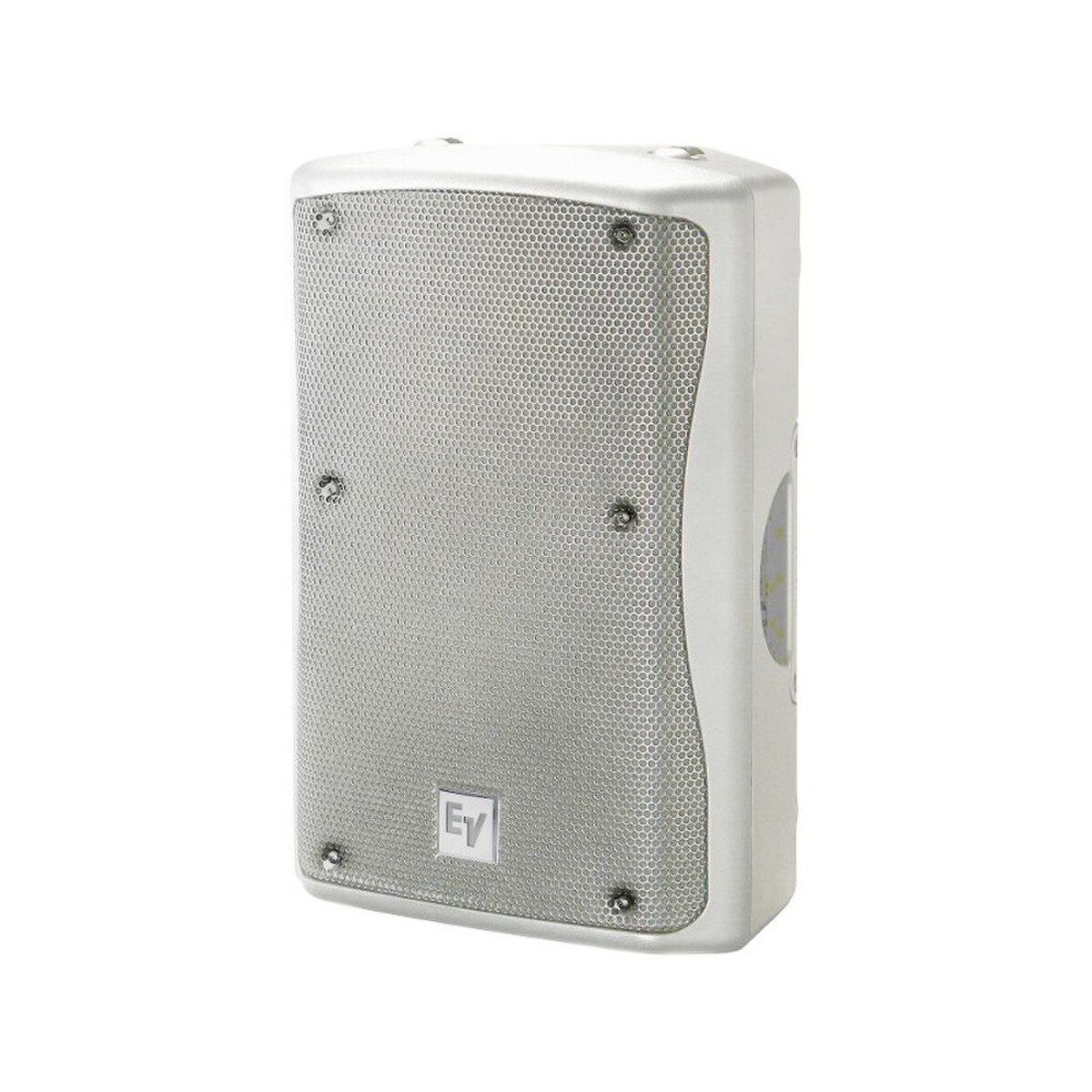

Electro-Voice Two-Way Full-Range Loudspeaker - 12in - 600W 60x60 - WHT
Details
The Electro-Voice Zx3 is the new standard of no compromise audio performance and versatility in a simple to use, compact package.
Features:
- DVX3121 12" LF Transducer with Forced Air Cooling
- ND2 2" Voice Coil, 1" Exit Neodymium Compression Driver
- 90° x 50° Coverage Pattern
- 600W Continuous (2400W Peak) Power Handling
- High Sensitivity, 131 dB Maximum SPL
- Adjustable Monitor Angle (45° or 55°)
- 2 Anchor Plates for Single Stud Fittings and 7 Integral Suspension Points
- Available in Black or White
- Passive/Biamp Selectable
- Full Line of Accessories
Specifications:
- Freq. Response (-3 dB): 58 Hz - 15 kHz
- Freq. Range (-10 dB): 48 Hz - 20 kHz
- Rec. Hipass Frequency: 50 Hz
- Axial Sensitivity: 97 dB (1W/1m)
- Max. Calculated SPL: 131 dB
- Horizontal Coverage: 90°
- Vertical Coverage: 50°
- Power Handling (Passive): 600W Continuous, 2400W Peak
- LF Power Handling (Biamp): 500W Continuous, 2000W Peak
- HF Power Handling (Biamp): 40W Continuous, 160W Peak
- LF Transducer: DVX3121, 12" (305mm) Driver
- HF Transducer: ND2, 1" (25.4mm) exit Neodymium Compression Driver
- Crossover Frequency: 2 kHz
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 6.2 Ohms
- Connectors: (2) Neutrik Speakon NL4's
- Enclosure Material: Polypropylene Structural Foam
- Suspension: Enclosure has locations for 4 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure
- Grille: Polyester Powder Coated, 16GA
- Galvanized Steel, with Rotatable Logo
- Dimensions (H x W x D): 613mm x 397mm x 362mm (24.14" x 15.64" x 14.26")
- Net Weight: 19.8 kg (43.7 lbs)
- Shipping Weight: 22.1 kg (48.6 lbs)
