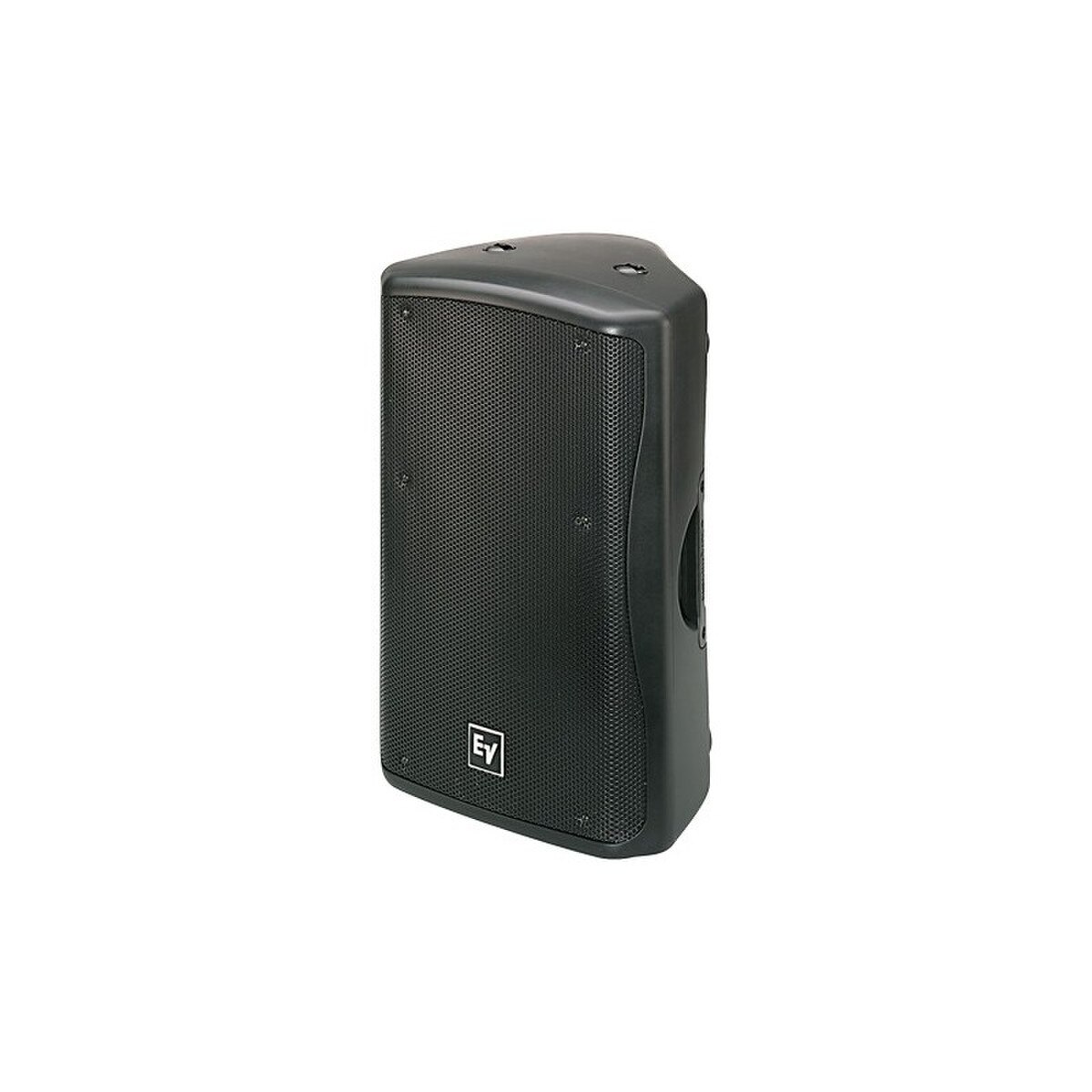

Electro-Voice Two-Way Full-Range Loudspeaker - 15in - 600W 60x60 - BLK

The Electro-Voice Zx5 is the new standard of no compromise audio performance and versatility in a simple to use, compact package.

At its heart are the transducers. First is the DVX3150 high performance low frequency transducer. EV used advanced computer aided design techniques to create forced air, directional voice coil cooling for high power and efficiency. Finite element analysis was used to optimize the suspension and magnetic structure for long, linear travel to provide low distortion and greater LF extension. These features and details, such as forged magnetic components and special materials, provide reliability with a 500W power rating in a lightweight transducer. Next is the ND2, a 2-inch voice coil compression driver based on neodymium motor structure to allow for maximum output while reducing size and weight to a minimum. Its precision phasing plug and titanium diaphragm provide better HF performance, while the integral heatsink provides cooling for high power output.

Features:

• DVX3150 15" LF Transducer with Forced Air Cooling
• ND2 2" Voice Coil, 1" Exit Neodymium Compression Driver
• 60 degrees x 60 degrees Coverage Pattern
• 600W Continuous (2400W) Power Handling
• High Sensitivity, 132 dB Maximum SPL
• Adjustable Monitor Angle (45 degrees or 55 degrees )
• 3 Anchor Plates for Single Stud Fittings and 10 Integral Suspension Points
• Available in Black or White
• Passive/Biamp Selectable
• Full Line of Accessories

Specifications:

• Freq. Response (-3 dB): 58 Hz - 18 kHz
• Freq. Range1 (-10 dB): 39 Hz - 20 kHz
• Rec. Hipass Frequency: 36 Hz
• Axial Sensitivity: 98 dB (1W/1m)
• Max. Calculated SPL: 132 dB
• Horizontal Coverage: 60 degrees
• Vertical Coverage: 60 degrees
• Power Handling (Passive): 600W Continuous, 2400W Peak
• LF Power Handling (Biamp): 500W Continuous, 2000W Peak
• HF Power Handling (Biamp): 40W Continuous, 160W Peak
• LF Transducer: DVX3150, 15" (381mm) Driver
• HF Transducer: ND2, 1" (25.4mm) exit Neodymium Compression Driver
• Crossover Frequency: 1.5 kHz
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6.5 Ohms
• Connectors: (2) Neutrik Speakon NL4's
• Enclosure Material: Polypropylene Structural Foam
• Suspension: Enclosure has locations for 5 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure
• Grille: Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
• Environmental Spec: IEC 529 IP24 / IP44 (PI Version)
• Dimensions (H x W x D): 692mm x 446mm x 411mm (27.26" x 17.57" x 16.16")
• Net Weight: 22.2 kg (49.0 lbs)
• Shipping Weight: 26.0 kg (57.4 lbs)
