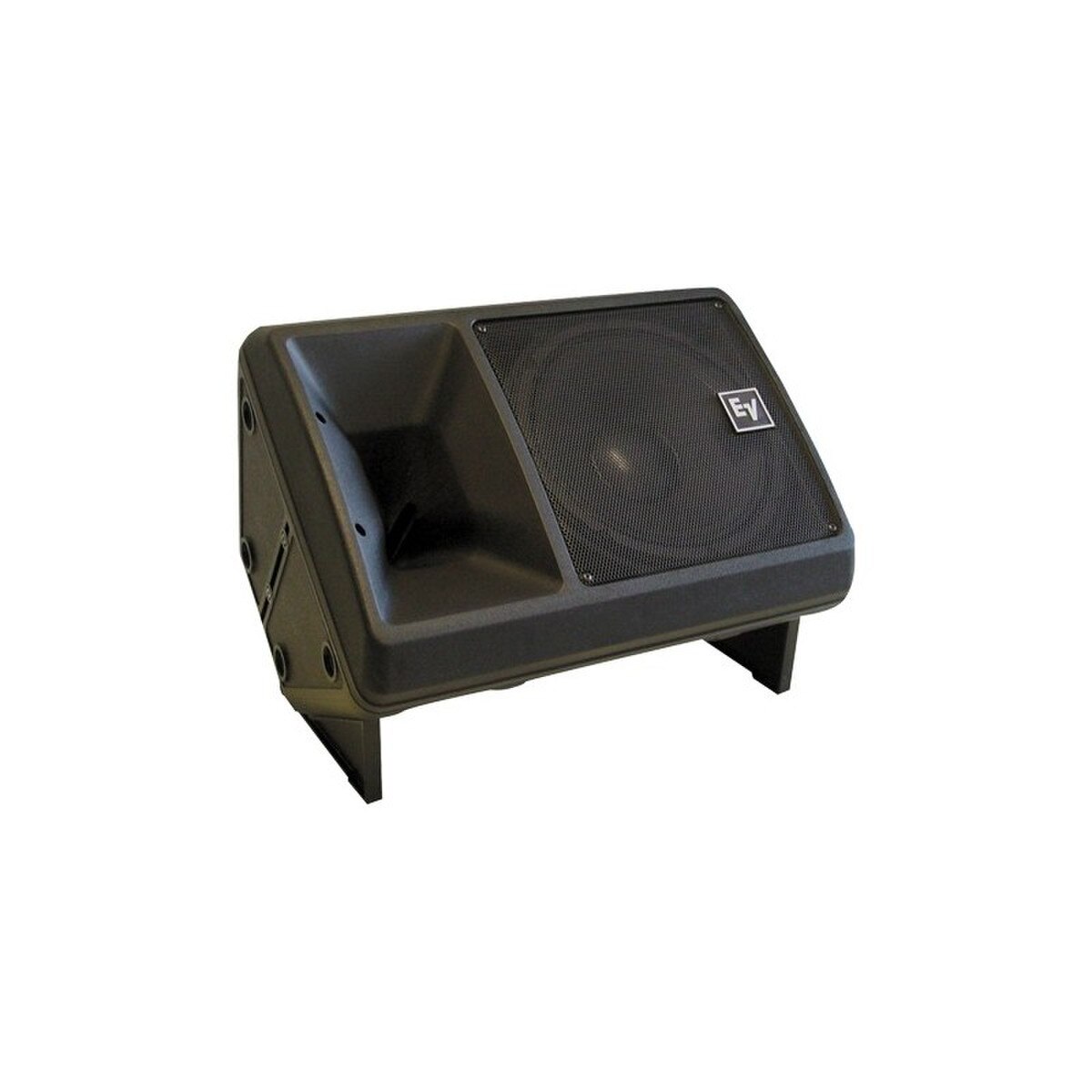

Electro-Voice Two-Way Full-Range Loudspeaker - 65 x 65 - 300W - 12in.

Features:

• Compact, portable sound reinforcement
• Designed for use alone or in arrays
• Cast-frame DL12BFH woofer
• 1.25-inch DH3/2010A titanium HF compression driver
• 65º x 65º Constant-directivity Varipath™ horn
• Ring-Mode Decoupling (RMD™) for increased intelligibility
• Power handling: 300 W continuous, 1200 W peak
• Dual Neutrik Speakon high-current connectors
• Trapezoidal black or white polypropylene enclosure
• Rubber feet and mating sockets for stacking
• Integral handles, pole mount

Specifications:

• Axial Sensitivity (SPL, 1 W @ 1 m): 99 dB
• Chassis Size: 304.8 mm (12")
• Color: Black, White
• Directivity Index: 11.1 dB +2.4/-4.1 dB
• Input Connections: 2 four-pin Speakon
• Speaker Type: Full-range, Mid-High, Two-Way
• Frequency Response (-10 dB): 50 - 20000 Hz
• Internal Crossover: Yes
• Sensitivity 1 W/1 m: 99 dB
• Max. SPL/1m (calc): 131/123 dB Low Z/100V
• Coverage (Nominal -6 dB) H: 65° Const.-dir. horn
• Coverage (Nominal -6 dB) V: 65° Const.-dir. horn
• System Power Handling (Continuous/Program/Peak): 300/1200 Watts Long-Term/Short-Term
• LF Transducer: 12-inch DL12BFH
• HF Transducer: 1.25-inch DH3/2010A
• Crossover Frequency: 1500 Hz
• Nominal Impedance (Passive): 8Ω
• Minimum Impedance: 5Ω
• Flying: Yes
• Outdoor: No
• Height: 586 mm (23.07")
• Width: 429 mm (16.89")
• Depth: 312 mm (12.28")
• Weight Net: 14.5 kg (31.97 lbs)
