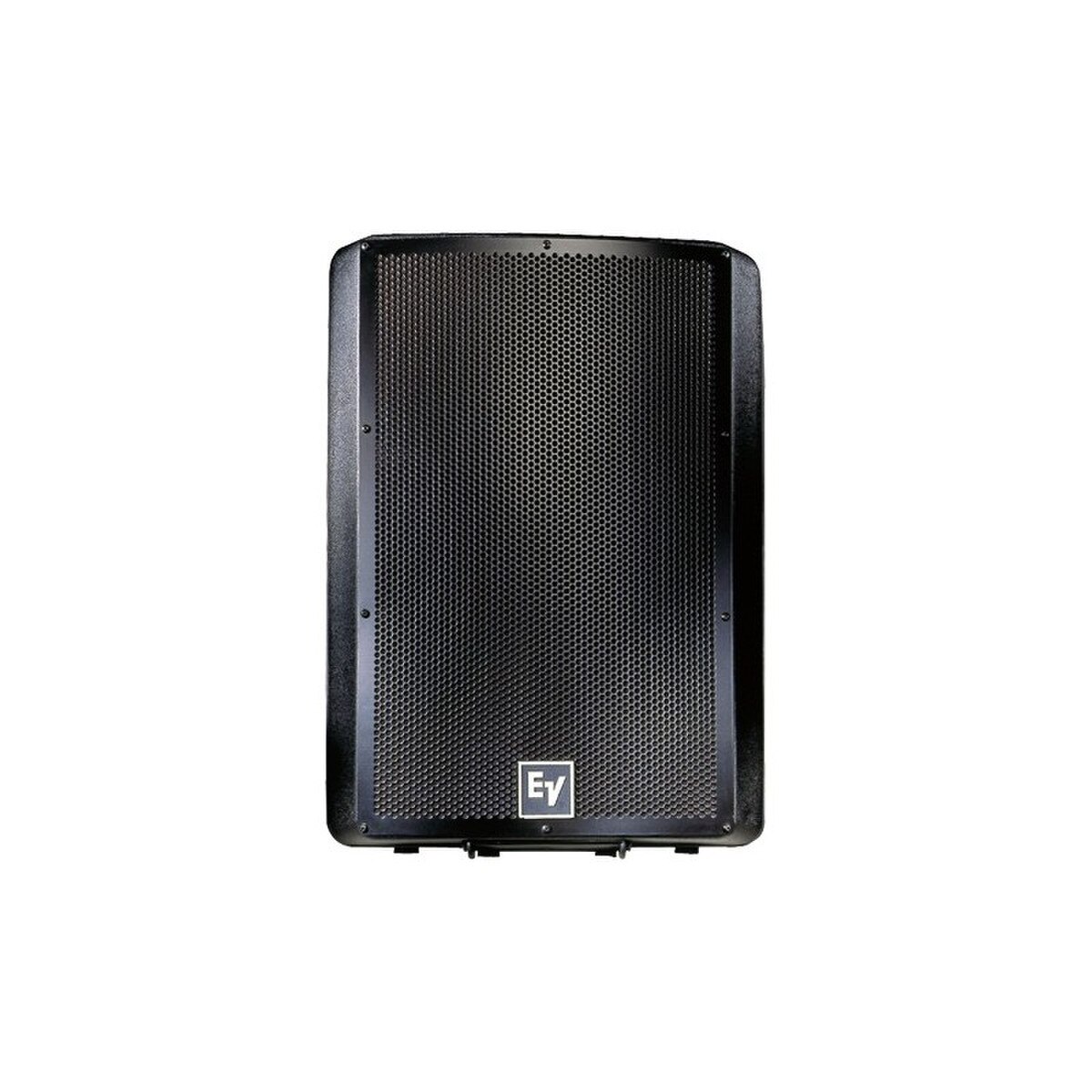

Electro-Voice Two-Way Full-Range Loudspeaker - 65 x 65 - 300W / 1200W - Weather Resistant - 12in.

The Sx300PI and Sx300PIX are continuations of the popular the Sx-series offering the added value of weather-resistant cabinets. The Electro-Voice Sx300PI is a 300-watt, 12-inch, two-way, high-efficiency, constant directivity speaker system for permanent installation. Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system for permanent installation where weather resistance is needed. The Sx300PIX is the same as the Sx300PI with the addition of an AT100 transformer.

Features:

• Sx300 performance with enhanced weather-resistance
• PIX version has multi-tap transformer for 70 or 100 V use
• Ideal for installation, alone or in arrays
• 1.25-inch DH3/2010A titanium HF compression driver
• 65º x 65º Constant-directivity Varipath™ horn
• Ring-Mode Decoupling (RMD™) for increased intelligibility
• Power handling: 300 W continuous, 1200 W peak
• Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
• Trapezoidal enclosure of high-impact polypropylene
• Rubber feet and mating sockets for stacking
• Integral handles, pole socket, suspension points
• Available in black or white

Specifications:

• Axial Sensitivity (SPL, 1 W @ 1 m): 99 dB
• Chassis Size: 304.8 mm (12")
• Color: Black, White
• Directivity Index: 11.1 dB +2.4/-4.1 dB
• Input Connections: 2 four-pin Speakon
• Frequency Response (-10 dB): 50 - 20000 Hz
• Internal Crossover: Yes
• Sensitivity 1 W/1 m: 99 dB
• Max. SPL/1m (calc): 131/123 dB Low Z/100V
• Coverage (Nominal -6 dB) H: 65° Const.-dir. horn
• Coverage (Nominal -6 dB) V: 65° Const.-dir. horn
• System Power Handling (Continuous/Program/Peak): 300//1200 Watts
• LF Transducer : 12-inch DL12BFH
• HF Transducer: 1.25-inch DH3/2010A
• Crossover Frequency: 1500 Hz
• Nominal Impedance (Passive): 8Ω
• Minimum Impedance: 5Ω
• Flying: Yes
• Outdoor: Yes
• Height: 586 mm (23.07")
• Width: 429 mm (16.89")
• Depth: 312 mm (12.28")
• Weight Net: 14.5 kg (31.97 lbs)
