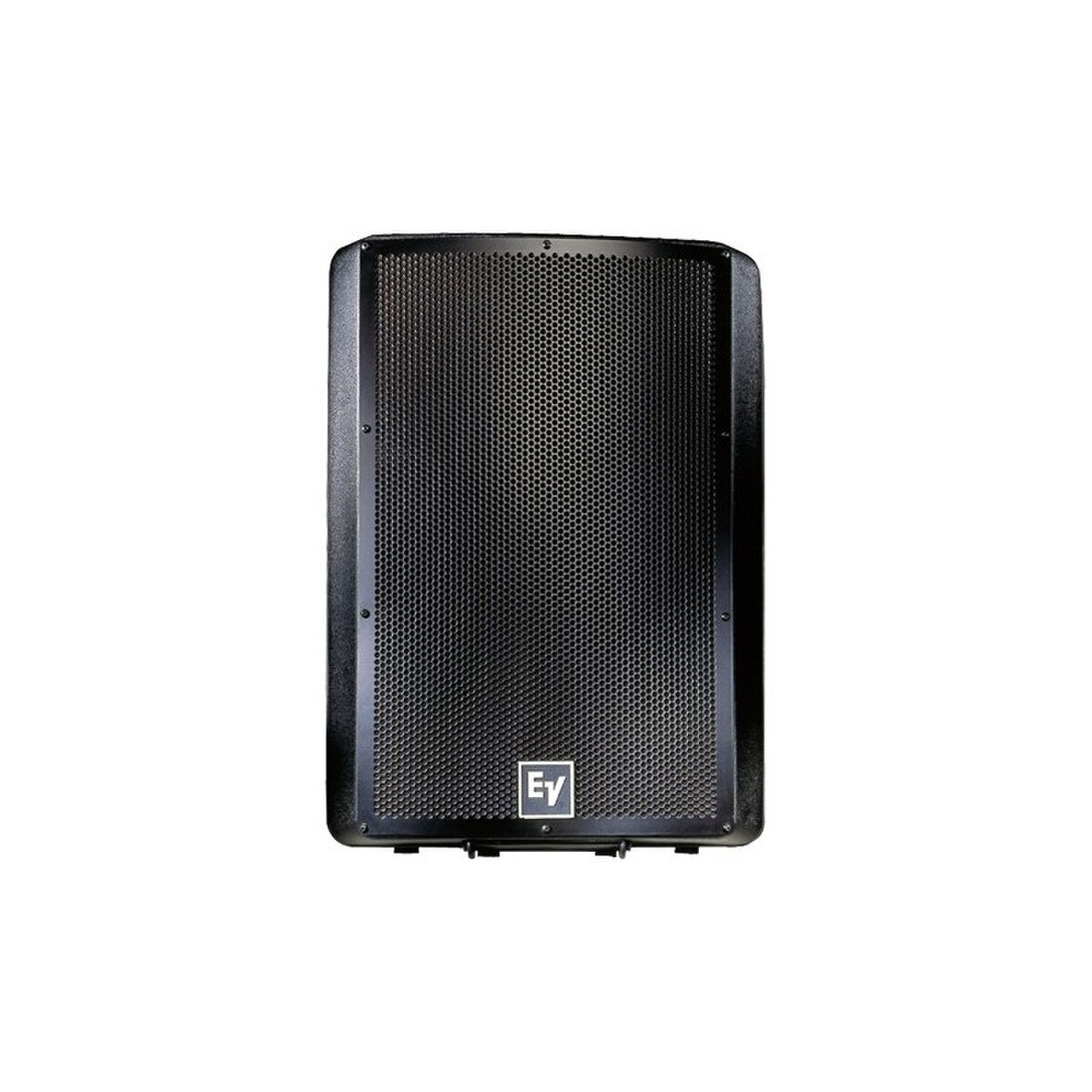

Electro-Voice Two-Way Full-Range Loudspeaker - 65 x 65 - 300W / 1200W - Weather Resistant - 12in. - 100W Transformer
Details
The Sx300PI and Sx300PIX are continuations of the popular the Sx-series offering the added value of weather-resistant cabinets. The Electro-Voice Sx300PI is a 300-watt, 12-inch, two-way, high-efficiency, constant directivity speaker system for permanent installation. Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system for permanent installation where weather resistance is needed. The Sx300PIX is the same as the Sx300PI with the addition of an AT100 transformer.
Features:
- Sx300 performance with enhanced weather-resistance
- PIX version has multi-tap transformer for 70 or 100 V use
- Ideal for installation, alone or in arrays
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath™ horn
- Ring-Mode Decoupling (RMD™) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
- Trapezoidal enclosure of high-impact polypropylene
- Rubber feet and mating sockets for stacking
- Integral handles, pole socket, suspension points
- Available in black or white
Specifications:
- Axial Sensitivity (SPL, 1 W @ 1 m): 99 dB
- Chassis Size: 304.8 mm (12")
- Color: Black, White
- Directivity Index: 11.1 dB +2.4/-4.1 dB
- Input Connections: 2 four-pin Speakon
- Frequency Response (-10 dB): 50 - 20000 Hz
- Internal Crossover: Yes
- Sensitivity 1 W/1 m: 99 dB
- Max. SPL/1m (calc): 131/123 dB Low Z/100V
- Coverage (Nominal -6 dB) H: 65° Const.-dir. horn
- Coverage (Nominal -6 dB) V: 65° Const.-dir. horn
- System Power Handling (Continuous/Program/Peak): 300//1200 Watts
- LF Transducer : 12-inch DL12BFH
- HF Transducer: 1.25-inch DH3/2010A
- Crossover Frequency: 1500 Hz
- Nominal Impedance (Passive): 8Ω
- Minimum Impedance: 5Ω
- Flying: Yes
- Outdoor: Yes
- Height: 586 mm (23.07")
- Width: 429 mm (16.89")
- Depth: 312 mm (12.28")
- Weight Net: 14.5 kg (31.97 lbs)
Data_Sheet_91442_File_1.pdf
