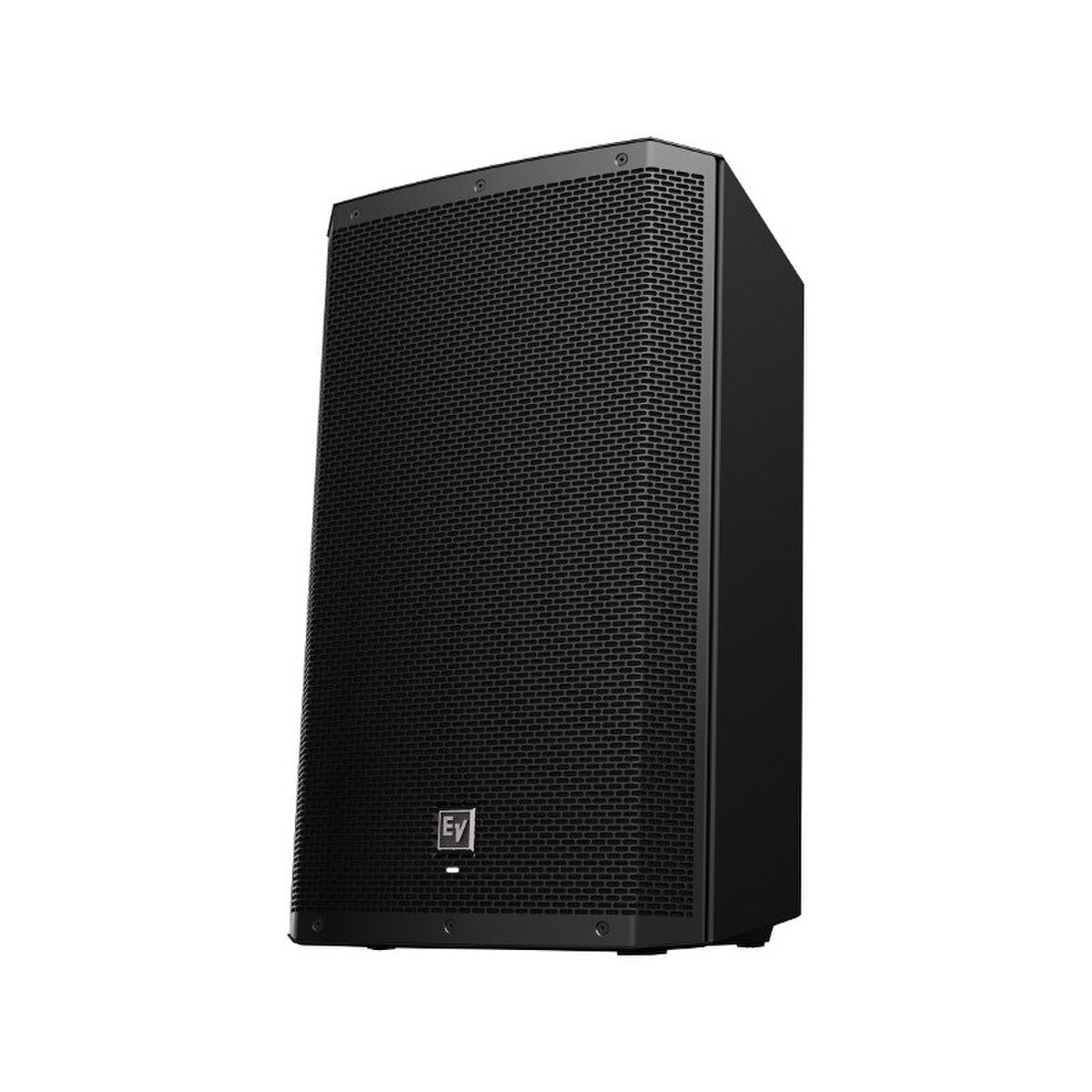

Electro-Voice Two-Way Passive Loudspeaker - 12in.
Details
Big sound doesn't need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
Features:
- 12" woofer for low-end punch in a compact enclosure and 1.5" high-frequency
- titanium compression driver
- 55 Hz – 20 kHz frequency range
- 250 W continuous and 1000 W peak power handling
- 95 dB SPL sensitivity; 125 dB max SPL
Specifications:
- Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
- Frequency Range: 55 Hz - 20 kHz
- Maximum SPL: 125 dB
- Nominal Impedance: 8Ω
- Power Handling (Continuous / Peak): 250 / 1000 W
- Frequency Response: 82 Hz - 18 kHz
- Recommended High-Pass Frequency: 40 Hz
- Coverage (Nominal -6 dB) H: 90 degrees
- Coverage (Nominal -6 dB) V: 60 degrees
- LF Transducer: EVS-12K, 300 mm (12") Woofer
- HF Transducer: DH-1K
- Crossover Frequency: 2100 Hz
- Minimum Impedance: 7Ω
- Connector Type: Dual NL4
- Enclosure Material: Polypropylene
- Grill: 18 Gauge Steel with Black Powder Coat
- Height: 610 mm (24.02")
- Width: 356 mm (14.02")
- Depth: 356 mm (14.02")
- Weight Net: 14.9 kg (32.85 lbs)
- Shipping Weight: 18 kg (39.68 lbs)
