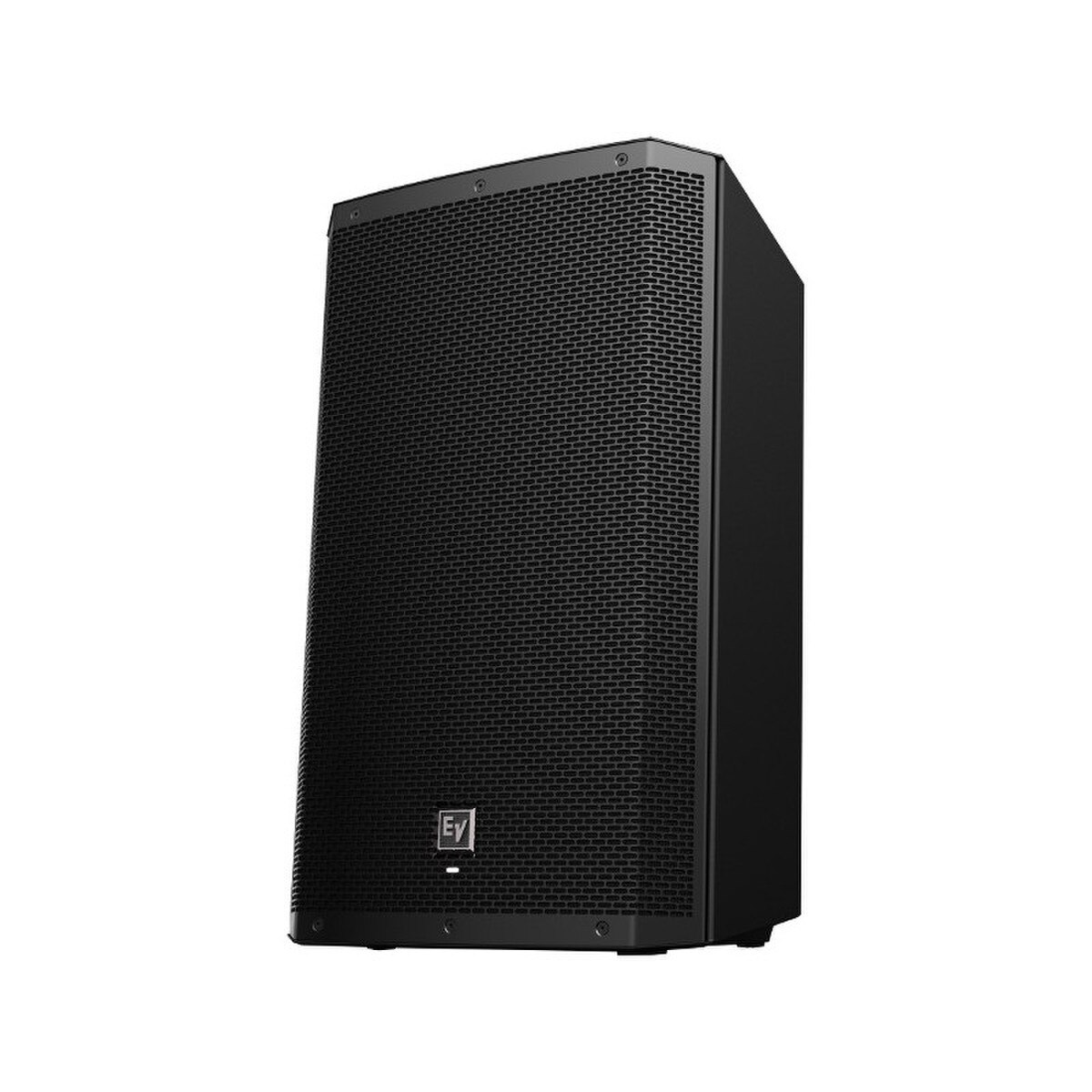

Electro-Voice Two-Way Passive Loudspeaker - 15in.

(0)No Reviews yet
$980.00
SKU: Electro-Voice ZLX-15

Details

The ZLX-15 gives you the confidence of the industry's most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.

Features:

  • 15" woofer for extended low-frequency response and 1.5" high-frequency titanium compression driver
  • 44 Hz – 20 kHz frequency range
  • 250 W continuous and 1000 W peak power handling
  • 96 dB SPL sensitivity; 126 dB max SPL
  • 36.5 lbs (16.6 kg)

Specifications:

  • Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB
  • Frequency Range: 44 Hz - 20 kHz
  • Maximum SPL: 126 dB
  • Nominal Impedance: 8Ω
  • Power Handling (Continuous / Peak): 250 / 1000 W
  • Frequency Response: 56 Hz - 18 kHz
  • Recommended High-Pass Frequency: 40 Hz
  • Maximum SPL (1% THD): 0 dB
  • Coverage (Nominal -6 dB) H: 90 degrees
  • Coverage (Nominal -6 dB) V: 60 degrees
  • LF Transducer: EVS-15L, 380 mm (15") Woofer
  • HF Transducer: DH-1K
  • Crossover Frequency: 1700 Hz
  • Minimum Impedance: 7Ω
  • Connector Type: Dual NL4
  • Enclosure Material: Polypropylene
  • Grill: 18 Gauge Steel with Black Powder Coat
  • Height: 685 mm (26.97")
  • Width: 423 mm (16.65")
  • Depth: 383 mm (15.08")
  • Weight Net: 16.6 kg (36.6 lbs)
  • Shipping Weight: 22 kg (48.5 lbs)

Data_Sheet_91409_File_1.pdf
