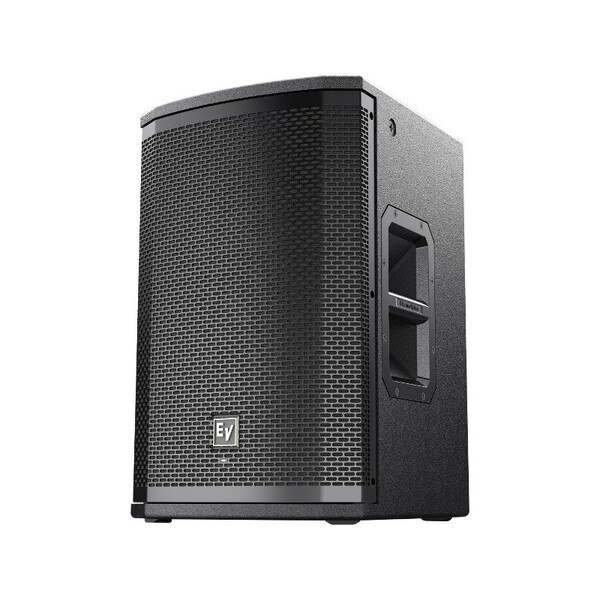

Electro-Voice Two-Way Powered Loudspeaker - 2000W - 10in.

ETX-10P from Electro-Voice is a high-power two-way compact loudspeaker; it can be used in a variety of portable and permanent applications.

The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, selective voicing, protection limiters, EQ modes, and a lockout mode prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate limit.

EV-patented SST (Signal Synchronized Transducers) waveguide design provides uniform coverage and directivity. Waveguides are optimized using advanced simulation software and propriety algorithms for precise control and lowest distortion. EV designed and manufactured transducers include SMX woofer technology using composite cone materials, flux stabilizing rings, and thermal management. This transducer yields lower distortion, smooth response and high SPL. The high-efficiency DH3-B compression driver has a convex diaphragm driving a coherent phase device extending frequency response to 20 kHz. EV’s FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection.

Features:

• 10-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 134 dB peak SPL

Specifications:

• Frequency Range: 65 Hz – 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
• Maximum SPL: 134 peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A Current rating is 1/8 power.
• Power Rating: 2000 W
• Frequency Response: 85 Hz – 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
• Coverage (Nominal -6 dB) H: 90 degrees
• Coverage (Nominal -6 dB) V: 60 degrees
• LF Transducer: SMX2100 254 mm (10 in)
• HF Transducer:DH3-B 1.25-in titanium compression driver
• Crossover Frequency: 1700 Hz
• Connector Type: (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure Material: 18-mm, 13-ply birch plywood with EVCoat
• Grill: 16AWG steel with powdercoat
• Suspension: (8) M10 suspension points
• Height: 526 mm (20.71")
• Width: 330 mm (12.99")
• Depth: 365 mm (14.37")
• Weight Net: 20.3 kg (44.75 lbs)
• Shipping Weight: 22.9 kg (50.49 lbs)
