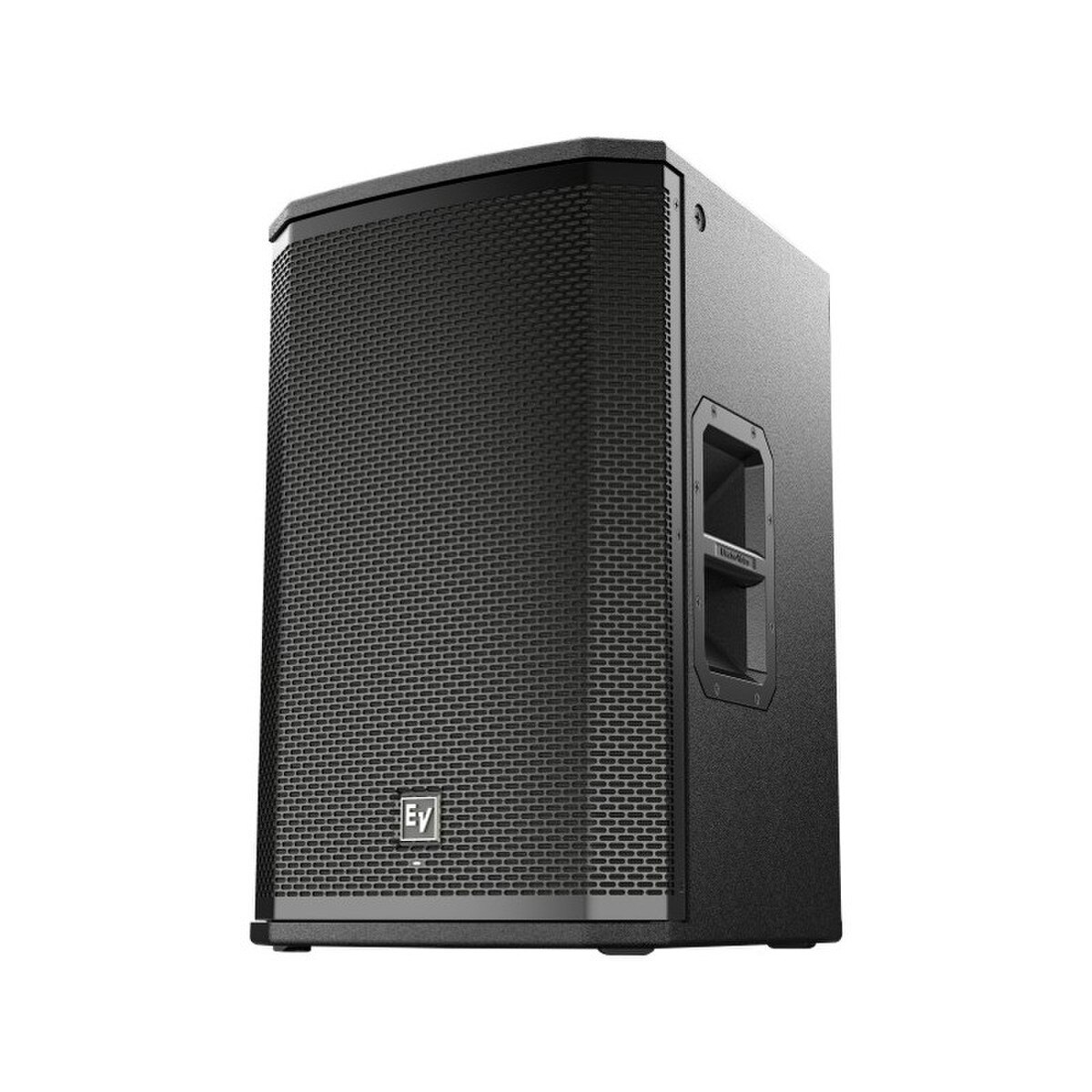

Electro-Voice Two-Way Powered Loudspeaker - 2000W - 12in.

ETX-12P from Electro-Voice is a high-power two-way compact loudspeaker; it can be used in a variety of portable and permanent applications.

The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, selective voicing, protection limiters, EQ modes, and a lockout mode prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate limit. EV-patented SST (Signal Synchronized Transducers) waveguide design provides uniform coverage and directivity. Waveguides are optimized using advanced simulation software and propriety algorithms for precise control and lowest distortion. EV designed and manufactured transducers include SMX woofer technology using composite cone materials, flux stabilizing rings, and thermal management. This transducer yields lower distortion, smooth response and high SPL. The high-efficiency DH3-B compression driver has a convex diaphragm driving a coherent phase device extending frequency response to 20 kHz. EV’s FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection. The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat.

ETX Powered Loudspeakers combine EV-engineered intelligent DSP, high-powered amplifiers and high-efficiency transducers to deliver that legendary EV sound and performance.

Features:

• 12-inch LF SMX woofer
• 1.25-inch HF titanium compression driver
• 2000 W Class-D power amplifier with integrated FIR-Drive DSP
• 135 dB peak SPL

Specifications:

• Frequency Range: 43 Hz – 20 kHz
• Maximum SPL: 135 peak dB
• Power Consumption: 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A
• Power Rating: 2000 W
• Frequency Response: 55 Hz – 20 kHz
• Coverage (Nominal -6 dB) H: 90 degrees
• Coverage (Nominal -6 dB) V: 60 degrees
• LF Transducer: SMX2120 300 mm (12 in)
• HF Transducer: DH3-B 1.25-in titanium compression driver
• Crossover Frequency: 1600 Hz
• Connector Type: (2) XLR/TRS combo jack and (1) XLR link output
• Enclosure Material: 18-mm, 13-ply birch plywood with EVCoat
• Grill: 16AWG steel with powdercoat
• Suspension: (8) M10 suspension points
• Height: 613 mm (24.13")
• Width: 381 mm (15")
• Depth: 400 mm (15.75")
• Weight Net: 23.6 kg (52.03 lbs)
• Shipping Weight: 26.8 kg (59.08 lbs)
