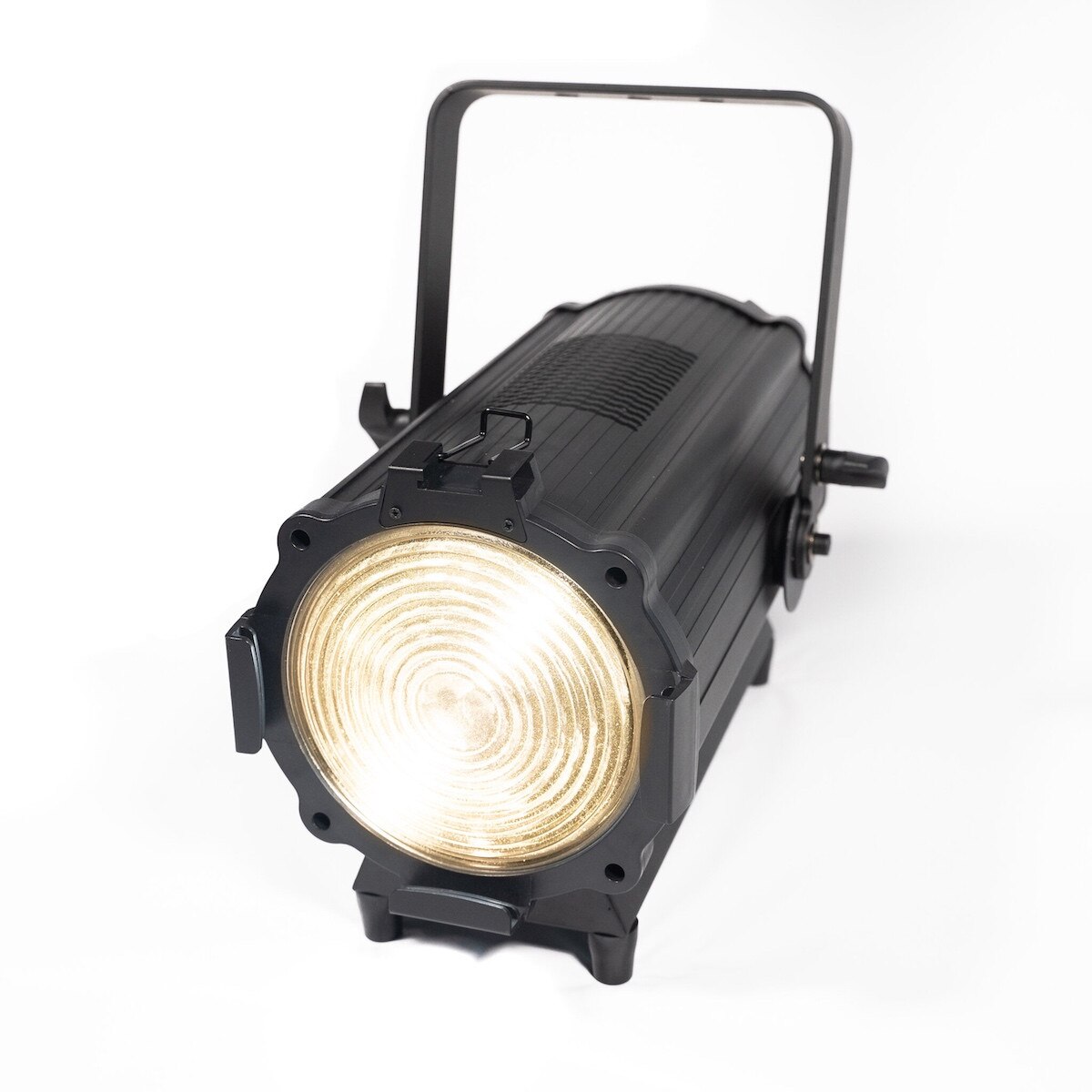

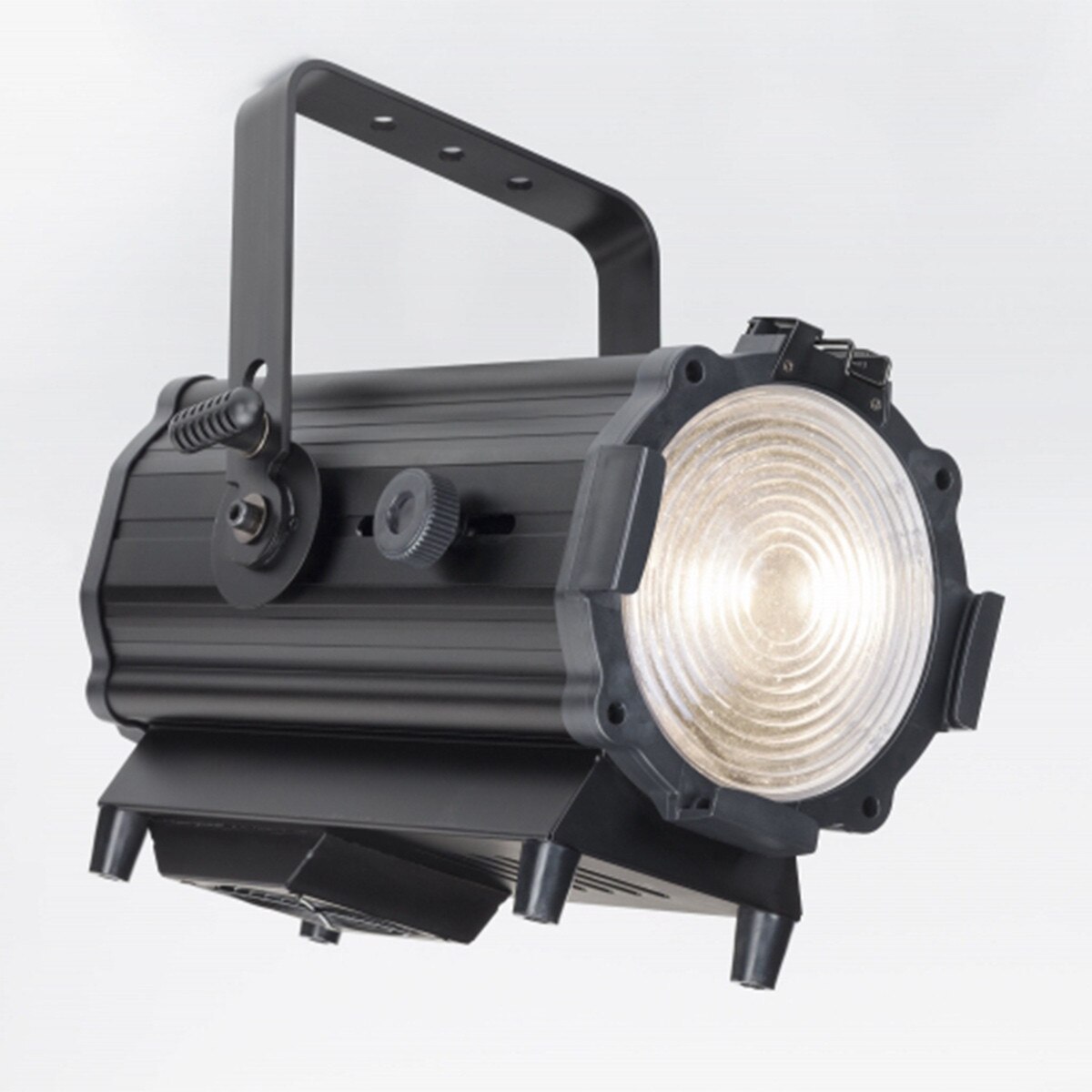

ElektaLite Stingray Cool White (5600K) LED Fresnel
Details
Intensity for its range. At the heart of the elektraLite Fresnel is a newly designed 300 watt COB LED.
The elektraLite Fresnel features a powerful, well‐rounded LED lighting fixture with a rugged design, the elektraLite Fresnel is a workhorse, ready to bring rich, bright white light to a wide variety of public spaces including stages, classrooms, galleries, worship spaces, studios, event spaces, live event, and production environments.
Features:
- Single COB 300 watt LED giving rich consistent warm white at a balanced 5,600K color temperature for true theatrical white light with no hot spot.
- 100% no step dimming and no pop or bump at beginning or end of dimming curve.
- Manual zoom from 15 to 50 degrees.
- Exclusive “cool to touch” housing
- Easy to use display menus for DMX or static control

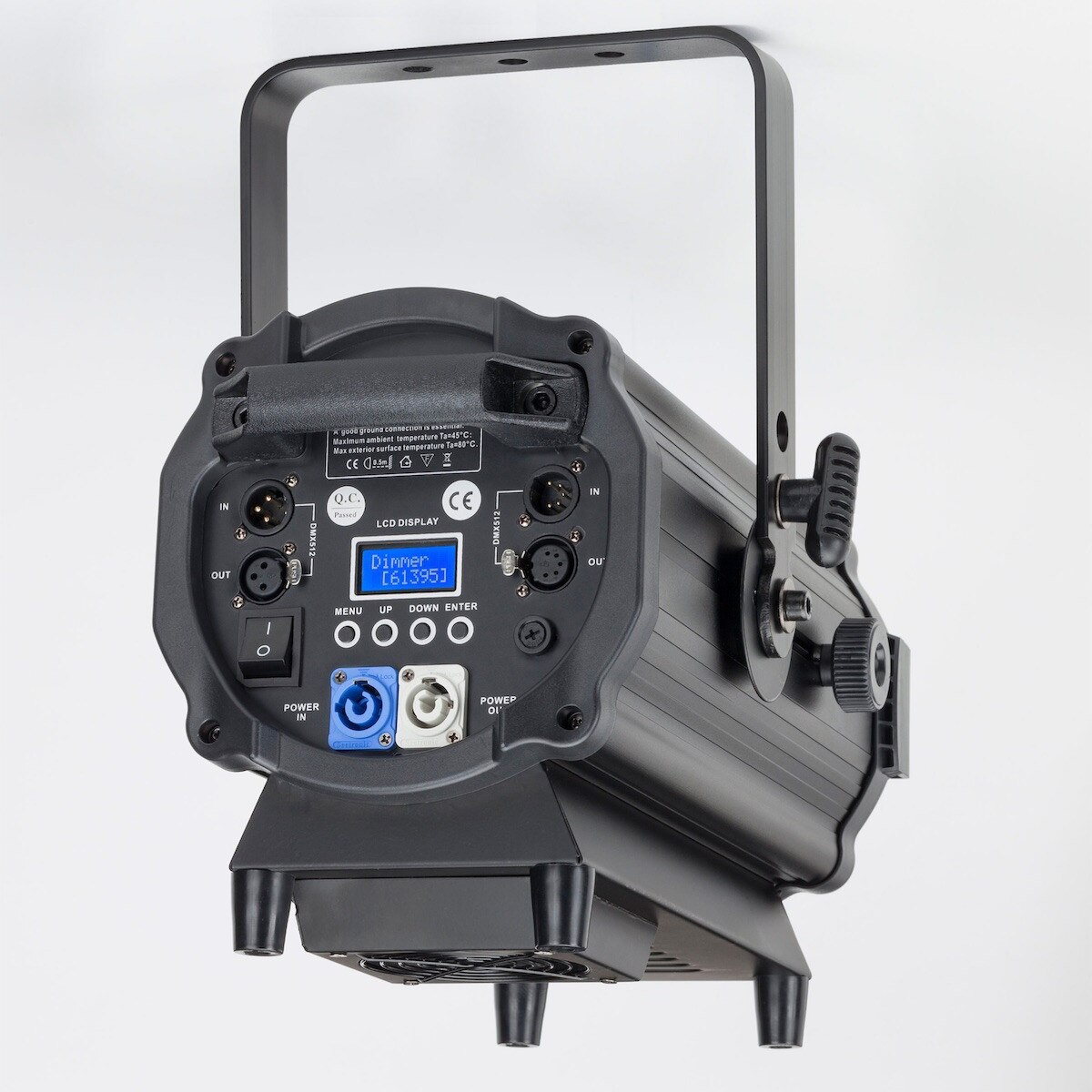

- On/off switch and Powercon in and out connectors, 5‐pin XLR connectors in and out
Specifications:
- Power Consumption: 400 watts (1.9A), Maximum five fixtures per 20A circuit.
- Electrical: Multi‐voltage; AC 100‐250V – 50/60Hz
- Housing: Aluminum monocoque design
- Materials: Corrosion resistant hardware
- Yoke: rigid flat steel
- Light Engine: Single 300W COB LED emitter
- Refresh Rate: Variable
- CRI: 91
- Optics/Lensing(s): Variable PC lensing
- Control: DMX‐512A (in and thru) via 5‐pin XLR
Stingray Fresnel Data Sheet
Stingray-Cool-White-300w-Photometrics-Guide.pdf
