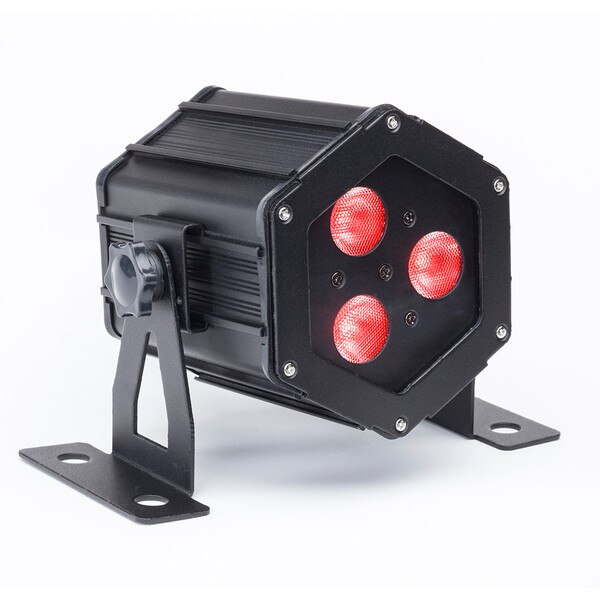

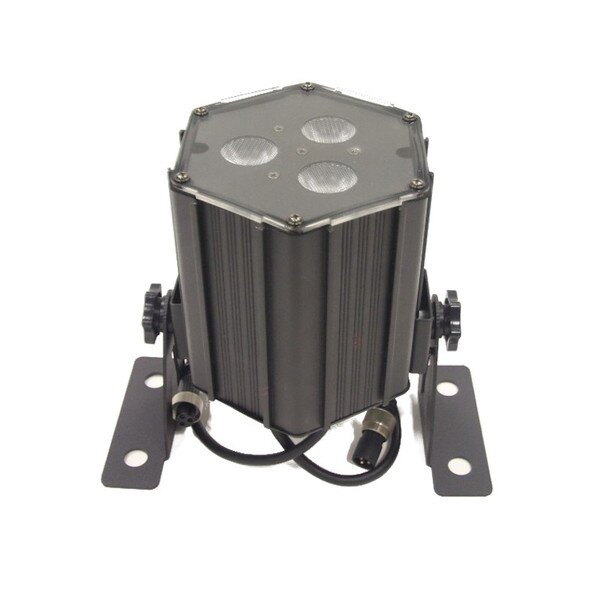

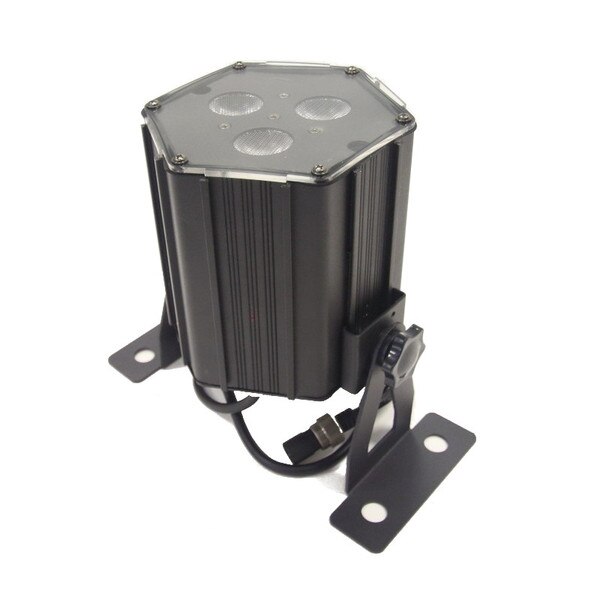

ElektraLite SLA Retina RGBW Mini LED Fixture

Designed to be compact and efficient, the new ElektraLite SLA Retina is a hard-working mini LED lighting fixture ideal for every designers’ toolbox.

With a moderate 25-degree beam spread, the SLA Retina provides ample coverage in its range, while still allowing for highlighting and Fresnel-like spot coverage of close applications. Intended for durability, the elektraLite SLA Retina is rated for outdoor use and uses IP68 cable connectivity, because we know that sometimes things get wet, and occasionally your cables will end up in a puddle. To add to its durability, the SLA Retina uses UV-stabilized cable that can take both harsh coastal sunlight and high altitude intensity. Originally designed as a “Show Lighting Accent” (SLA) fixture, the elektraLite SLA Retina is purposefully small in size to be hidden in corners, coves, set-pieces, scenery, and in portable stage applications.

The SLA comes standard with two individual yoke arms which allow the fixture to be hung from above, permanently mounted to a surface, or placed on the ground.

Each fixture includes the following accessories:

• (2) 120° swivel trunnion / mounting foot / wall bracket (2) 9” integrated power cable with IP68 connector [in and thru – 1M / 1F]
• (2) 9” integrated power cable with IP68 connector [in and thru – 1M / 1F]
• (2) 9” integrated data cable with IP68 connector [in and thru – 1M / 1F]
• (1) 12” Edison to IP68 connector Power Adapter (ELE724-AP)
• (1) 12” 5-pin DMX to IP68 connector Data Adapter (ELE724-AD)

Features:

• Quad-LED technology; utilizing three 15-watt quad LED’s
• Compact design fits perfectly in set pieces and scenery
• Flicker-free on camera operation

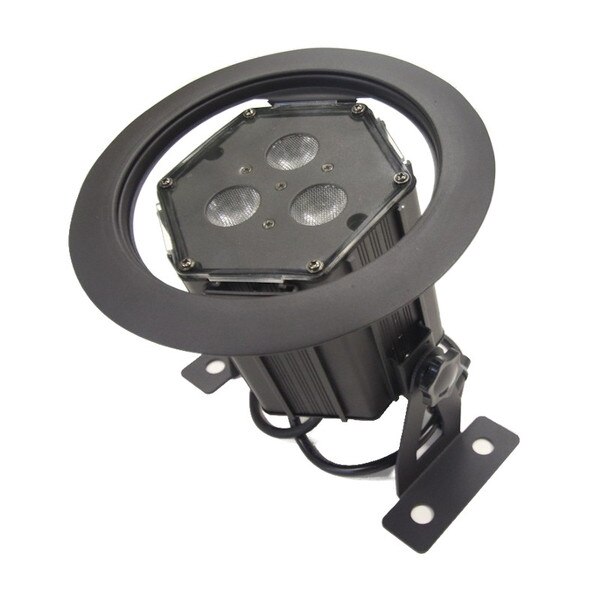

• A flush ceiling ring adapter can be purchased for mounting in the fixture in a hard ceiling
• RGBW quad LED’s, including 5600K white, for crisp, bright, balanced white light
• Delivers more than 1,400 lumens in just a small 5” hexagon package

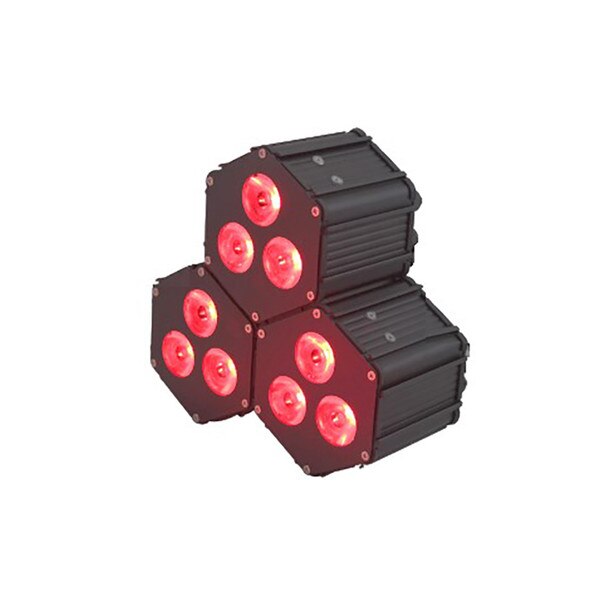

• Fixture can be locked in multiple formats to create an array, including straight line, hexagonal, or triangular shapes
• Manual operation in either a static look or with in-built programs, or control via DMX to produce your own custom program

Specifications:

• Power Consumption: 55 watts (0.46A)

Electrical:

• Multi-voltage; AC 100-250V – 50/60Hz
• PG7 power (in and thru) connectors
• Housing: Black anodized aluminum
• Materials: Corrosion resistant hardware
• Yoke: Rigid flat steel
• Light Engine: Three CREE 15-watt quad-LED emitters
• Refresh Rate: >800Hz
• CRI: 91
• Optics/Lensing(s): Diffraction Lensing
• Control: DMX-512A (in and thru) via 5-pin XLR

Ratings/Certifications:

• ETL listing to UL1573
• IP65

Physical – L 5.75″ W 4.5″ H 5″

Weight – 1.3 lbs / 0.6 Kgs

SLA Retina Data Sheet
