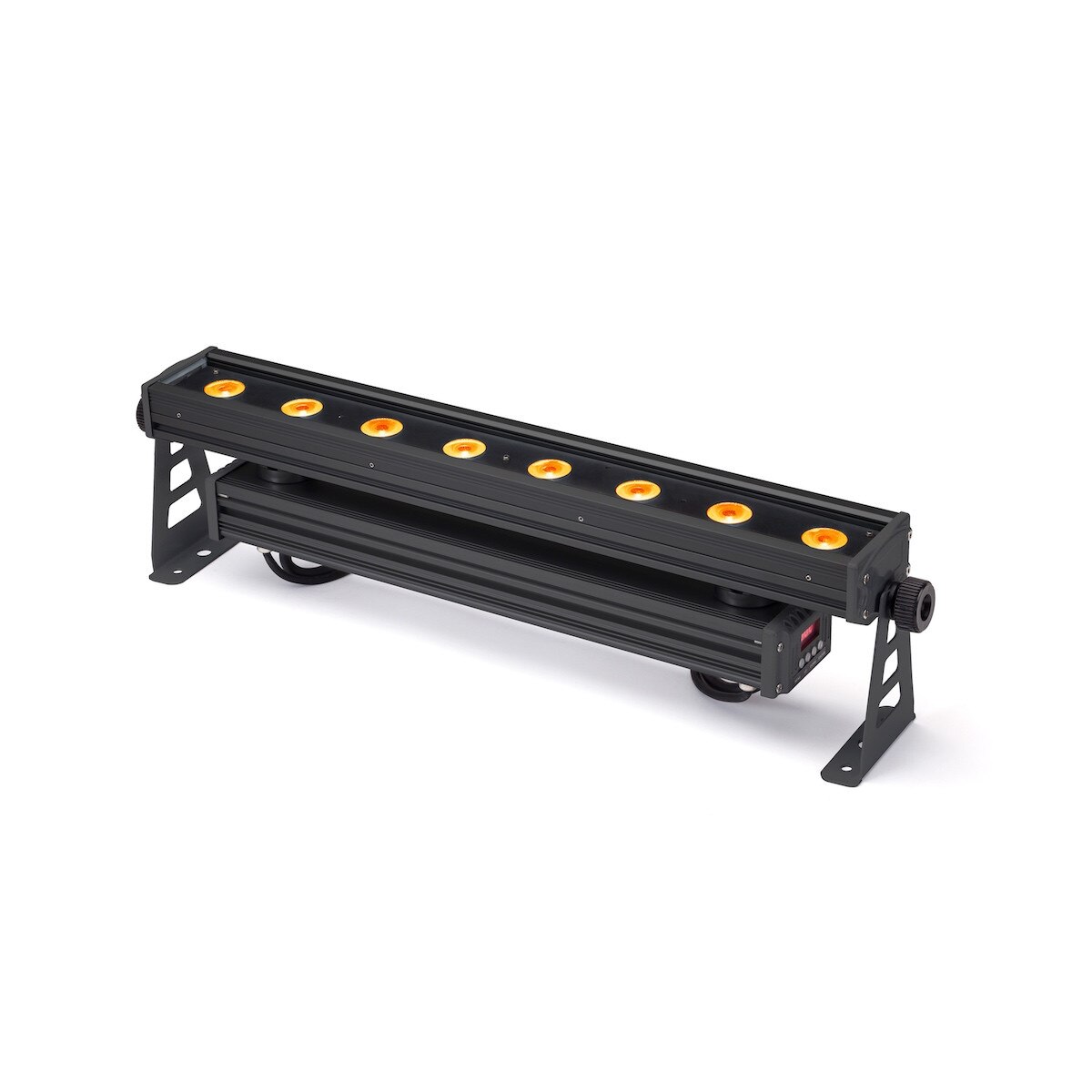

ElektraBar Mini

A powerful, full-featured linear strip fixture, the elektraLite ElektraBar Mini is ready to bring rich vibrant color at a professional level. At the heart of the elektraLite ElektraBar Mini are eight powerful 12-watt 6-in-1 LED’s, consisting of a red, green, blue, white, amber, and indigo component.

The ElektraBar Mini features individual control of each pixel, allowing for 16 million colors on eight different LED pixels. With precision spacing, the fixture is also ideal for low-resolution pixel mapping and video wall applications. The elektraLite ElektraBar Mini is designed to deliver rich, vibrant colors you expect from an LED fixture, while still providing true, brilliant, tunable white. By mixing color internally, the ElektraBar Mini’s sophisticated diffraction lensing system provide true, blended, single-color output. Because of this, the color range for pastel and deep blues and purples is intensified with the indigo component.

Features:

• Utilizes eight individually controllable 12‐watt 6‐IN‐1 LED’s
• Rich, vivid red, blue, green and white, with added amber for true white color toning, and indigo for pastel blending and well‐rounded color saturation
• Individual control of each pixel, allowing 16 million colors on eight different LED pixels; ideal for low‐resolution pixel mapping applications
• Trunions allow for floor mount as well as surface mounting with adjustable 120 degree swivel
• Sophisticated diffraction lensing system provide true,  blended, single‐color output
• Up to twelve fixtures can be connected on one 20A circuit, and can be run in stand‐alone or master/slave configuration, all with or without a control source, for fast, effective, and efficient operation
• Available glare shield for beam control and focusing

Specifications:

Power Consumption                         – 140 watts (1.4A)
Electrical                                            – multi-voltage; AC 100-240V – 50/60Hz
Housing                                             – black aluminum
Materials                                            – corrosion resistant hardware
Yoke                                                   – rigid flat steel
Light Engine                                      – eight 12-watt LED emitters
Refresh Rate                                      – >800Hz
CRI                                                     – 92
Optics / Lensing(s)                             – Diffraction Lensing
Control                                              – DMX-512A (in and thru)
Ratings / Certifications                      – IP65 (wet location) Pending ETL listing to UL1573

Physical – L 23.6″ W 3.5″ H 7.8″
Weight – 11.2 lbs / 5.1 Kgs

Accessories:

Each fixture includes the following accessories:

• (2) 120° swivel trunion / mounting feet / wall bracket
• (1) 12″ power input cable
