Elektralite Stingray Fresnel – Variable White

(0)No Reviews yet
$1,924.99
SKU: Elektralite SRAY FRSNL VW

Details

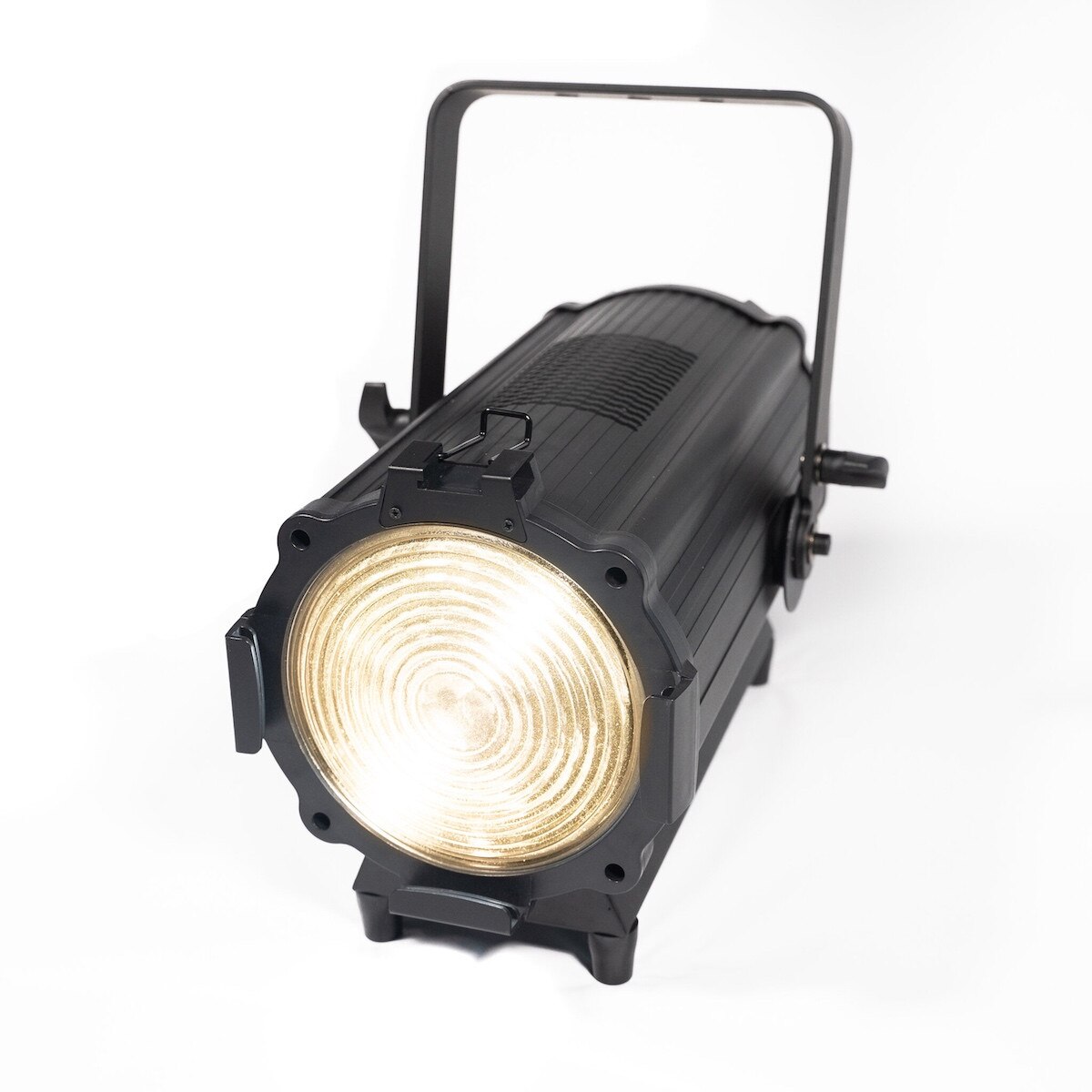

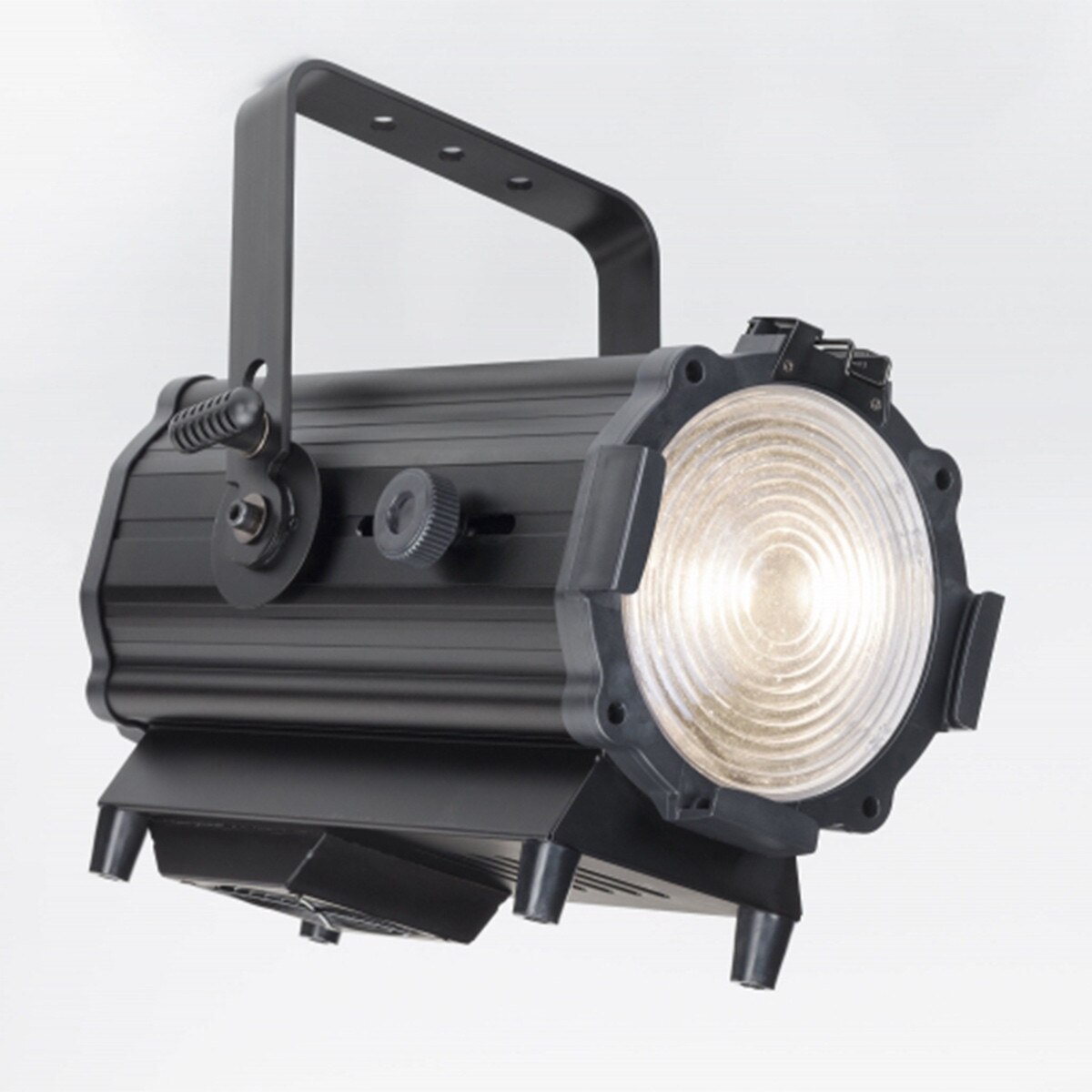

The elektraLite VW 600w Fresnel brings a new look to the Fresnel world. Gone are the projector or discharge lamp problems.
No more hot surfaces. The fixture has elektraLite’s exclusive “cool to touch” housing.
No more lamp changes because the color temperature changed every few hours as the lamp aged.

Using the latest led technology the elektraLite VW 600w Fresnel incorporates a powerful 600watt COB led with a CRI of 95.
The COB single source led is far superior to any multi source led, not only by its power and efficiency, but also the perfect cuts when using barn doors.

The choice of 600w for power allows the Variable White to blend perfectly with our 300w WW or CW fresnels and our 300w WW or CW ellipsoidal fixtures.

The Fresnel VW can output a full 300w of warm white and cool white. The color temperature always evenly displayed across the whole field with no hot spots. The dmx profile of the fixture allows the lighting designer or programmer to instantly dial up color temperatures from 3000k to 6000k in 100k increments.

Added to the feature package is an automatic electronic zoom function from 15 to 50 degrees.
The elektraLite VW Fresnel’s rugged design and 600 watt output make it ideal for use in a wide variety of public spaces including classrooms, galleries, worship spaces, event spaces, live entertainment, broadcast and film studios.

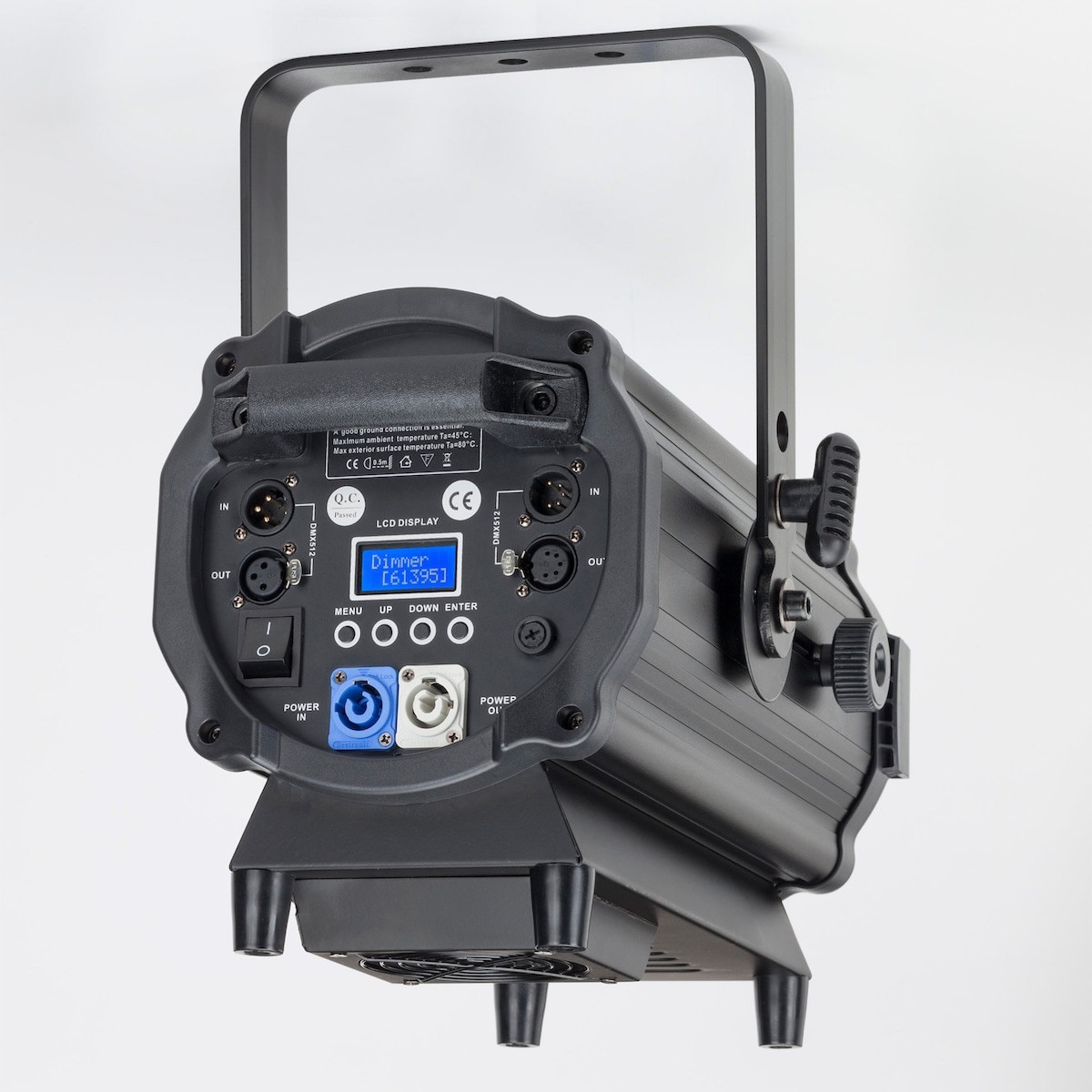

A simple to use onboard control interface allows for easy control for console-free static operation. The elektraLite VW Fresnel has 5pin XLR connectors for both in and thru control using DMX/RDM, Barn doors, a single yoke, safety eye bolt and safety cable are included. Industry standard Powercon in and out connectors allow quick connection and daisy chaining of fixtures.

Features:

  • Single COB 600 watt led VW
  • 100% no step dimming and no pop at the beginning or end of the dimming curve
  • Electronic zoom 15 to 50 degrees
  • Easy to use display Menus for DMX/RDM or manual static control.
  • On/off switch, powercon in and out, 5pin XLRs in and out.
  • 4 way barn doors for perfect cuts
  • New LCD touch screen
  • In built push on/off rotary controls for static/manual operation of the fixture
  • PWM frequency adjustment from 500Hz to 25KHz

Specifications:

Power Consumption           – 700 watts (6.0A)

Electrical                              ‐ multi‐voltage; AC 100‐250V – 50/60Hz

Housing                               ‐ aluminum monocoque design

Materials                             ‐ corrosion resistant hardware

Yoke                                     ‐ rigid flat steel

Light Engine                        ‐ single 600W COB LED emitter (VW)

Refresh Rate                        ‐ variable

CRI                                        ‐ 95

Optics / Lensing(s)              ‐ Variable PC lensing.

Control                                ‐ Manual from back of fixture or via DMX-512 (in and thru) via 5pin XLR connector

Physical – L 17″ W (432mm) 11.5″ (292mm) H 10″ (254mm)

Weight – 20.0 lbs / 9 Kgs
