Eliminator Fantasy FX

At A Glance:

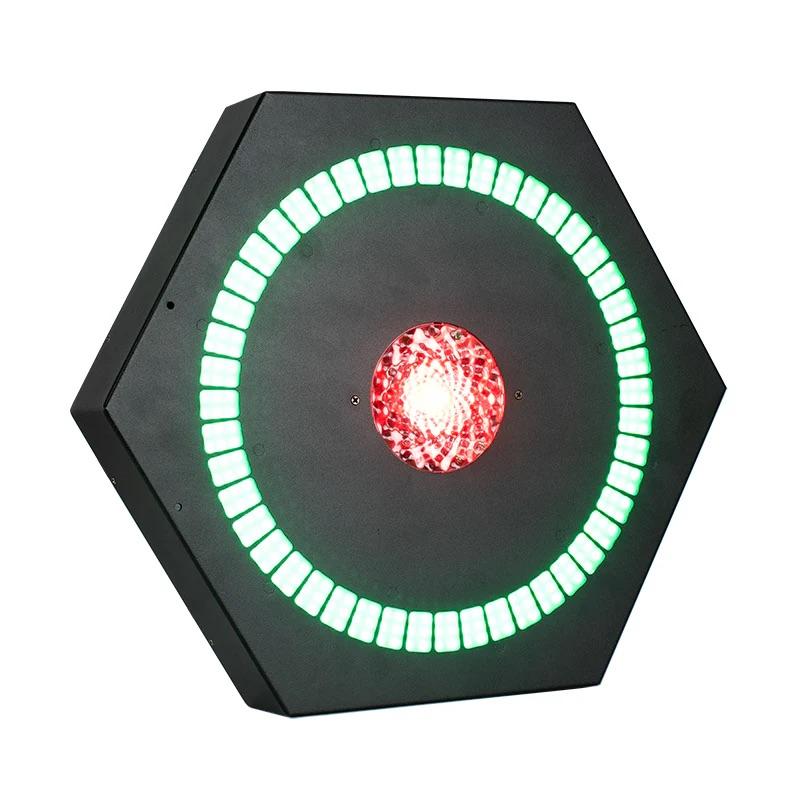

The Eliminator Lighting Fantasy FX is a versatile dual-effect fixture combining a 40W RGBW center beam with a circular halo of 288 RGB SMD LEDs. Compact and lightweight, it features 128 programs, DMX control, 0–100% dimming, and up to 20 strobe flashes per second—perfect for DJs, nightclubs, and fun centers. Energize any event with vibrant, imaginative lighting!

Specifications:

The Fantasy FX is a dynamic, dual-effect lighting fixture designed to transform any event into a vibrant visual experience. Combining a high-powered 40W RGBW center beam with a mesmerizing circular halo of 288 RGB SMD LEDs, this compact and lightweight unit delivers both stunning ACL lens effects and multi-colored chase patterns. Its imaginative design is perfect for DJs, nightclubs, lounges, bars, roller rinks, and fun centers.

Packed with 128 built-in programs, the Fantasy FX offers endless possibilities to energize your event space. Control it with ease using DMX512, primary/secondary, or sound-active modes, while the LCD display simplifies control adjustments. The fixture supports multiple DMX channel modes (7, 15, or 148 channels), providing flexibility for both beginners and professionals.

With features like 0–100% dimming, up to 20 strobe flashes per second, and convection cooling for quiet operation, the Fantasy FX ensures reliable performance. Compact and portable at just 7 lbs. (3.1 kg), it fits seamlessly into any setup. Operating at 100W max power with locking power In/Out connectors to daisy chain one fixture to another, this fixture is as efficient as it is versatile.

Ignite your event’s atmosphere and bring the night to life with the Eliminator Lighting Fantasy FX!

Features:

• Light Source: Center Beam: 1x40W RGBW (Red, Green, Blue & White); Circular Halo: 288x RGB (0.5W, 5050 SMD - Red, Green, Blue)
• 128 Built-In Programs
• Cooling System: Convection Cooled
• Dimming: 0~100%
• Shutter: 0~20 Strobe flashes per second
• Control: DMX512, Primary/Secondary & Sound Active
• DMX Channel Modes: 7, 16 & 152-Channels
• LCD Display: 4 x 8 segment display
• 3-pin DMX In/Out
• Locking Power In/Out
• Power Input: AC100-265V, 50/60Hz
• Max Power: 100W
• Dimensions (LxWxH): 4.9” x 15.9” x 13.8” / 124×405×351mm
• Weight: 7 lbs. / 3.1Kg
• IP Rating: IP20

Optional Accessories:

• Quick Release Panel Lock (3DV175)
• Rigging Bar (3DV149)

Specifications are subject to change without notice.

ADJ FAN288 User Manual.pdf
ADJ FAN288 Cut Sheet.pdf
ADJ FAN288 DMX Traits.pdf
ADJ FAN288 Sales Drawing.pdf
