Eliminator Ikon Profile Plus

(0)No Reviews yet
$319.99
SKU: Eliminator IKO400

Details

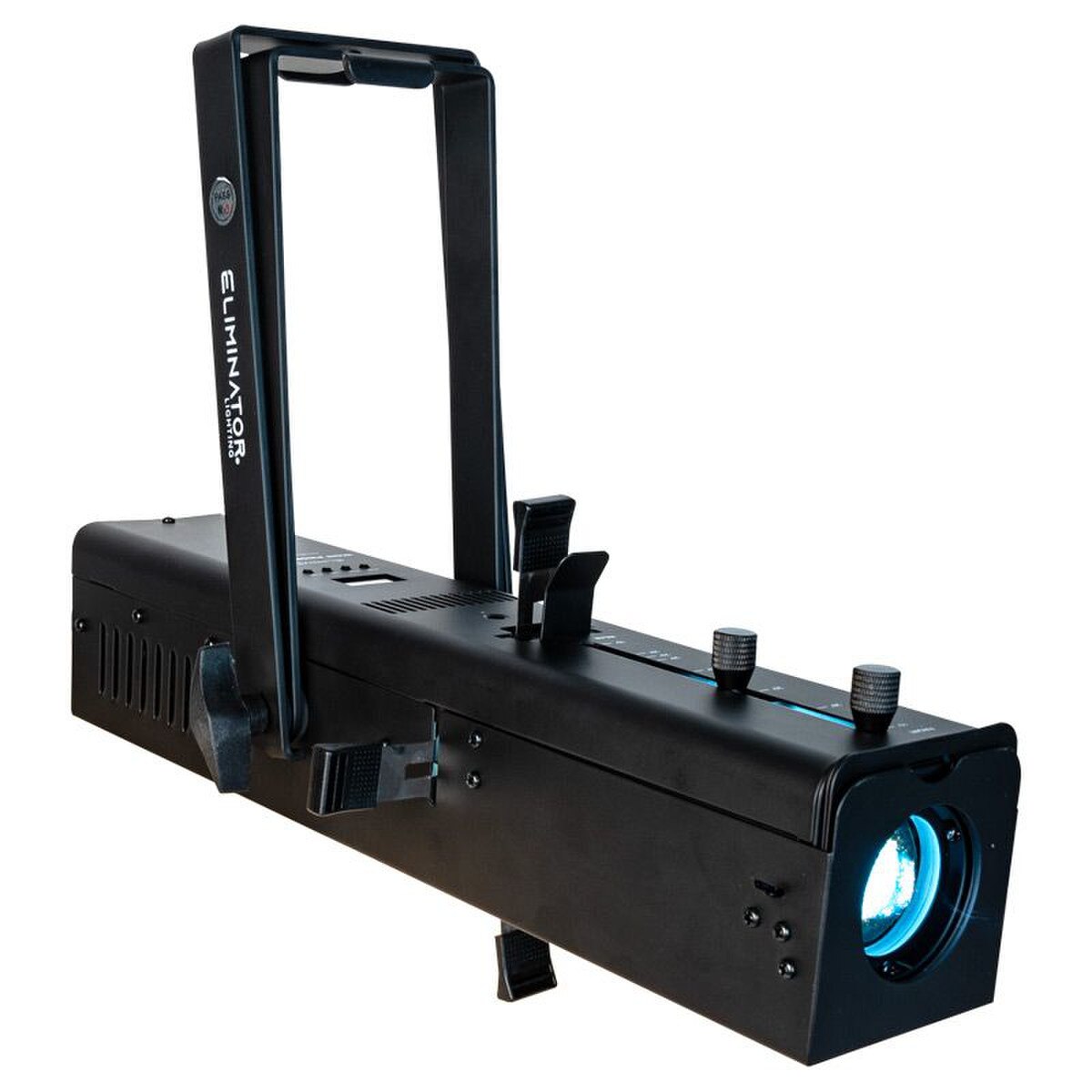

A flexible, forward-thinking and affordable GOBO projector that easily doubles as an effective spotlight unit, Eliminator Lighting’s Ikon Profile Plus combines a powerful 40W LED, an interchangeable glass GOBO and manually adjustable beam angle/focus features in one exceptionally portable package. This compact projector is a great lighting solution for houses of worship, nightclubs, bars, stage productions and event retail outlets.

Specifications

Source:

  • 40W White LED Source (9500K) @ 50,000 hours.
  • CRI: 80
  • LUX: 4121

Features:

  • High quality optics - Clear powerful output

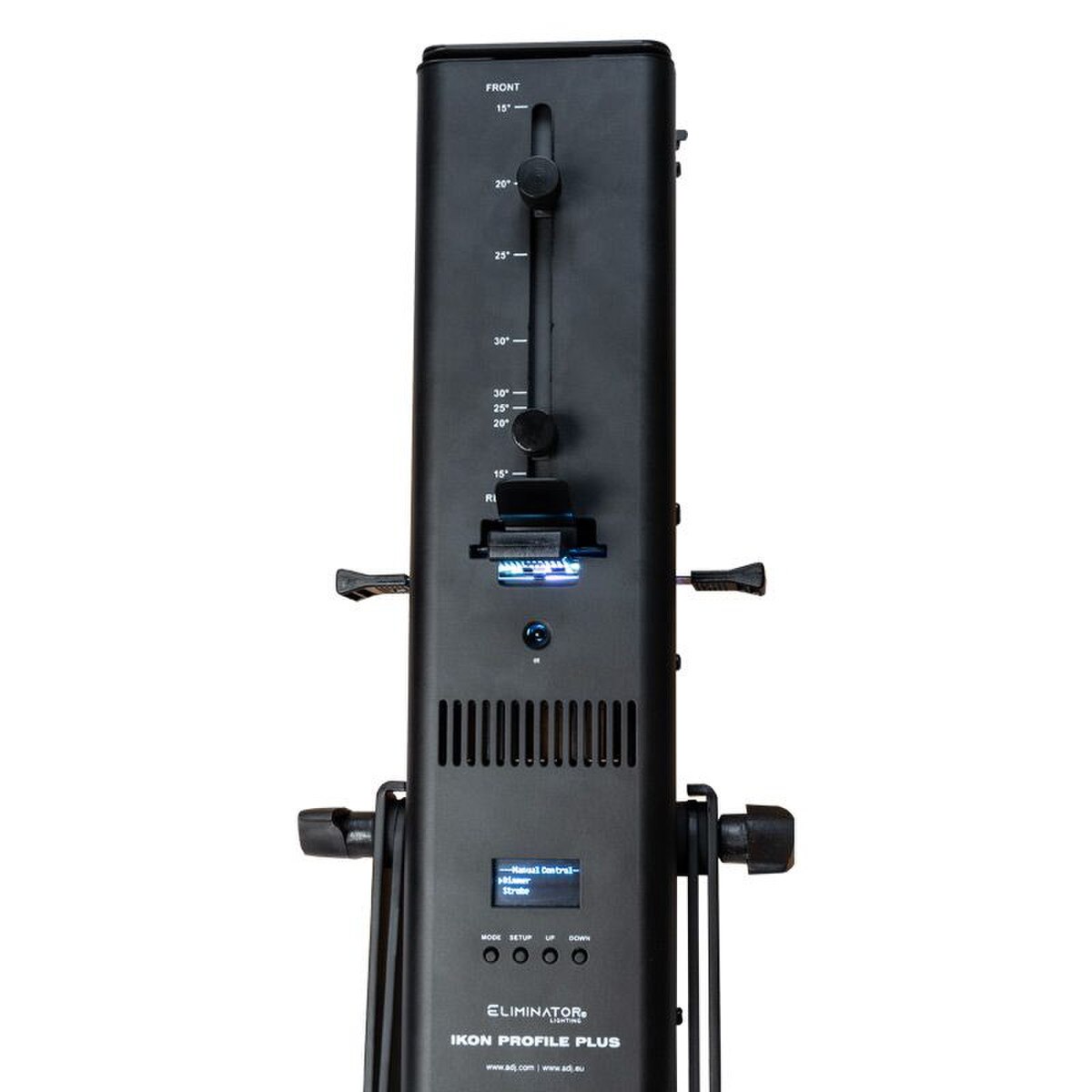

  • Adjustable beam angle: 15-30 degrees
  • Manually adjustable Focus
  • 4 manually adjustable Framing Shutters
  • Drop in Gobo Slot for Metal or Glass Gobos

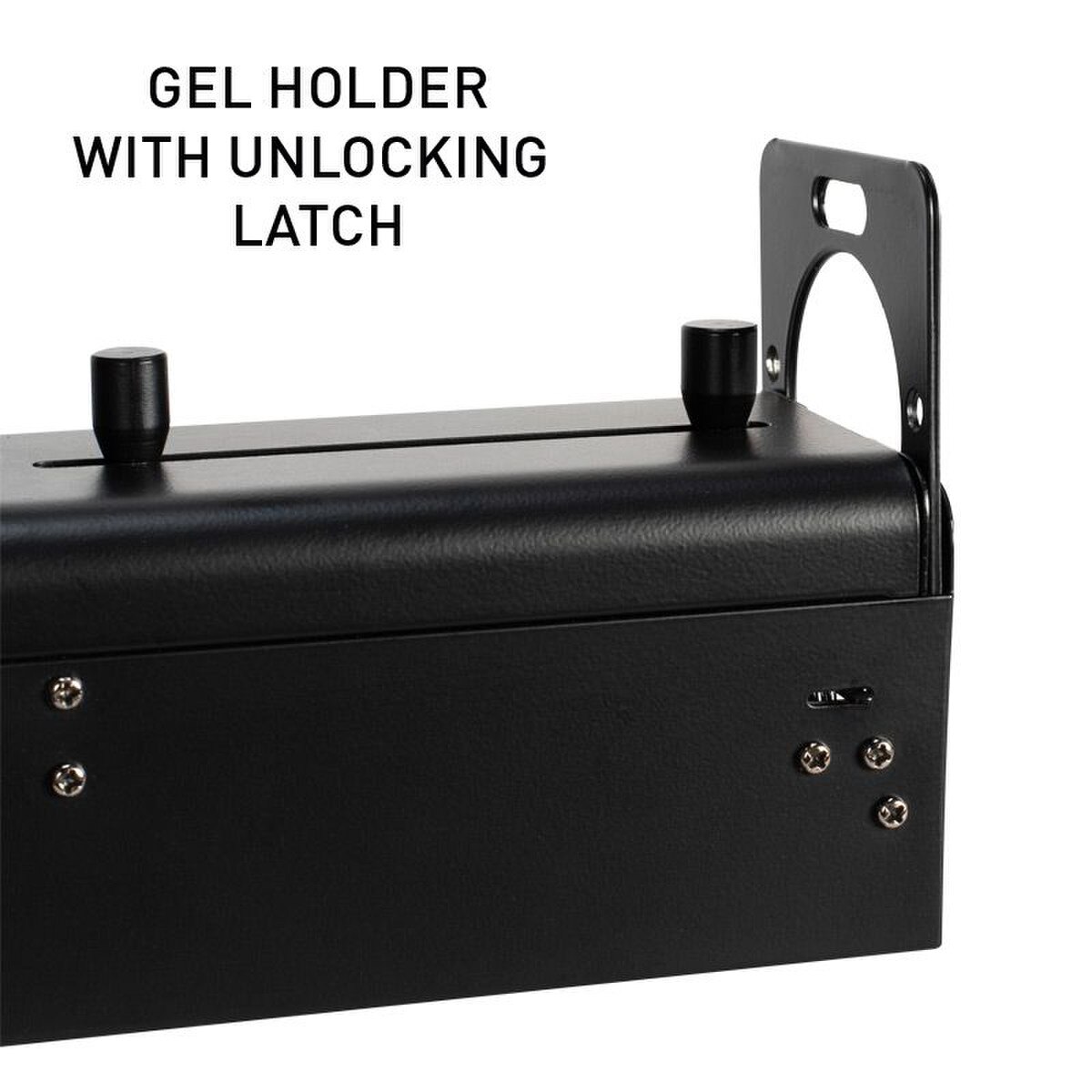

  • Color Frame For Color Filters
  • Run all night – No Duty Cycle
  • Compatible with UC IR wireless remote control (included)

GOBO:

  • Includes one textured glass GOBO
  • GOBO size: 26.8mm; Viewable size: 24mm

Control:

  • 2 DMX Channel Modes (3 Ch, 4 Ch)
  • Digital display with 4-button function menu
  • RDM (Remote Device Management)
  • 0-100% Dimming
  • Strobe and pulse effects
  • 6 Dimmer Curves
  • With Wired Digital Communication Network

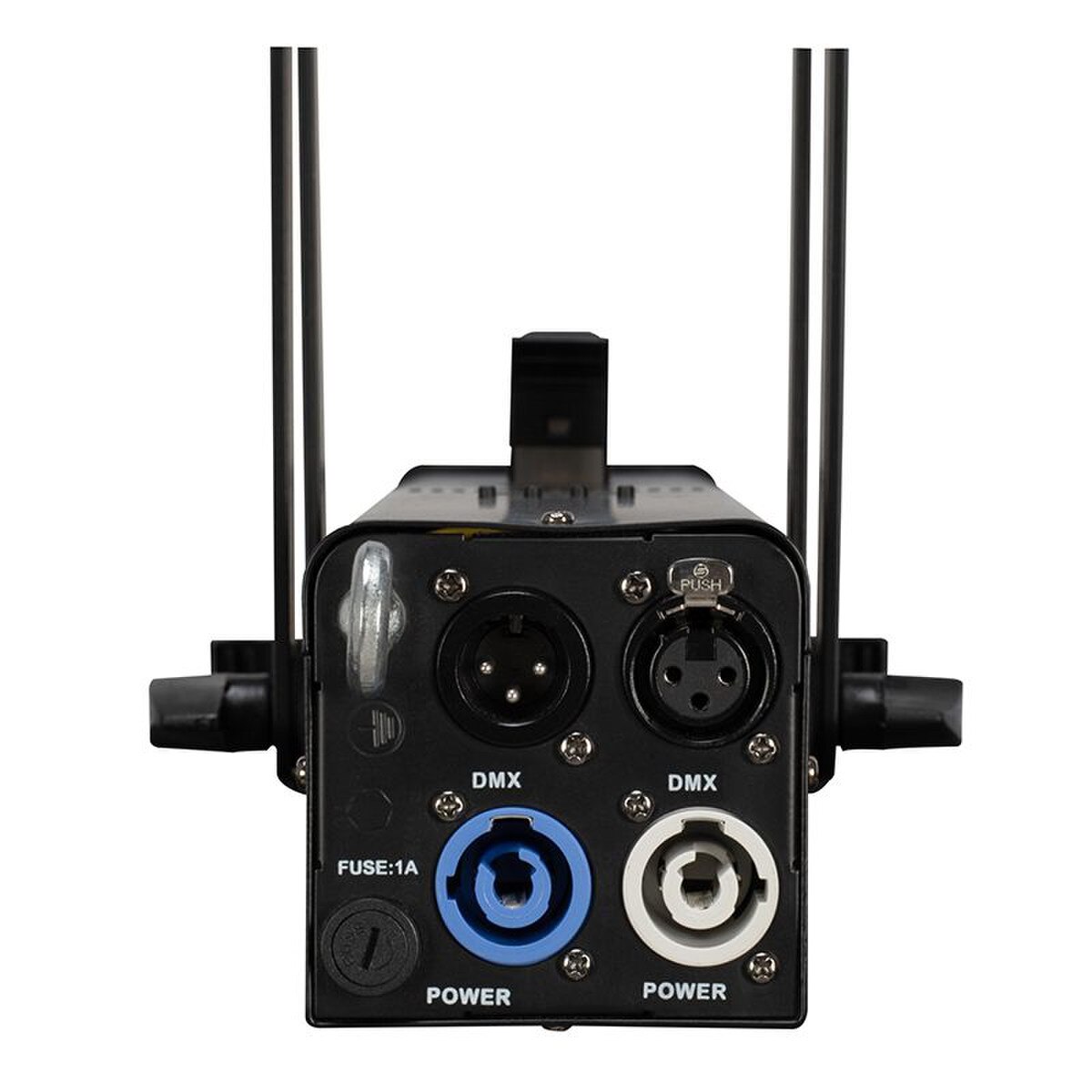

Connections:

  • 3-pin DMX In/Out
  • Locking power In/Out
  • Safety Eyelet on Rear

Electrical:

  • Multi-voltage: 100-240V, 50/60Hz
  • Power consumption: 44W max
  • Daisy chain power (up to 14 Ikon Profile Plus @ 120V and 24 Ikon Profile Plus @ 230V)

Dimensions & Weight:

  • Dimensions (LxWxH): 17.75” x 6” x 5”/ 448 x 150 x 127mm
  • Weight: 6 lbs. / 2.7 kg.

What’s Included:

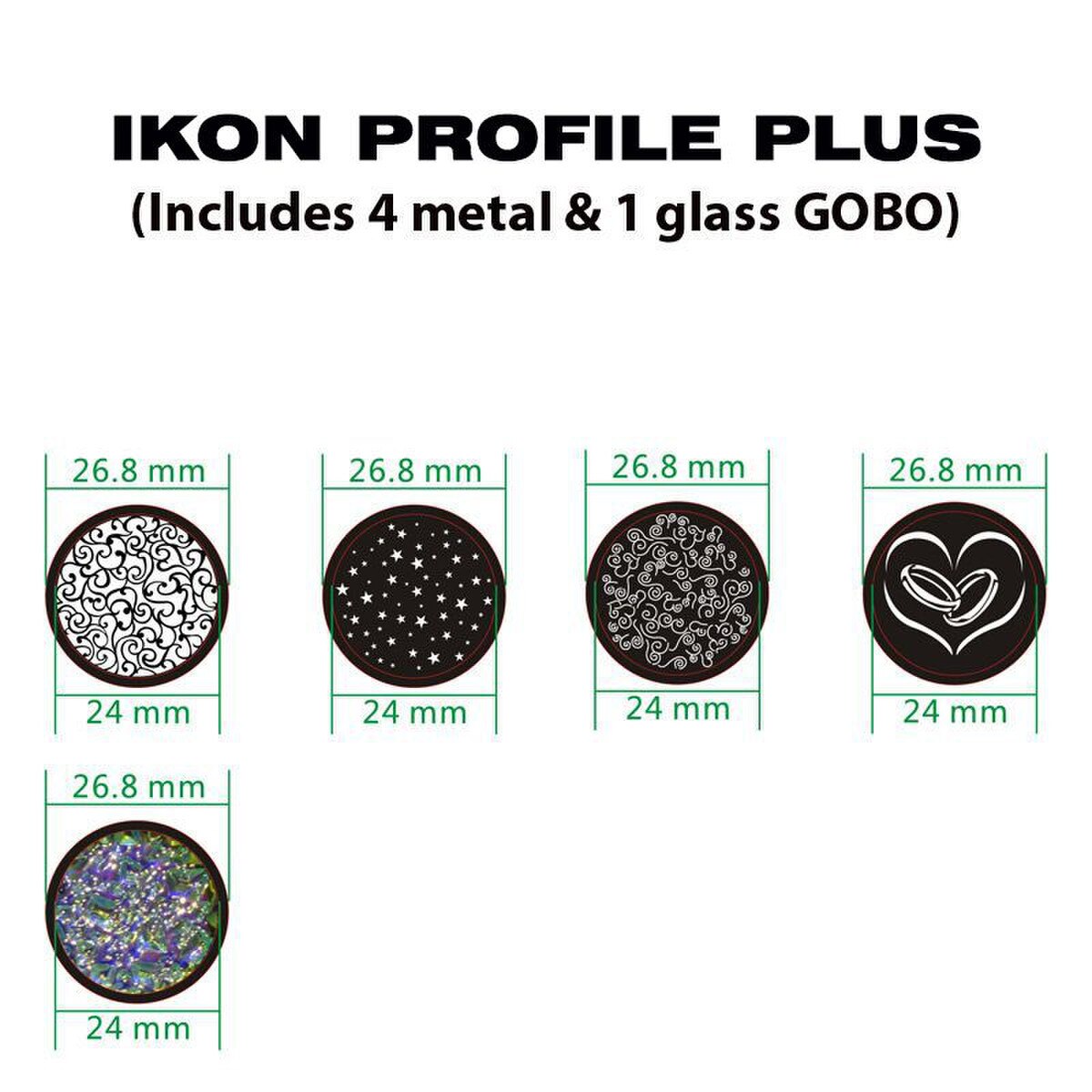

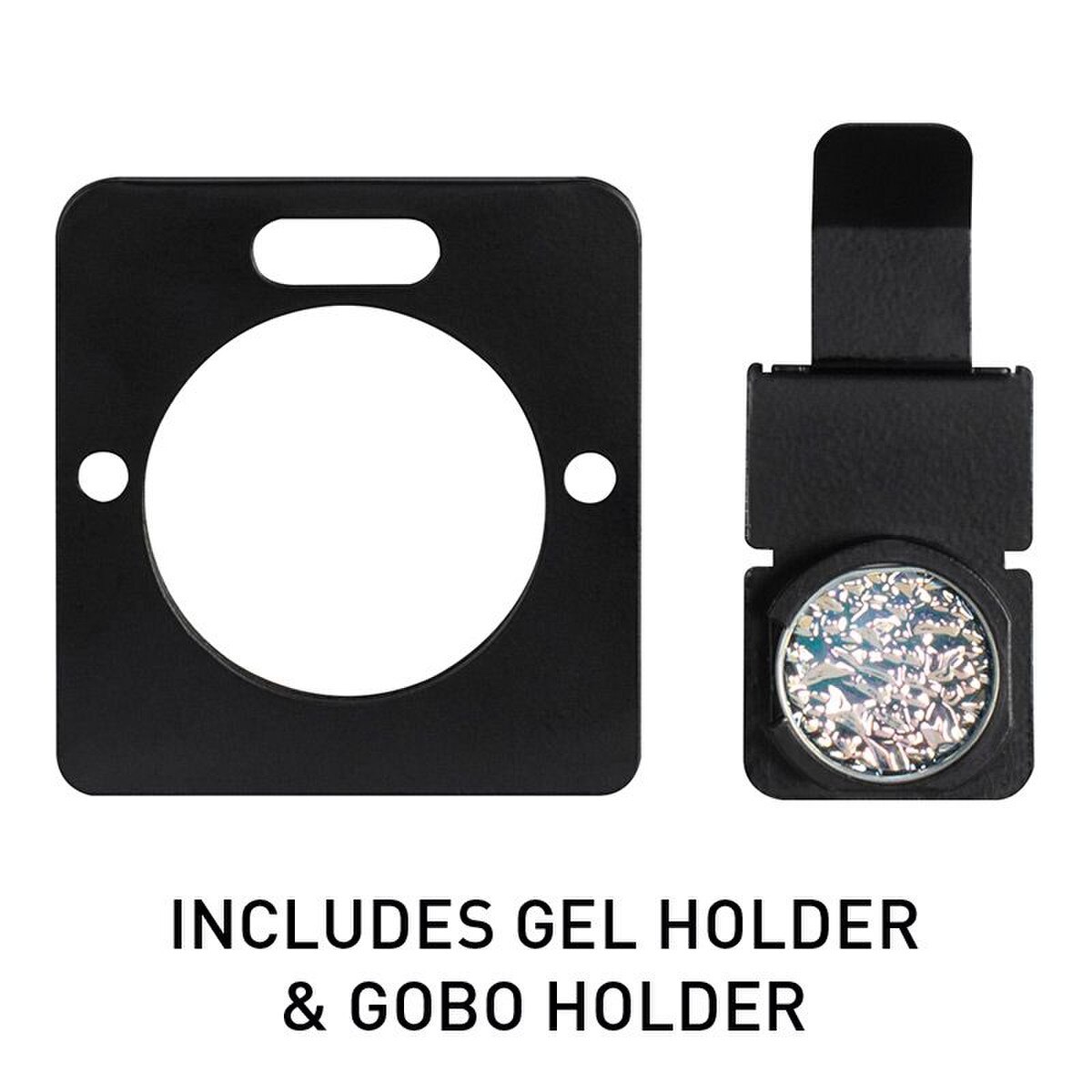

  • Includes 1 Glass Gobo, 4 Metal Gobo's and 1 Gobo holder

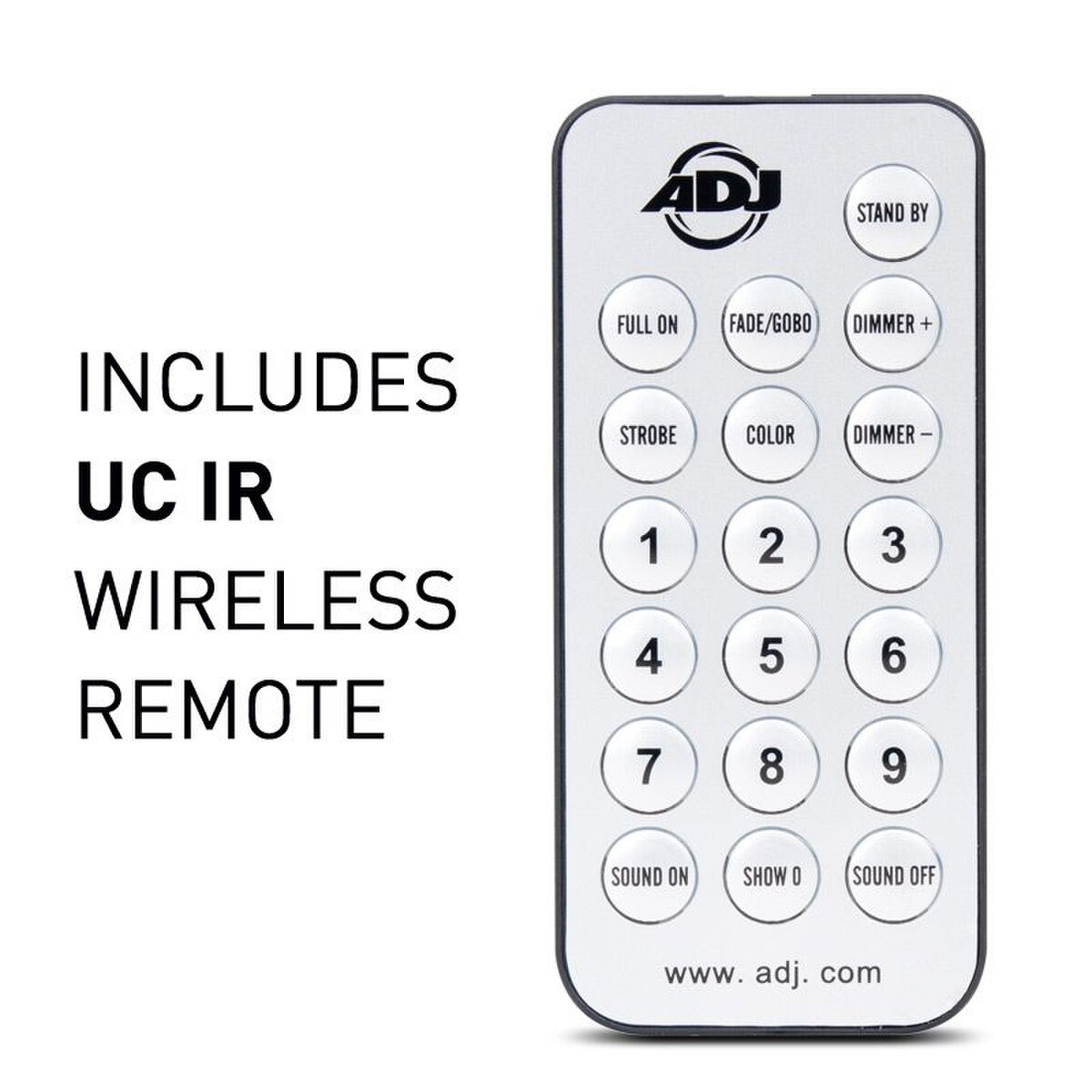

  • UC-IR wireless remote
  • Gel filter

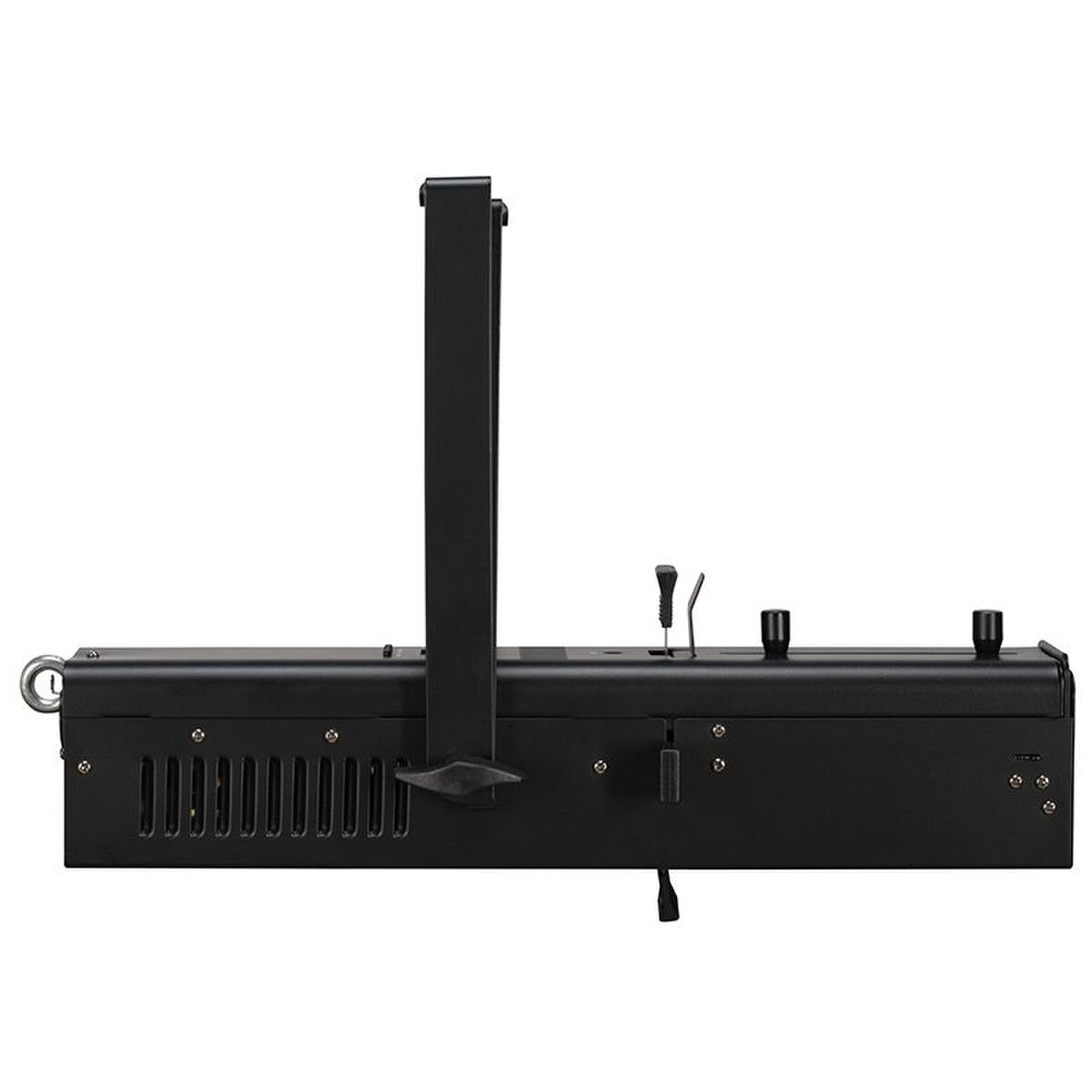

  • Includes scissor yoke to mount on a wall or hang from trussing
  • Locking power cord

Approvals / Ratings:

  • CE Compliant
  • ETL Approved (Control #4002034)


Specifications are subject to change without notice.


Do you want to incorporate high-power GOBO effects into your lighting setup without spending big bucks? The Eliminator Lighting Ikon Profile Plus is an unbelievably compact GOBO projector that boasts a powerful LED source, easy-to-adjust framing shutters, and a textured glass GOBO, letting you create super-bright, adaptable GOBO projections from one portable unit. This projector is fitted with a 40W white LED (9500K) and a textured glass GOBO, a combination that lets you create a powerful beam of optimized white light that makes your GOBO projections not only extra-bright, but crisp and rich too.


Thanks to Eliminator Lighting’s commitment to providing lighting solutions that are not only forward-thinking and cost-effective but highly versatile too, you’ll find a number of features that make the Ikon Profile suited to a range of events and situations. For starters, the beam angle can be manually adjusted (15-40-degrees) and the GOBO swapped, effectively allowing you to turn the Ikon Profile Plus into a spotlight, with the five dimmer curves letting the beam be optimized for everything from architectural applications to stage performances. As well as changing the beam angle to suit your needs, the unit can also be manually focussed to ensure a vivid projection at all times.


The other key feature which allows the versatile Ikon Profile Plus to reign supreme is its framing shutters: being manually adjustable, they allow you to craft the light produced by the unit into any four-sided shape you require. So, whether you want a square beam, or decide to go for a wider rectangular form, you can match the Ikon Profile’s projection to venue features or specific areas, for a more uniform, sleek look.


Completing the Ikon Profile Plus’ innovative range of features, Eliminator Lighting has fitted the unit with a drop-in GOBO slot (for 26.8mm GOBOs). This means that whether you choose to use metal GOBOs or glass, you can easily interchange them to achieve different but equally as effective results. The compact new unit also makes the most of a color frame, giving you the flexibility to add color filters and color correction filters to generate powerful beam projections in a range of vivid hues.


When it comes to controlling the Ikon Profile, you have access to four DMX channels – allowing you to get extra imaginative with your GOBO lightshows through DMX control – as well as being able to operate the unit via the included UC IR wireless remote. The hand-held UC IR control remote enable wireless operation from a distance of up to 30ft, giving you the freedom to create pure lighting excitement from any position, whether you’re working the lights from behind the bar or you’re tucked away in the lighting booth at the back of the event. Using the game-changing, you can even trigger these unique GOBO projections from the convenience of your handheld iOS device – for true versatility


The Ikon Profile Plus’ power and flexibility also make it the perfect projector for houses of worship, nightclubs, bars, stage productions and event retail outlets. For these bigger events, where the fixture is highly effective used in multiples, the Ikon Profile’s power outlet allows the power for up to 14 units to be daisy-chained at 120V (24 @ 230V), for a widespread lightshow that really packs a punch!


Letting you bring powerful GOBO effects to your nightclub or bar during late-night events, you’ll have no problems running the Ikon Profile Plus all night long without any duty cycle, thanks to its low heat output and efficient LED source. The unit also ships with an included yoke, so you can easily mount it on a wall or hang the light from trussing, enabling you to deliver eye-catching beams of bright white light from a range of angles.
