Eliminator Mega 64 Profile EP

At A Glance:

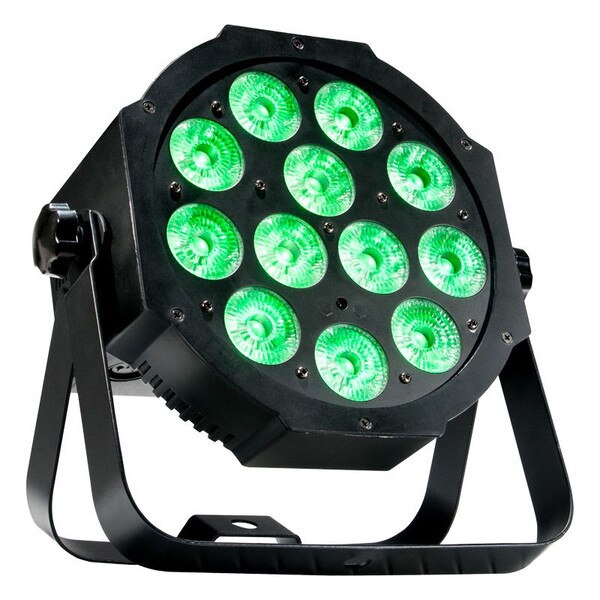

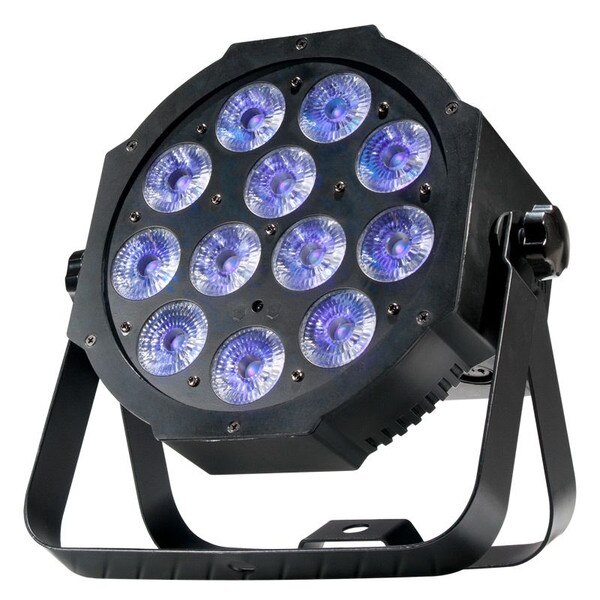

The Eliminator Lighting Mega 64 Profile EP is a low profile LED Par with 12x 4W Quad LED (RGB+UV) designed for uplighting, stage lighting and wall washing. With a 25-degree beam angle and 64 built-in color macros, the Mega 64 Profile EP is great for permanent or portable lighting solutions to create smooth swaths of vibrant color.

Specifications

Source:

• 12 x 4W Quad (RGB+UV 4-IN-1) LEDs
• Light output: 3,520 LUX @ 2M; 820 LUX @ 4M (25-degree beam)

Features:

• Smooth RGB Color Mixing (fast or slow color change operation) with no RGB+UV shadows

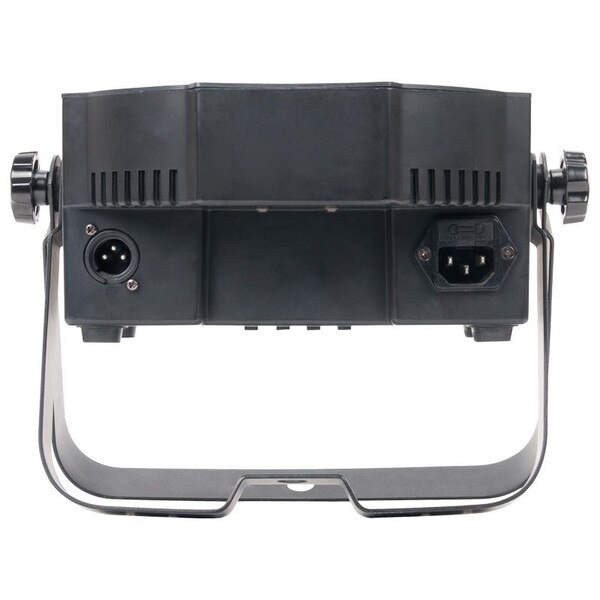

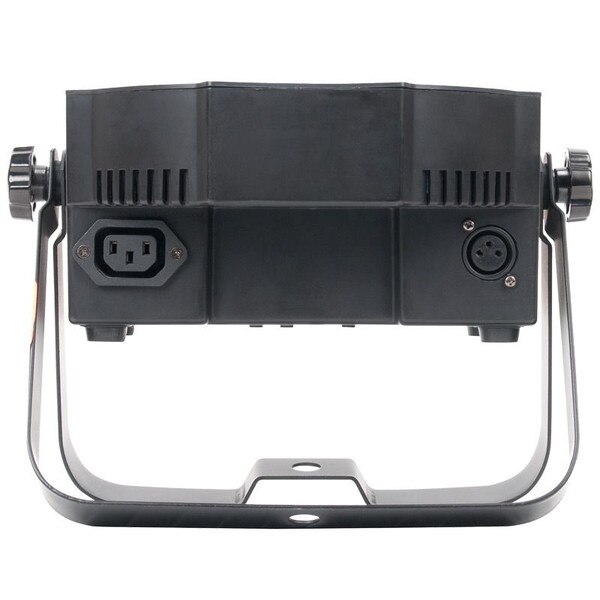

• Power & DMX Ins/Outs are intelligently designed to sit sideways so the unit can be set flat on the ground

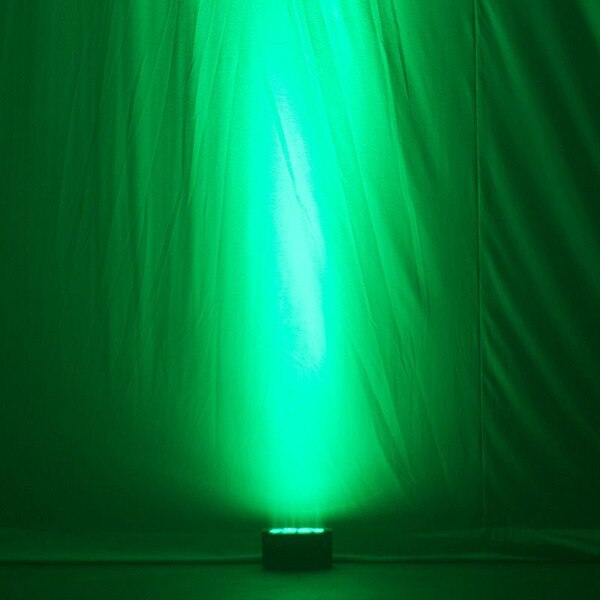

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Flicker Free

Control:

• DMX-512 protocol
• 5 DMX Channel Modes: 4/5/6/9/10 Channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode (16 Color Change Programs, 16 Color Fade Programs, & Color Change & Fade Combination), Static Color Mode, & DMX Controlled
• Stand Alone or Primary/Secondary Configuration

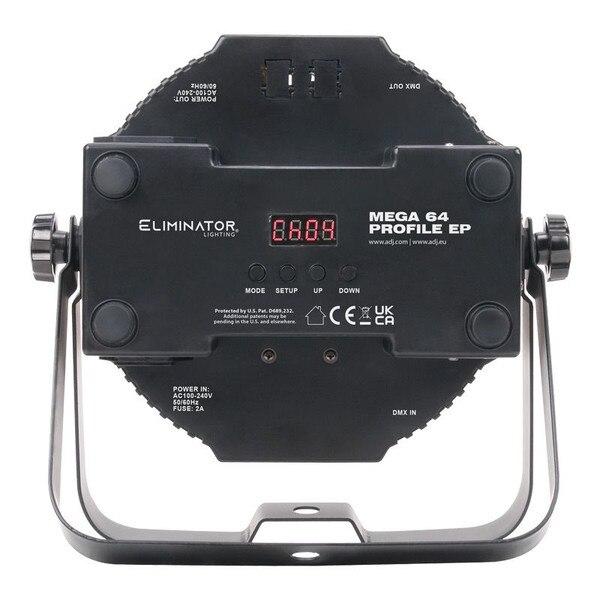

• 4-Button DMX LED Display
• 64 built-in Color Macros
• Refresh Rate: 504Hz
• Electronic Dimming: 0-100%
• LED Pulse and strobe effect

Connections:

• Linkable via 3-pin XLR cable
• Power: IEC In/Out to daisy chain power (Link up to 12 Mega 64 Profile Plus fixtures)
• With Wired Digital Communication Network

Electrical:

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Draw: 54W Max
• Fuse: 2Amp

Dimensions & Weight:

• Dimensions (LxWxH): 10.5” x 10.25” x 4.5”/ 261 x 260 x 110mm
• Weight: 5 lbs./ 2.1 kg.

What’s Included:

• Includes scissor yoke to hang on truss, mount on a wall or set on the ground
• Power cable length: 1.8 meter (IEC)

Accessories:

• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

Details:

The Eliminator Lighting Mega 64 Profile EP is a compact, low profile LED wash fixture designed for uplighting, stage lighting and wall washing, and will bring color and excitement to smaller sized events or small stage performance. The Mega 64 Profile EP is powered by twelve bright 4-Watt Quad (RGB+UV 4-In-1) LED and offers a unique, more vibrant color palette with the UV LEDs than traditional RGB fixtures.

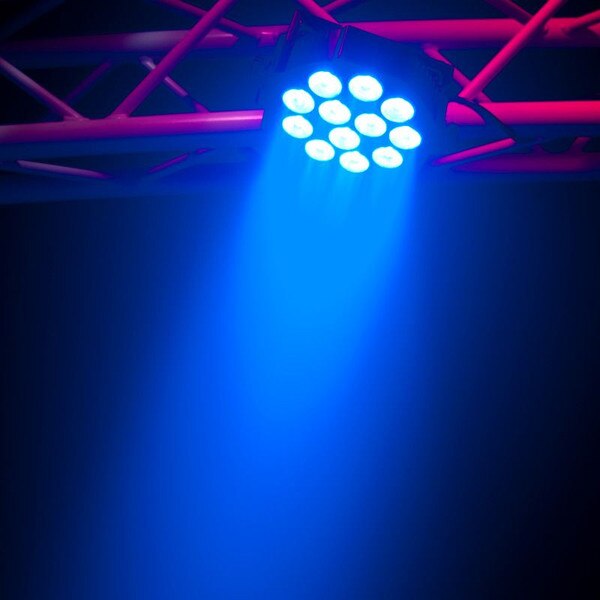

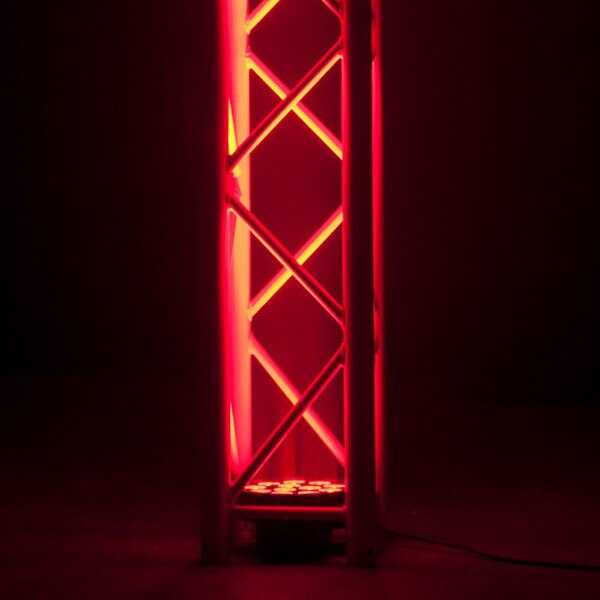

This Par is intelligently designed so that it may sit directly on the ground or inside truss without the hanging bracket because the power & DMX Ins and Outs sit on the side of the fixture, not on the rear. Its feet and scissor yoke allow for maximum lighting versatility to be used as a floor wash or hung from truss or pipe.

The Mega 64 Profile E offers smooth color mixing with no RGB+UV shadows, has a 25-degree beam angle and has 5 DMX Channel modes for a variety of programming options. Users can also use the ADJ LED RC2 wireless remote, which is sold separately, to control the Mega 64 Profile EP.
