Enttec 12V RGB 60-LEDs/m Long-Range Pixel Strip - Black

At A Glance:

• 12V individually-controllable 60 pixel/m RGB pixel strip with black or white PCB for long-range applications. 5m roll.

ENTTEC 8PXA60-RGB-12V-B is a 12v 60 pixel per metre addressable LED Pixel Strip designed for professional architectural and entertainment purposes, used to display smooth animated graphics achieving soft pastels and saturated colours on a large scale.

Cut and join into any conceivable shape.

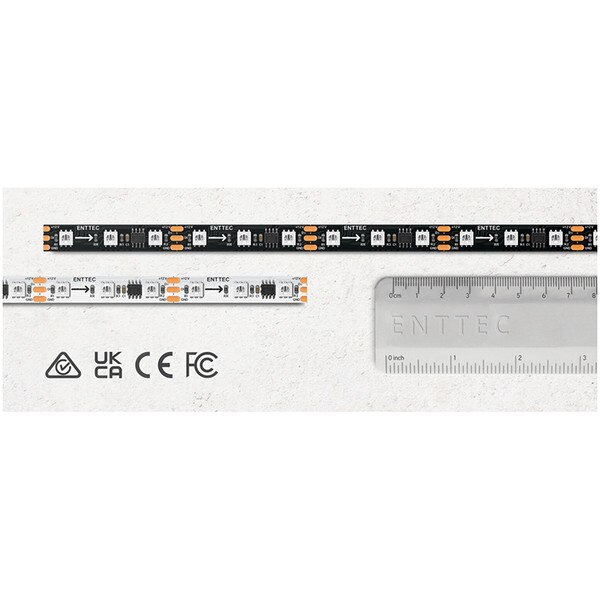

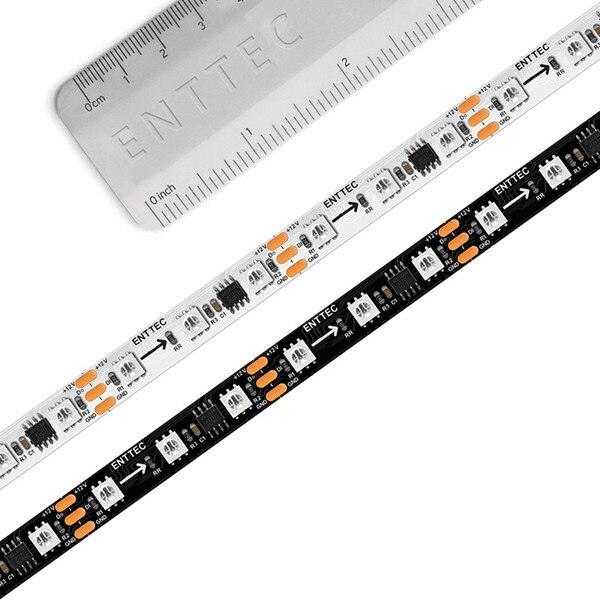

The 8PXA60-RGB-12V-B’s black PCB makes it perfectly suited for installing in extrusions and lightboxes where it will contribute to reflecting as much light forward as possible.

A key feature of ENTTEC’s 8PXA60-RGB-12V-B pixel strips is their ‘Data Backup’ line feature, this allows single pixels to be damaged on the strip, but still allow data to pass without effecting your mapping. It’s fast 800 Kbps transmission rate and 8-bit colour depth means graphics and animations played back are smooth and consistent.

At ENTTEC, manufacturing quality and attention to detail is paramount. Enttec always uses thick 3oz copper PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other standard LED strips available on the market. This in combination with the 12v operating voltage allows up to a 10m run with a single power injection.

Features:

• RGB, 3 in 1 full colour LED pixel strip.
• Premium flexible black 3oz copper PCB.
• Individually addressable led pixels, suitable for stage, entertainment and architectural applications.
• 12V DC input supply voltage.
• 60 Pixels/metre density.
• Back up data line BO/BI.
• SK6813 IC chip (compatible to WS2812 and GS8208B protocol).
• 16.7 million possible shades.
• 120-degree illumination.
• 3M adhesive double side tape on the rear.
• Built-in data signal reshaping circuit.
• High LED density.
• Can be cut or joined at each copper tab.
• IP20 Indoor use only.
• Designed for use with ENTTEC pixel products.
• Maximum 7.2 Watts/Metre.

Specification:

Connectors:

• 2 x 4Pin JST SM connectors (3A max)

IP Rating:

• IP20

Input Voltage:

• 12V

Watts/Metre (Max):

• 7.2

Lumens/Metre (Max):

• 188.2

Efficacy (Lm/Watt):

• 26.14

DMX Channels/Pixel:

• 3

Beam Angle:

• 120°

Control Protocol:

• SK6813 IC chip (compatible to WS2812 and GS8208B protocol).

PWM Frequency:

• 8KHZ

Data Transmission Rate:

• 800 KHZ

Backup Data Line:

• Yes

Pixel Mapping Order:

• RGB

PCB Colour:

• Black

PCB Width:

• 10mm / 0.40”

Bend Radius (Min):

• 30mm / 1.2”

Spacing Between Cuttable Sections:

• 16.6mm / 0.66”

Environmental Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Environmental Operating Humidity:

• 5- 95% (non-condensing)

Weight (5m Roll):

• 0.18Kg / 0.40lbs

Shipping Dimensions (Single Roll):

• 240 x 215 x 16mm (9.45 * 8.47 * 0.63”)

Shipping Weight (Carton Of 5 Rolls):

• 0.80Kg / 1.76lbs

Shipping Dimensions (Carton Of 5 Rolls):

• 260 x 225 x 93mm (10.24 * 10.04 * 3.66”)

Warranty:

• 1 year return to base manufacturer warranty

Box Contents:

• 1 x 5m 8PXA60-RGB-12V-B reel
• 1 x 4Pin JST SM connector (3A max)

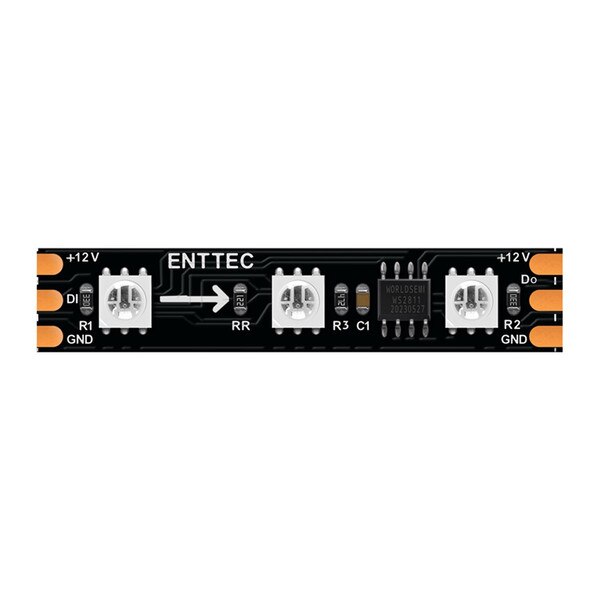

Connection:

4PIN JST SM Connector:

• +12V
• DO/DI: Data Out/Data In
• BO/BI: Backup Out/Backup In
• GND: Ground

Safety:

• Ensure all cabling is rated to handle the current of each pixel strip section. ENTTEC recommend separate wiring soldered directly to the strip, to substitute the original JST SM connector for sections exceeding 3A current consumption.
• Make all connections and ensure your installation is appropriately fused before powering it.
• Handle with care and adhere to the LED Pixel Strip instruction sheet.
• Pixel strips produce heat; ensure proper thermal management by attaching to a thermally conductive surface.
• This product is intended for indoor use only. Do not expose to moisture, doing so will void the warranty.
• Never plug this product into a dimmer.
