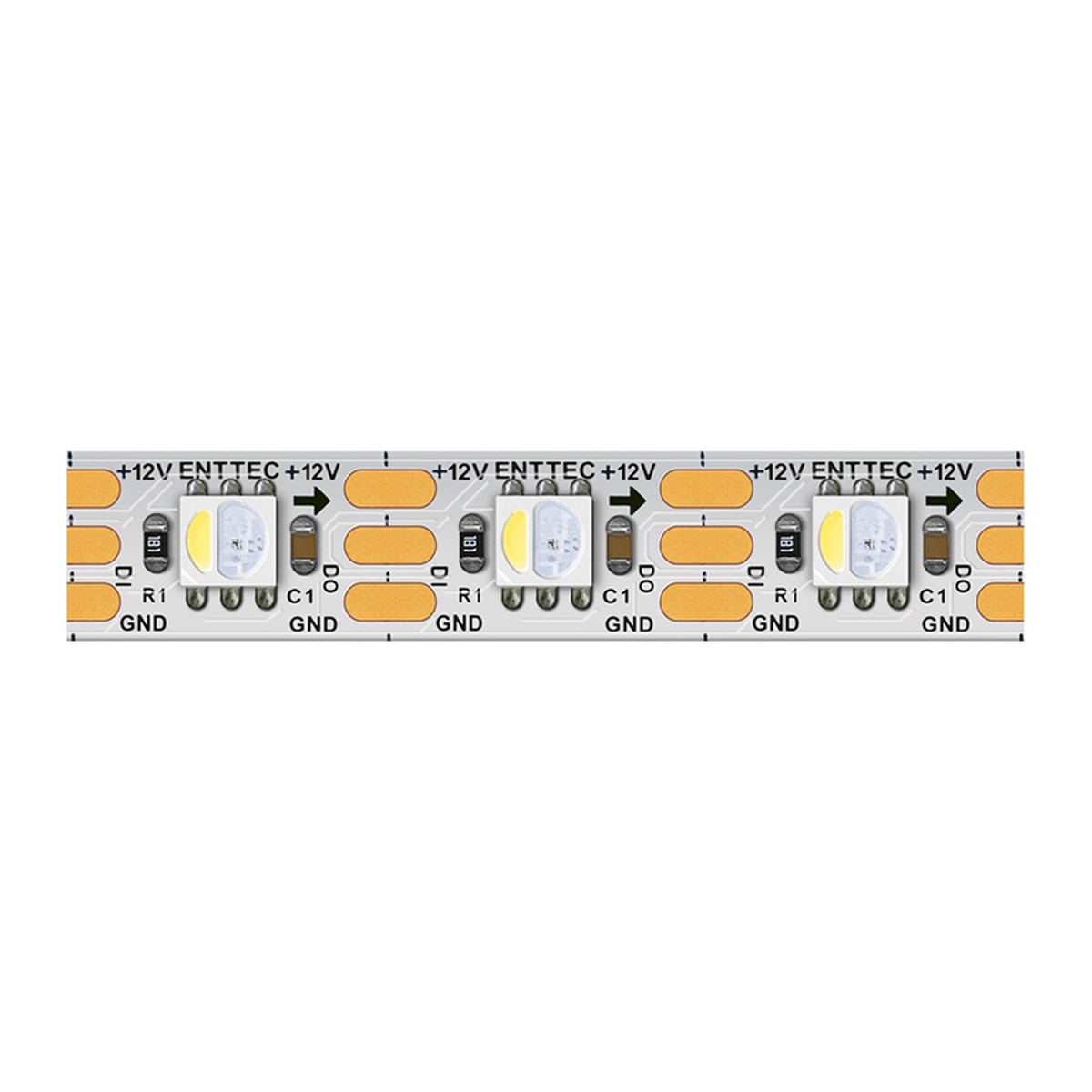

Enttec 12V RGBW 60-LEDs/m Pixel Strip - White
Details
At A Glance:
- 12V individually-controllable 60 pixel/m RGBW pixel strip with black or white PCB. 5m roll.
Enttec 8PXA60-RGBW-12V-W is an installation grade 12V 60 LEDs per metre addressable RGBW LED Pixel Strip designed for professional architectural and entertainment purposes, used to display smooth animated graphics achieving soft pastels and saturated colours on a large scale.
Cut and join into any conceivable shape.
Its white PCB makes it perfectly suited for direct view applications where the black PCB will be lost in the darkness when all pixels are off.
It’s 800 Kbps transmission rate and 8-bit colour depth means graphics and animations are played back smoothly and consistently.
At ENTTEC, manufacturing quality and attention to detail is paramount. Enttec always uses thicker PCB to offer more durability, better heat dissipation and reduced voltage drop when compared to other LED strips available on the market. This in combination with the 12V operating voltage allows up to a 7m run with a single power injection.
Features:
- RGBW, 4 in 1 full colour LED pixel strip.
- Premium flexible white 3oz copper PCB.
- Suitable for stage, entertainment and architectural applications.
- 12V DC input supply voltage.
- 60 LEDs per metre density.
- SK6805 IC chips (compatible with the SK6812 protocol).
- 4.29 billion possible shades per LED.
- 120-degree illumination.
- 3M adhesive double side tape on the rear.
- Built-in data signal reshaping circuit.
- High LED density.
- Can be cut or joined at each copper tab.
- IP20 Indoor use only.
- Designed for use with ENTTEC pixel products.
- Maximum 21.8 Watts/Metre.
Specifications:
Connectors:
- 2 x 3Pin JST SM connectors (3A Max)
IP Rating:
- IP20
Input Voltage:
- 12V
Watts/Metre (Max):
- RGB: 5.2W
- W: 10.1W
- Total: 21.8W
Lumens/Metre (Max):
- RGB: 432.8
- W: 700
- Total: 1,088
Efficacy (Lm/Watt):
- 49.82
DMX Channels/Pixel:
- 4
Beam Angle:
- 120°
Control Protocol:
- SK6805 IC chips (compatible with SK6812 protocol.)
PWM Frequency:
- 4KHZ
Data Transmission Rate:
- 800KHZ
Backup Data Line:
- No
Pixel Mapping Order:
- GRBW
White Temperature:
- 4000K
PCB Colour:
- White
PCB Width:
- 10mm / 0.40”
Bend Radius (Min):
- 30mm / 1.2”
Spacing Between Cuttable Sections :
- 16.6mm / 0.66”
Environmental Operating Temperature:
- 0°C to 50°C
- 32°F to 122°F
Environmental Operating Humidity:
- 5- 95% (non-condensing)
Weight (5m Roll):
- 0.18Kg / 0.40lbs
Shipping Dimensions (Single Roll):
- 240 x 215 x 16mm (9.45 x 8.47 x 0.63”)
Shipping Weight (Carton of 5 Rolls):
- 0.80Kg / 1.76lbs
Shipping Dimensions (Carton of 5 Rolls):
- 260 x 225 x 93mm (10.24 x 10.04 x 3.66”)
Warranty:
- 1 year return to base manufacturer warranty
Box Contents:
- 1 x 5m 8PXA60-RGBW-12V-B reel
- 1 x 3Pin JST SM connector (3A max)
Connections - 3PIN JST SM Connector:
- +12V
- DO/DI: Data Out/Data In
- GND: Ground
Safety:
- Ensure all cabling is rated to handle the current of each pixel strip section. ENTTEC recommend separate wiring soldered directly to the strip, to substitute the original JST SM connector for sections exceeding 3A current consumption.
- Make all connections and ensure your installation is appropriately fused before powering it.
- Handle with care and adhere to the LED Pixel Strip instruction sheet.
- Pixel strips produce heat; ensure proper thermal management by attaching to a thermally conductive surface and providing 150mm / 6” for convection.
- This product is intended for indoor use only. Do not expose to moisture, doing so will void the warranty.
- Never plug this product into a dimmer.
