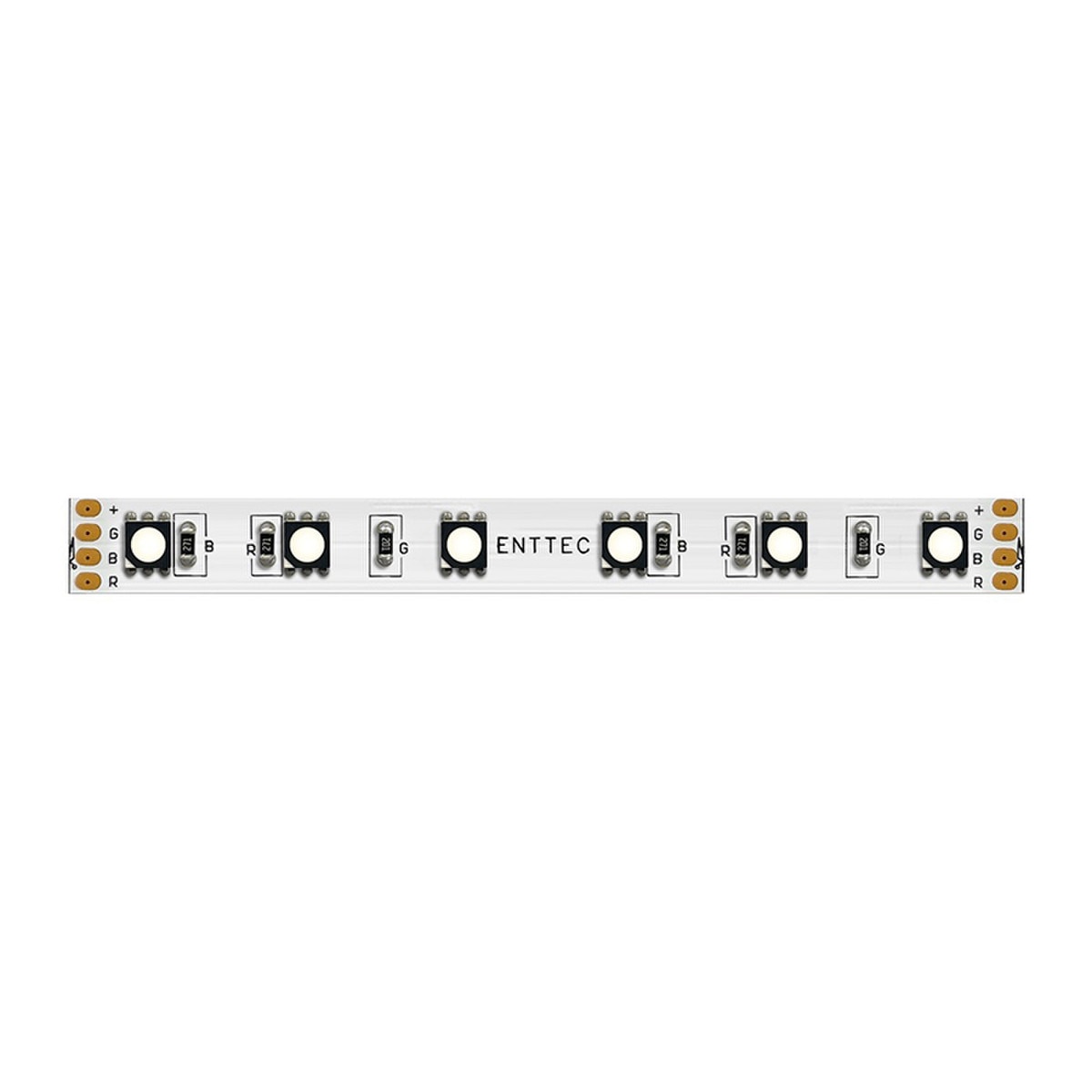

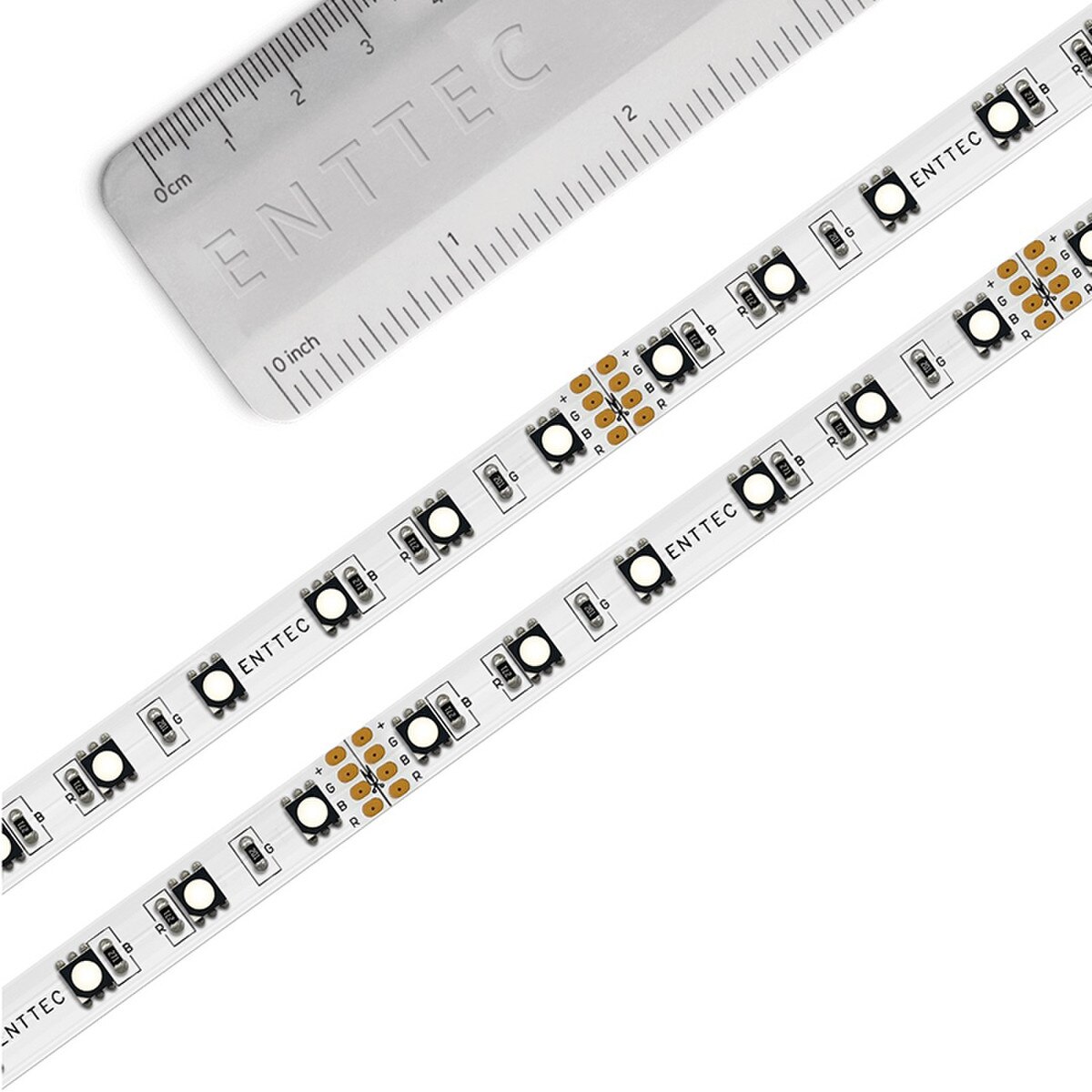

Enttec 9VL4 – RGB LED Tape (10m)

At A Glance:

• RGB LED strip featuring video grade LED’s designed and produced to ENTTEC’S high standard for long term installations that demand consistency.

Features:

• High grade RGB leds for maximum colour vibrancy and longevity
• 12mm pitch
• Customized Length available
• 60pcs of RGB LEDs per meter
• High light output
• LEDs dimmable by ENTTEC CV Driver or DIN-LED4PX
• Can be joined together
• Can be cut to a smaller length
• Minimum cut length 100mm
• Input and output connections (loose cable)
• Constant Voltage control
• IP20 Indoor use only

Specifications:

DC Power:

• 24V

Watts/Meter (Max):

• Red: 4.45
• Green: 3.31
• Blue: 3.12

LED Quantity:

• 60/m

Color:

• RGB

Lumens/Meter (Max):

• Red: 66
• Green: 179
• Blue: 42.6

Input Current 1M:

• Red: 0.19A
• Green: 0.14A
• Blue: 0.13A

Input Current 5M:

• Red: 0.93A
• Green: 0.69A
• Blue: 0.65A

IP:

• 20

Reel Length:

• 10m

Strip Width:

• 10mm

Cuttable:

• 100mm

Maximum Continuous Length:

• 10m


Enttec 9VL4-10 Datasheet.pdf
