Enttec 9VLW – RGBW LED Tape (10m)
Details
At A Glance:
- The RGBW 4000K LED strip provides ultimate RGBW output and is designed and produced to the highest ENTTEC quality standards.

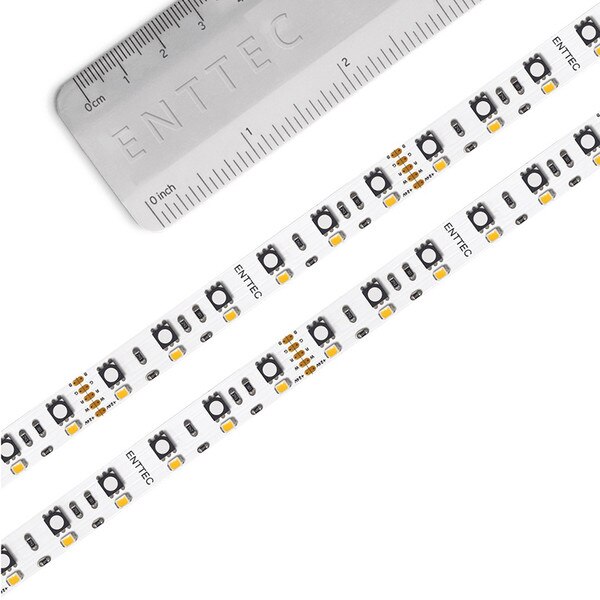

ENTTEC 9VLW is a 24V, 60 LED per meter constant voltage LED strip designed for professional architectural and entertainment purposes, used to display saturated colors on a large scale.
Cut and join into any conceivable shape.
At ENTTEC, manufacturing quality and attention to detail is paramount. Enttec always uses thicker substrates to offer more durability, better heat dissipation and reduced voltage drop when compared to other standard LED strips available on the market. This in combination with the 24v operating voltage allows up to10m before requiring power injection.
Features:
- Video grade RGB LEDs for maximum colour vibrancy and longevity
- 90+ CRI 4000K LEDs
- White LEDs 3 SDCM
- 10m total length
- 60pcs of RGB and White LEDs per meter
- High light output
- LEDs Dimmable by ENTTEC CVC4
- Can be joined together
- Can be cut to a smaller length
- Minimum cut length 100mm
- Input and output connections (loose cable)
- Constant Voltage control
- IP20 Indoor use only
Specifications:

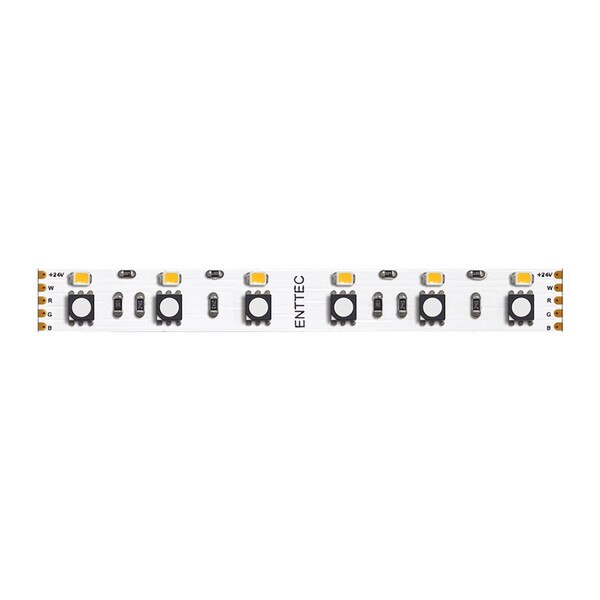

Connection (In/Out):
- 5 x solder tabs
IP Rating:
- IP20
Input Voltage:
- 24V
Current Consumption (Max):
- 0.72A / mtr
LED Quantity:
- 60pcs / mtr
Watts/Meter (Max):
- Red: 4.45
- Green: 3.31
- Blue: 3.12
- White: 6.4
Lumens/Meter (Max):
- Red: 66
- Green: 179
- Blue: 42.6
- White: 562
CCT (All LEDs RGB On):
- 7000K
CCT White:
- 4000K 3SDCM
Beam Angle:
- 120°
PCB Color:
- White
LED Strip Width:
- 12mm / 0.47”
Spacing Between Cuttable Sections:
- 100mm / 3.93”
Environmental Operating Temperature:
- -20°C to 45°C
- -4°F to 113°F
Environmental Operating Humidity:
- 5- 95% (non-condensing)
Shipping Weight (10m roll):
- 0.25Kg / 0.55lbs
Shipping Dimensions (10m roll):
- 250 x 250 x 35mm (9.84 x 9.84 x 1.38”)
Warranty:
- 1 year return to base manufacturer warranty
Box Contents:
- 1 x 10m 9VLW-10
- 1 x 5 core bare end cable (3A max, only for testing purpose)
Safety:
- Do not exceed the rated 24V DC power supply. Ensure all cabling is rated to handle the current of each section.
- Make all connections and ensure your installation is appropriately fused before powering it.
- LED strips produce heat; ensure proper thermal management by attaching to a thermally conductive surface.
- This product is intended for indoor use only. Do not expose to moisture, doing so will void the warranty.
