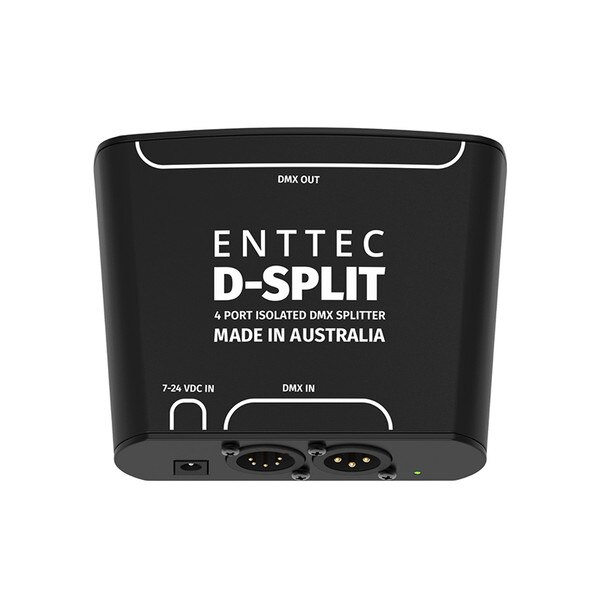

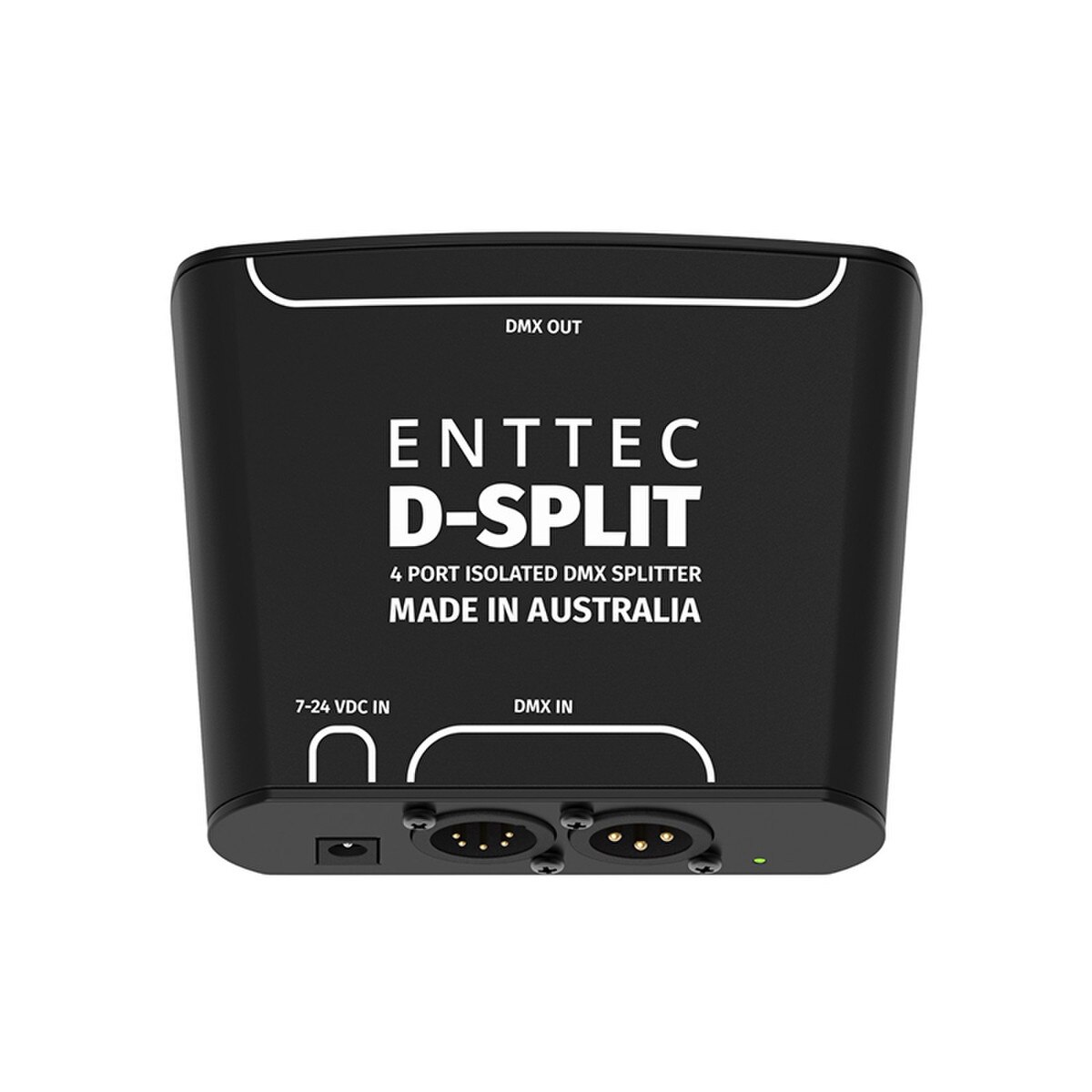

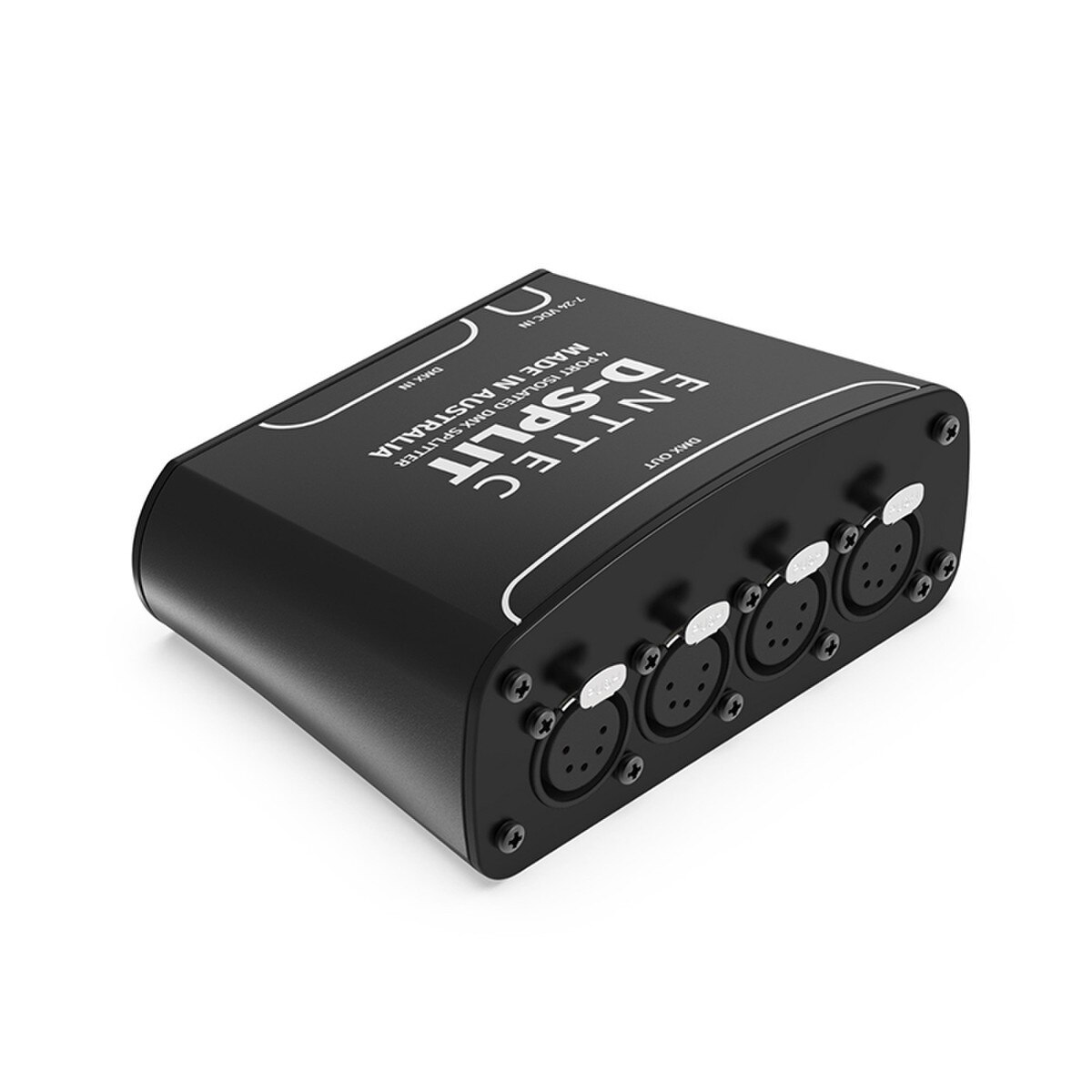

Enttec D-Split - All 5Pin Output

At A Glance:

• The D-Split is an optically-isolated DMX splitter and repeater for DMX512. With one input and four outputs, the D-Split gives you the ultimate flexibility to link up to 32 DMX fixtures.

The D-SPLIT is a 1 to 4 DMX 512 splitter, allowing you to send your signal in different directions or to increase the number of fixtures that you can send your signal to (DMX signal is limited to running through 32 fixtures).

Run your DMX cable to the Male DMX Input (only one input), the D-SPLIT will duplicate the signal on each of the four outputs. The D-SPLIT outputs are optically isolated, meaning that that it protects against up to 1000V of stray voltage, protecting your DMX controller and fixtures on the other DSPLIT outputs.

The D-SPLIT can provide more flexibility in connecting DMX controlled devices. Instead of having to make them all fit within a single daisy chain, each of the four outputs from the D-SPLIT can be the start of its own chain, and multiple DSPLITs can be linked together if needed.

Features:

• Lightweight and portable.

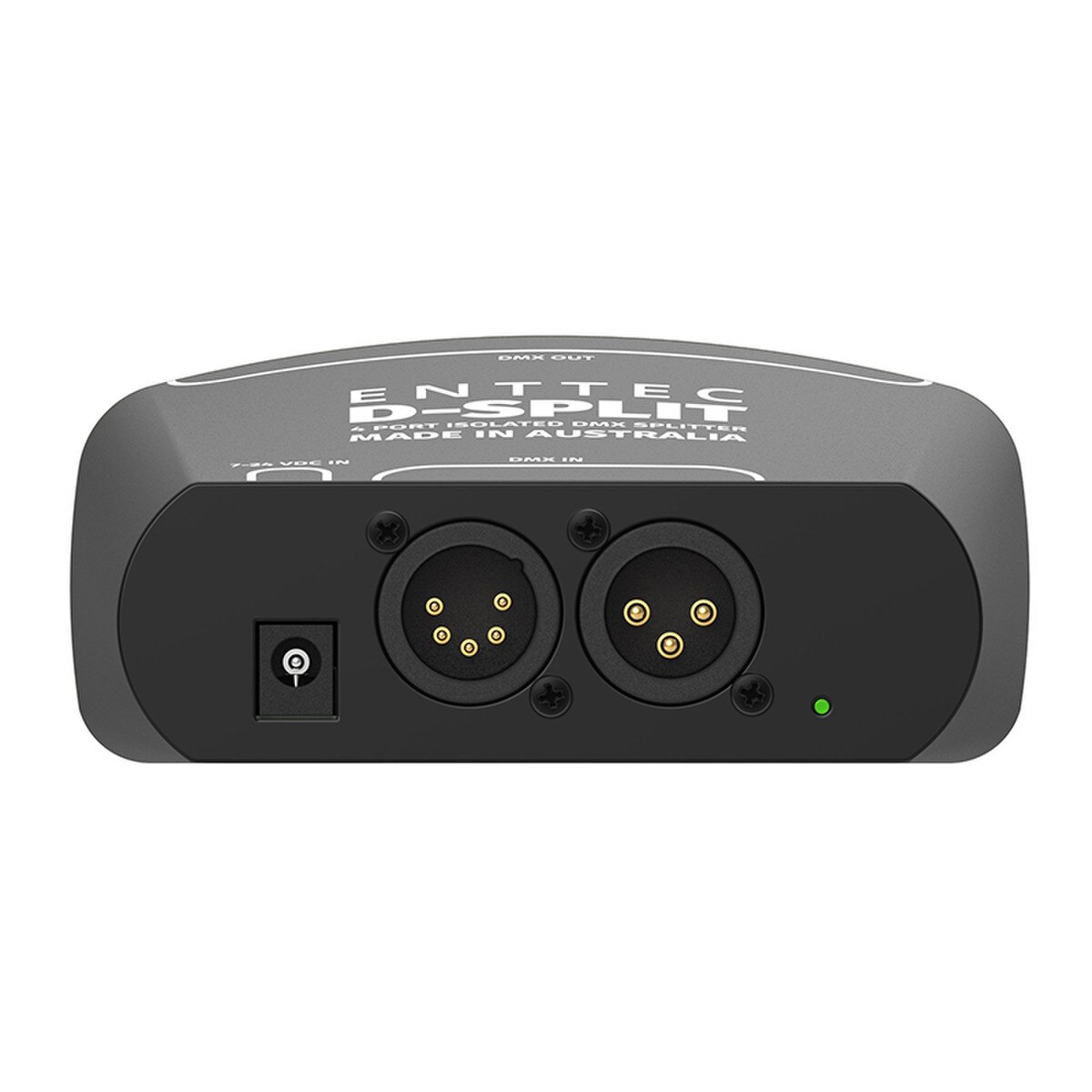

• 1 DMX input - Both SKU offer flexibility of 3-Pin and 5-Pin male connector for connection to only 1 DMX input.
• All 5 Pin DMX Outputs
• All outputs are optically isolated (protects against up to 1000V of stray voltage).
• DMX512-1990 compatible.
• Controls up to 512 channels
• Daisy chain via input ports without utilizing any output ports
• LED indicators when powered.
• External power supply (included).

Specification:

Connectors:

• Input - 1 x 5 Pin DMX, 1 x 3 Pin DMX

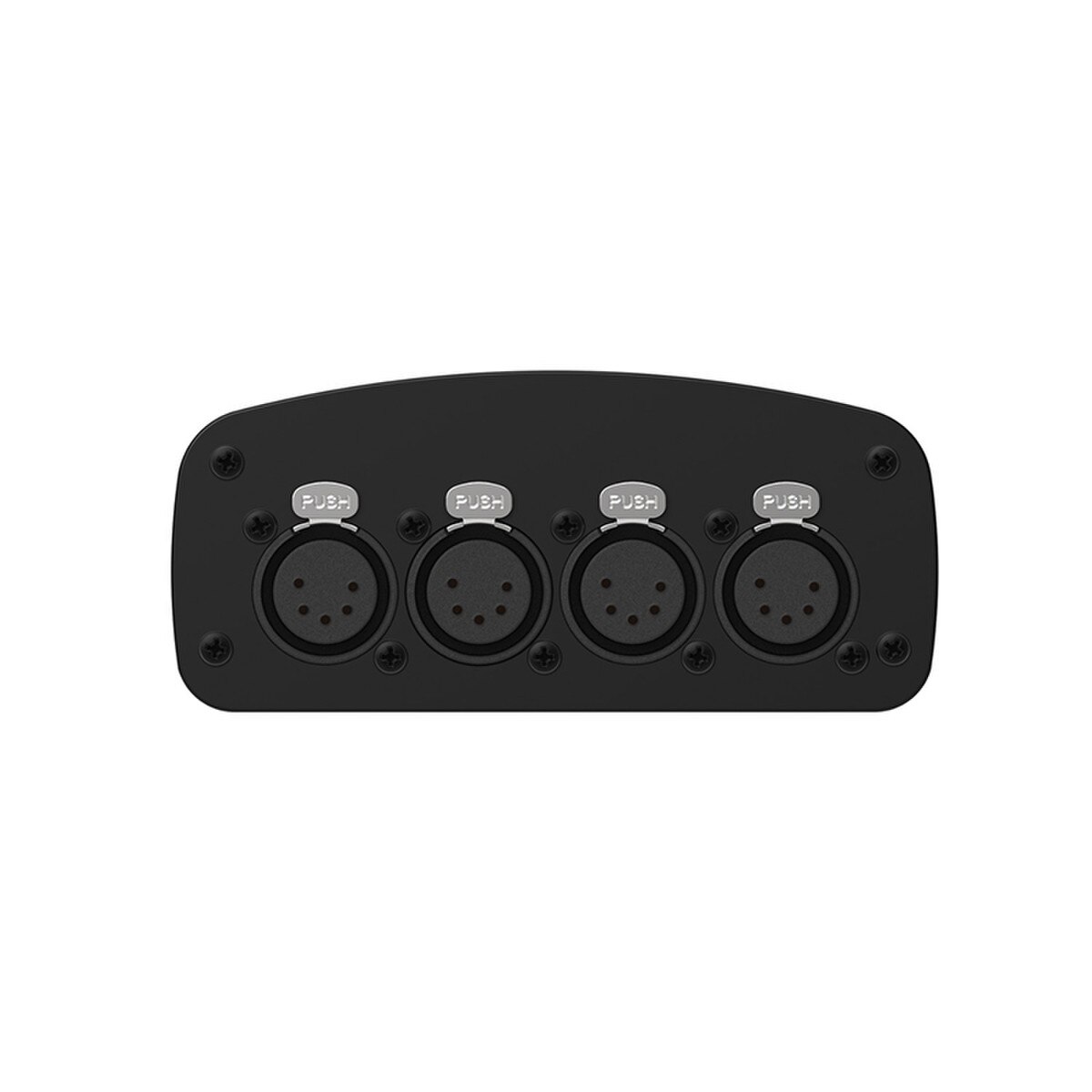

• Output - 4 x 5 Pin DMX

IP Rating:

• IP20

LED Indicators:

• Power and Data Output

Input Protocol:

• USITT DMX512-1990

Output Protocol:

• USITT DMX512-1990

RDM Compatibility:

• No

Max Channel:

• 512 channels (1 Universe)

Input Voltage:

• 7V-24VDC

Maximum Current:

• 400mA

Environmental Operating Temperature:

• 0°C to 50°C
• 32°F to 122°F

Environmental Operating Humidity:

• 5-95% (non condensing)

Body Material:

• ABS plastic

Unit Dimensions:

• 116 x 87 x 52 mm

Unit Weight:

• 0.16kg / 0.35lbs

Shipping Dimensions:

• 235 x 160 x 68mm

Shipping Weight:

• 0.5kg / 1.10lbs

Warranty:

• 1 year return to base manufacturer warranty

Box Contents:

• D-split
• Power supply with UK / EU / S / AU adaptor

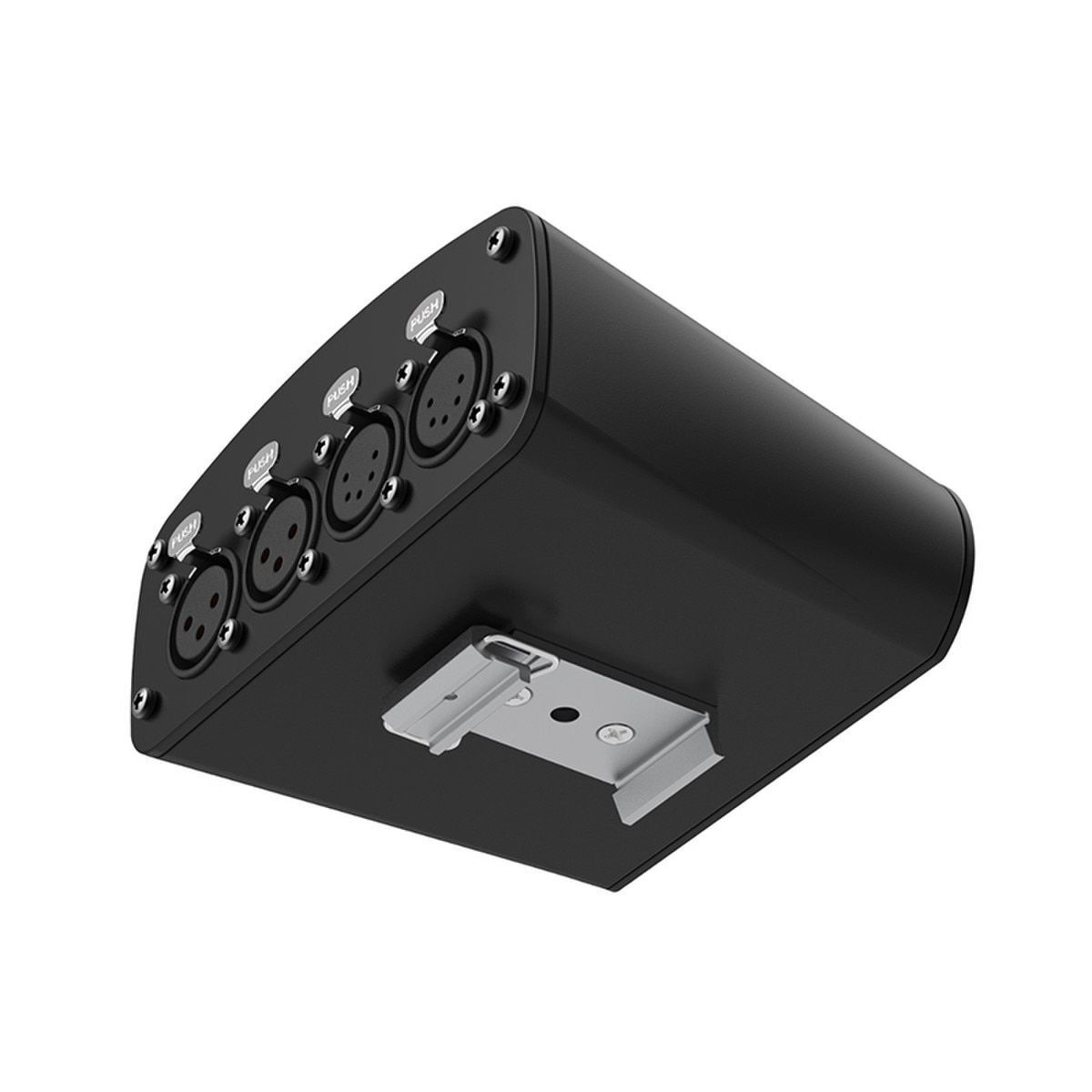

• TS35 DIN clip & 2 x mounting screws

Safety:

• This unit is intended for indoor use only. Do not expose to rain or moisture, doing this will void the warranty.
• Make all the connections before you plug in the mains power.
• Do not open the unit, there are no serviceable parts inside.
• Never plug this unit into a dimmer pack.
